30KW Weichai Power Diesel Generator Equipment Parameters:

Yangchai 30KW diesel generator technical parameters
1. Unit model: GF-30
2. Unit power: 30KW
3. Generator model: STF-30
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): ≤216±3%
9. Output current (A): 54
10. Number of phases/number of lines: three-phase four-wire
11. Noise LP7m: 95db
12. Dimensions (mm): 1800*750*820
13. Weight: 420Kg
2. Yangchai WP2.3D40E200 diesel engine technical parameters (30KW)
1. Diesel engine model: WP2.3D40E200
2. Standby power (KW): 40
3. Manufacturer: Weichai Power Yangzhou Diesel Engine Co., Ltd.
4. Cooling start: Closed water cooling
5. Starting method: 12V DC start
6. Number of cylinders: 4
7. Number of valves: 8
8. Total cylinder displacement L: 2.289
9. Intake method: Supercharged
10. Fuel supply method: Direct injection
11. Cylinder arrangement: Vertical
12. Intercooling method: Water intercooling
13. Fuel model: Domestic 0# light diesel
14. Speed regulation method: Mechanical speed regulation
15. Engine coolant capacity: 5L
16. Oil pan capacity: 8L
17. Engine oil fuel consumption: ≤0.1%
18. Engine oil model: WD/40
19. Cylinder diameter/stroke: 89/92mm
20. Weight: 230±50Kg

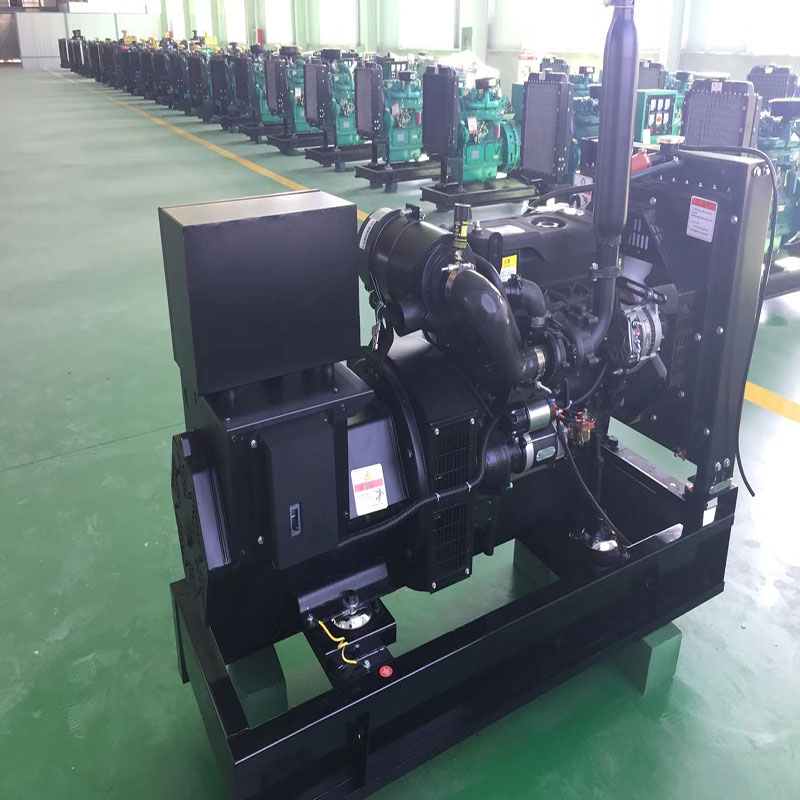

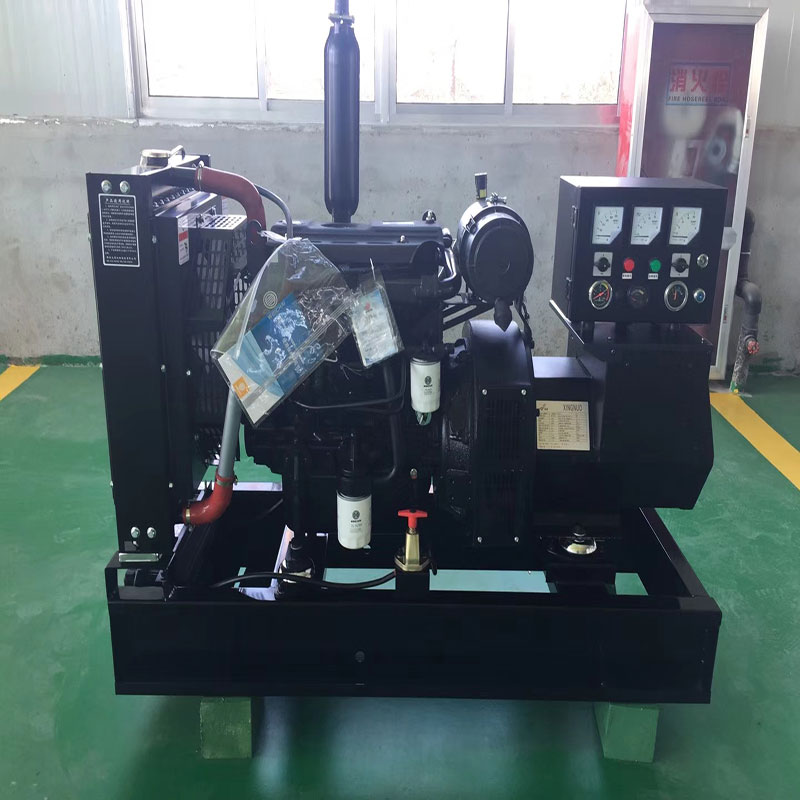

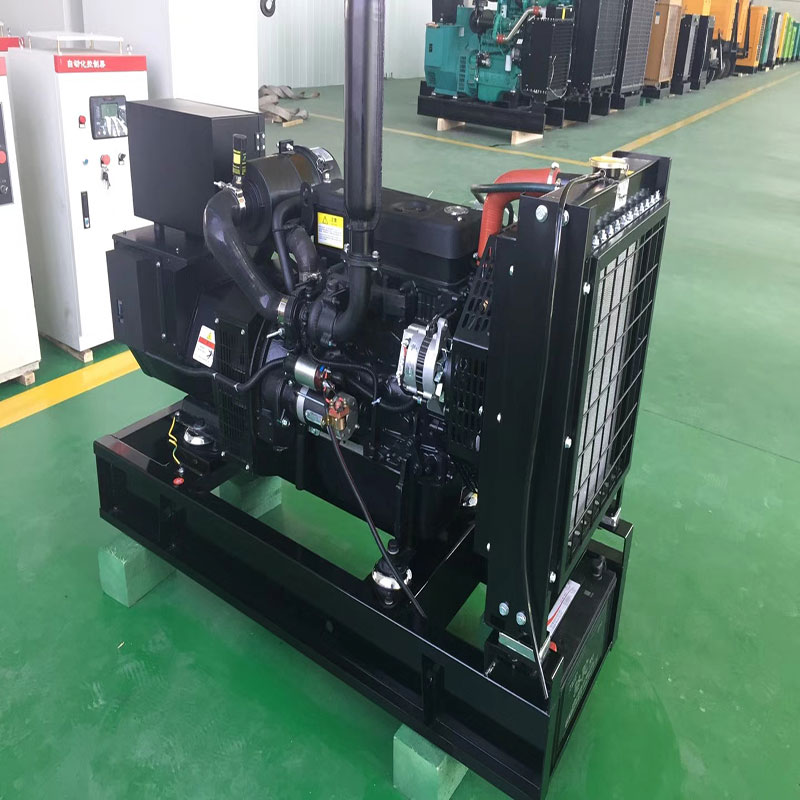

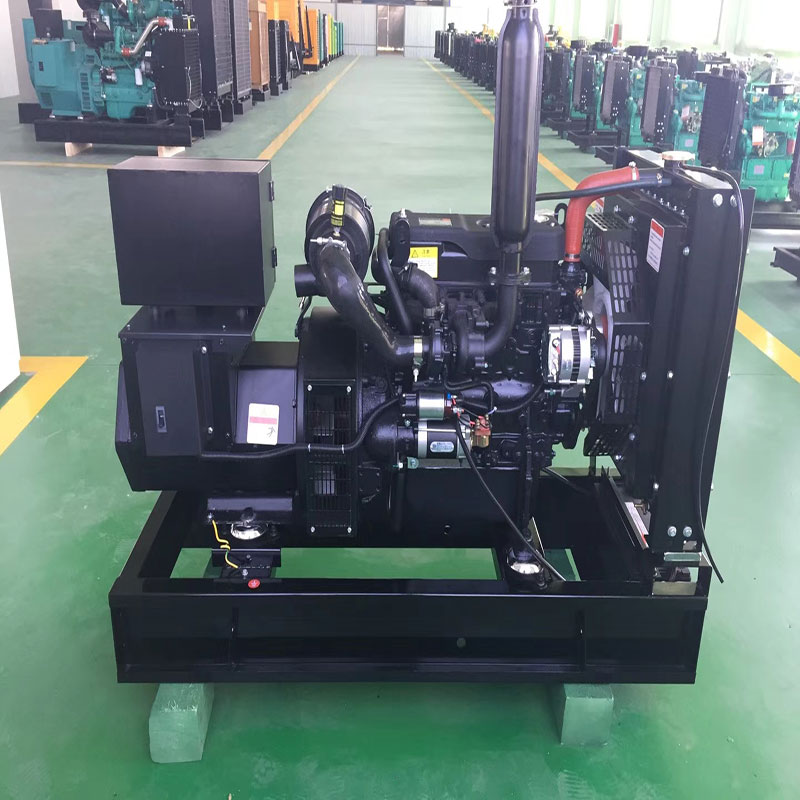

30KW Weichai Power Diesel Generator Set Equipment Pictures
