30KW Weichai diesel generator set

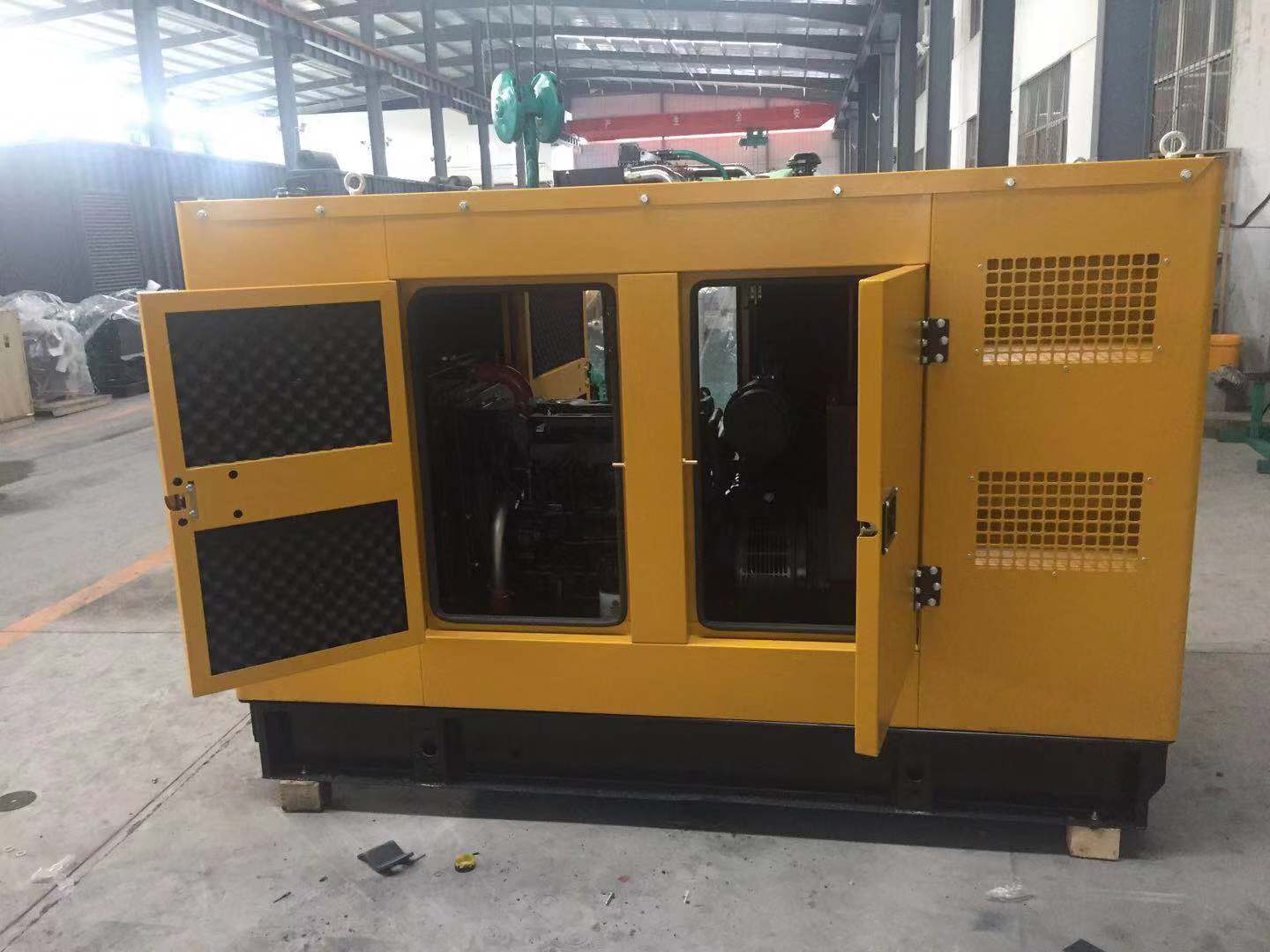

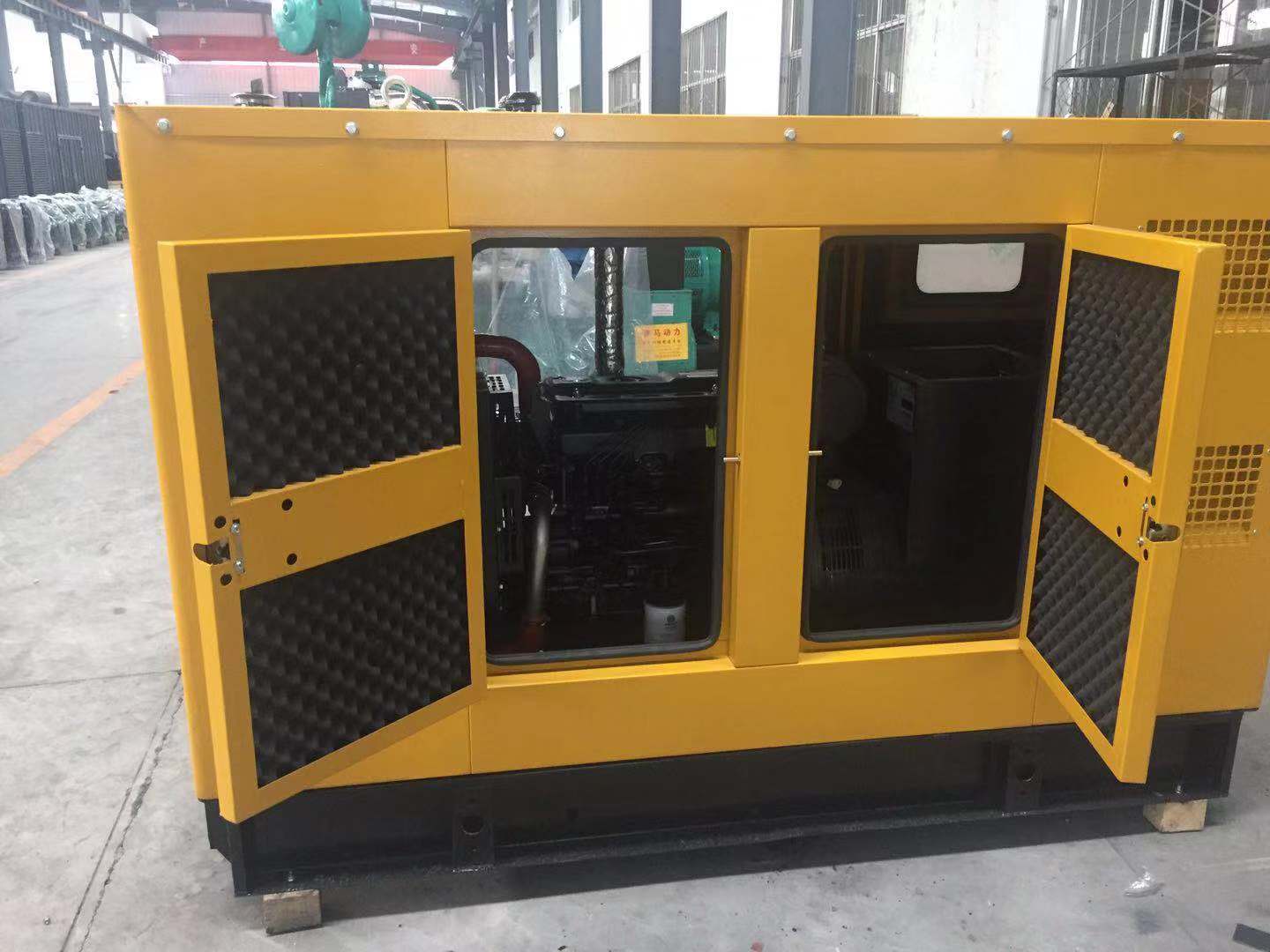

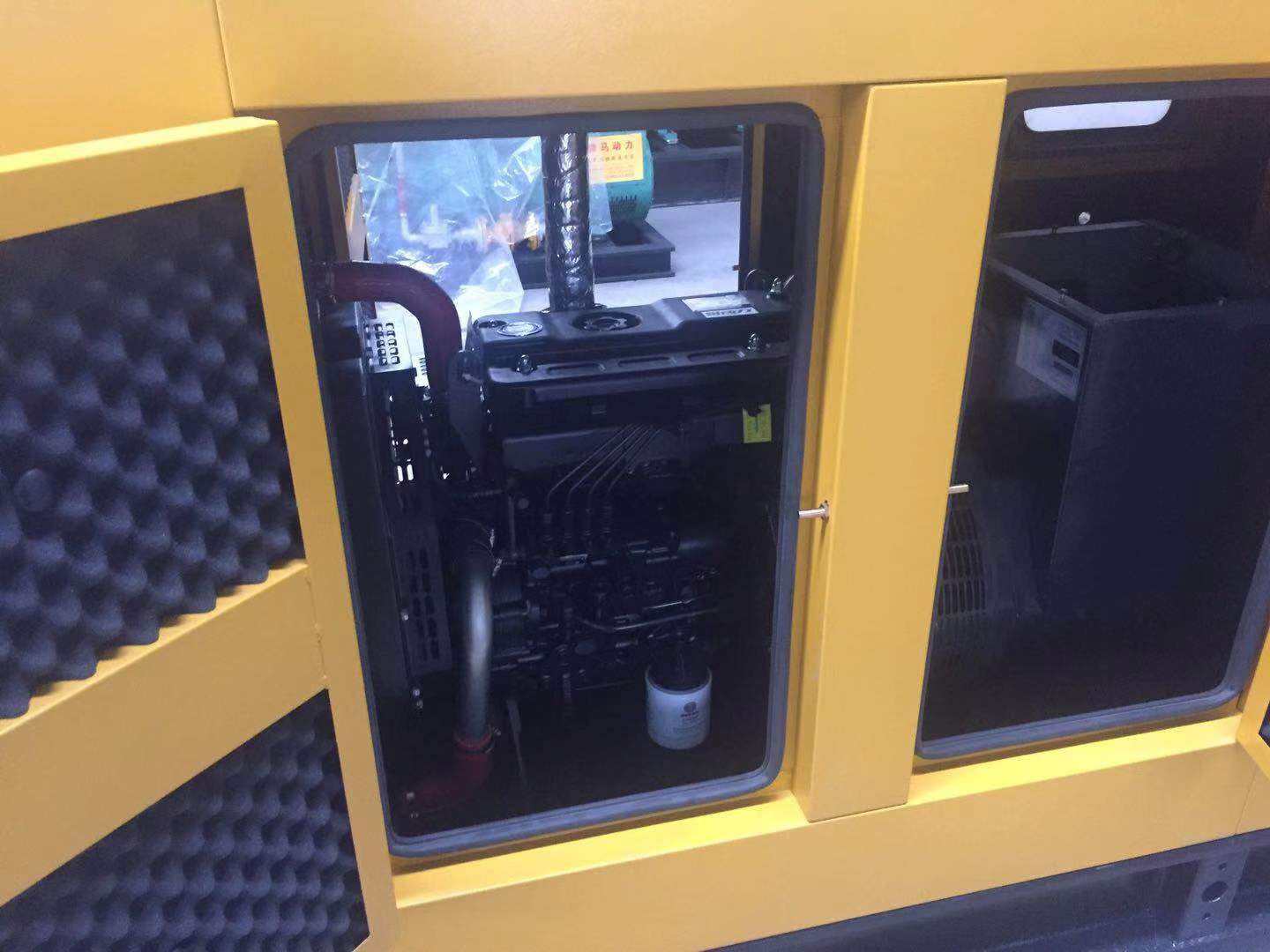

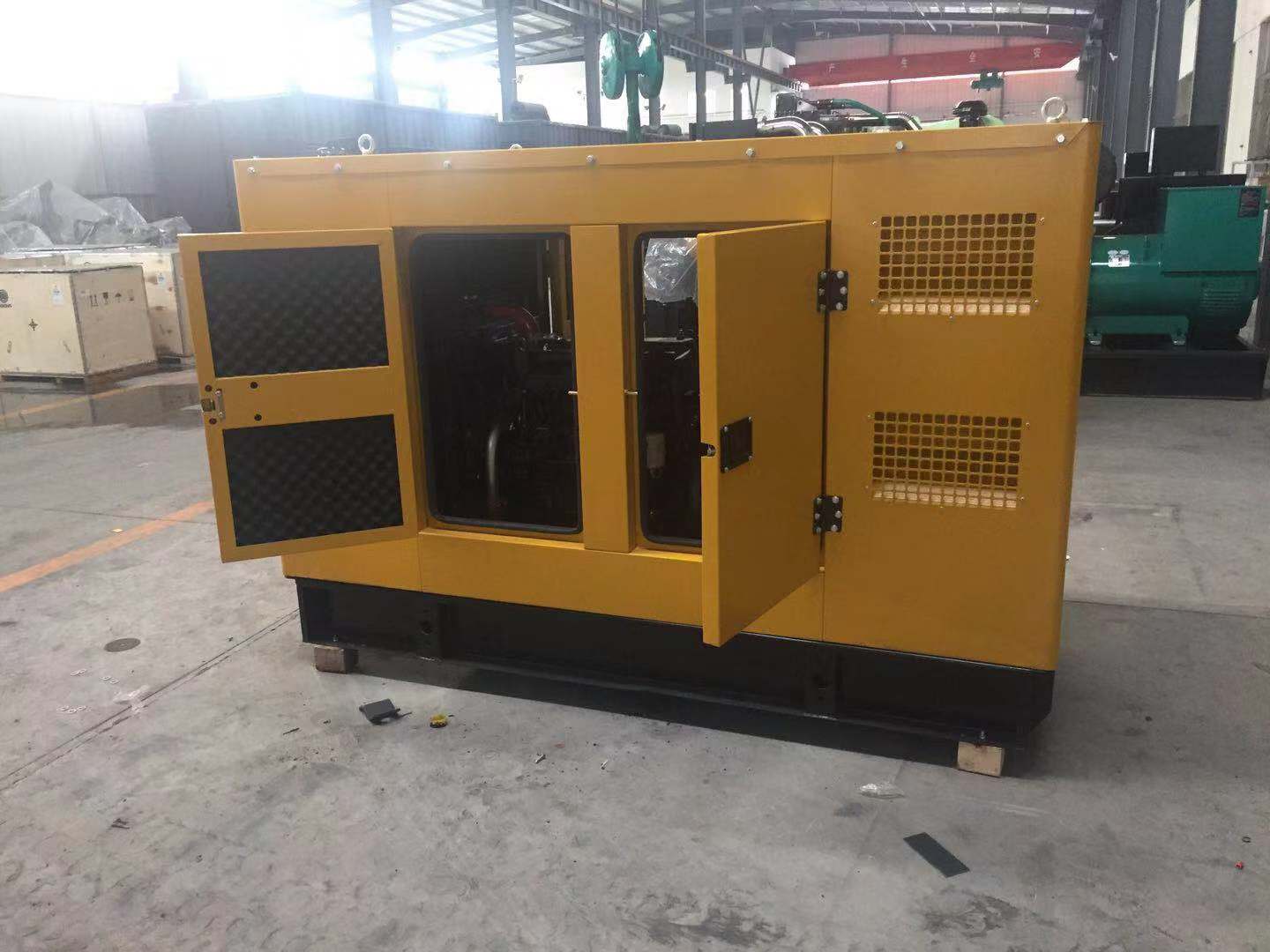

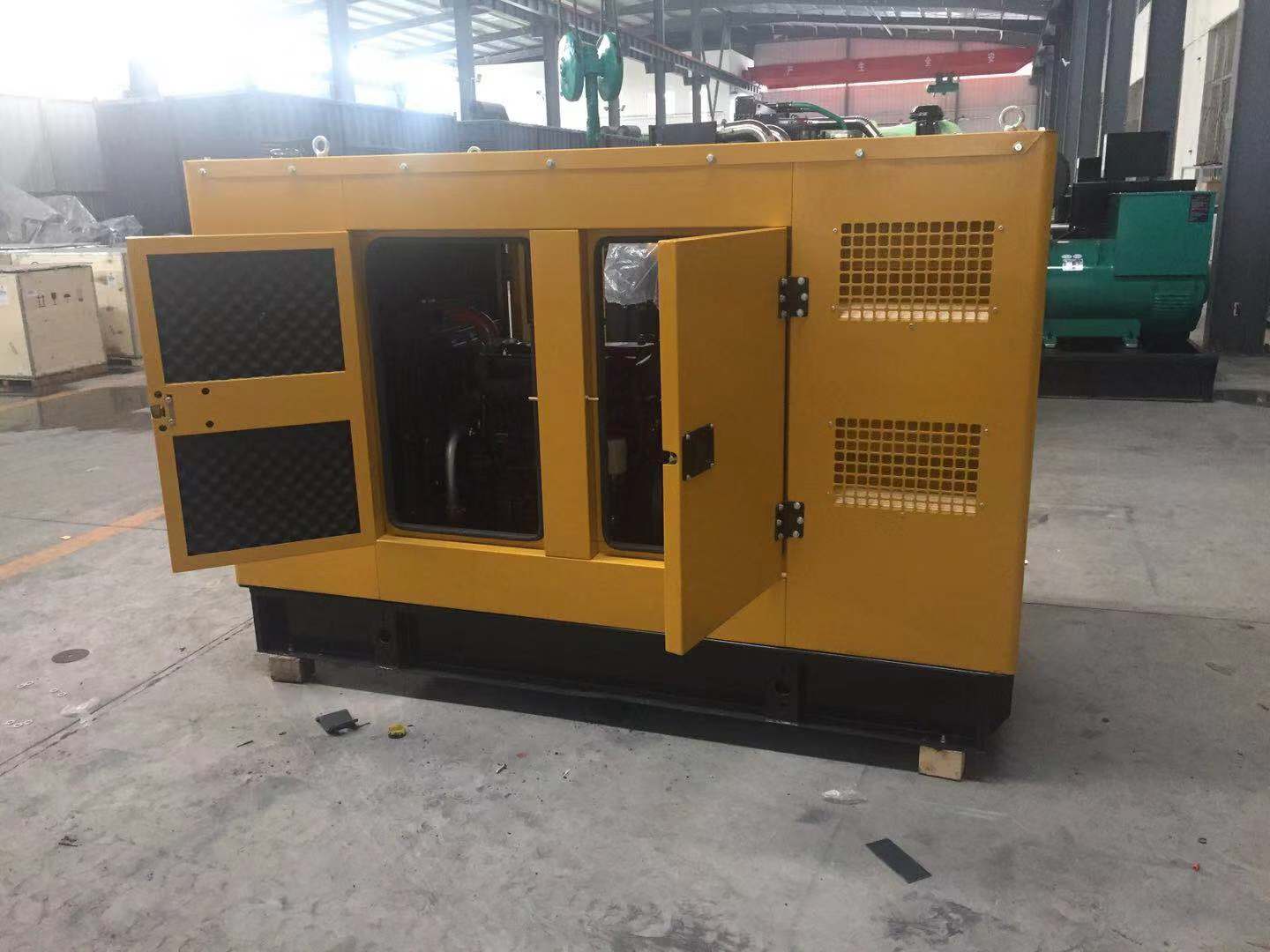

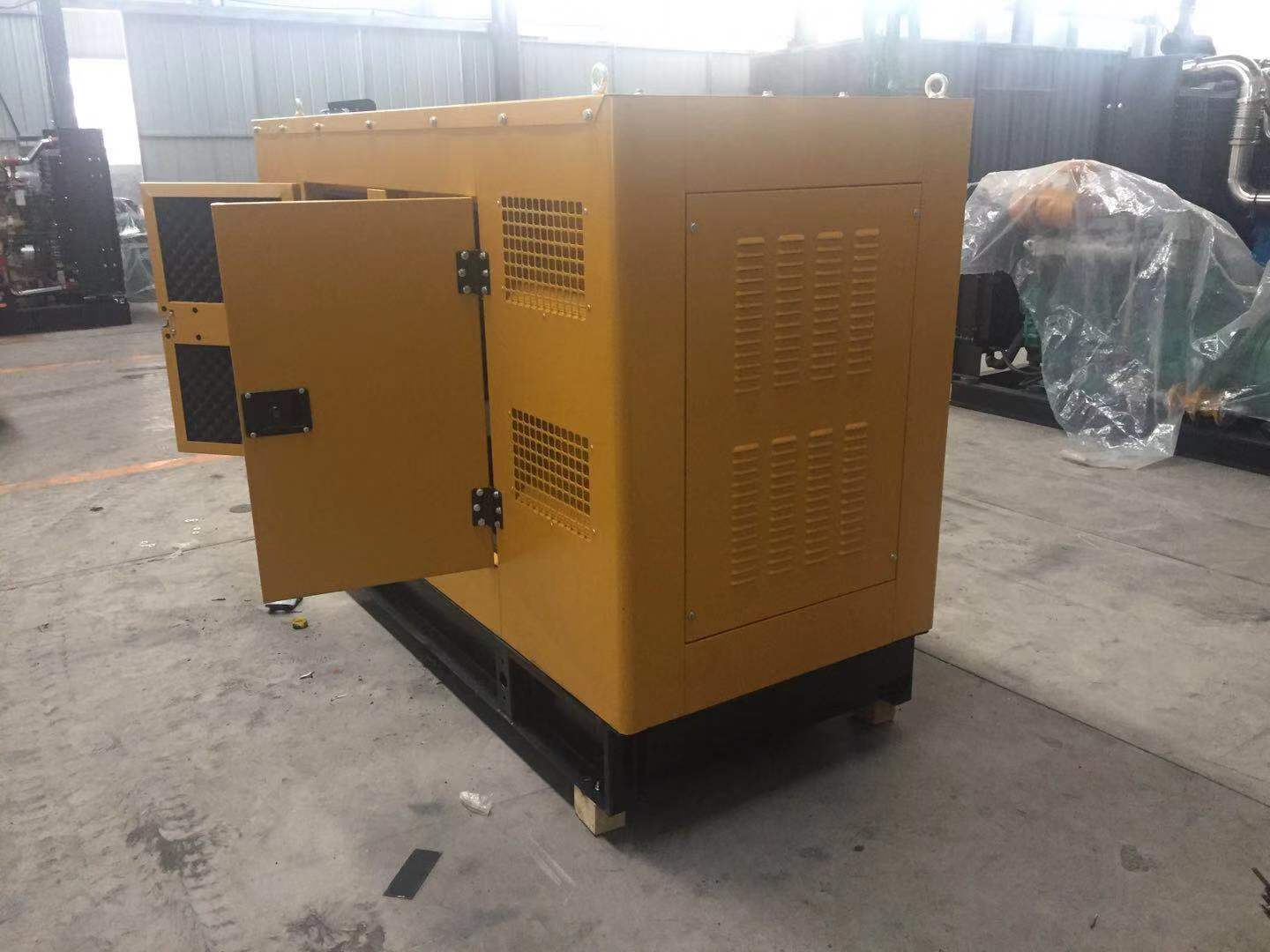

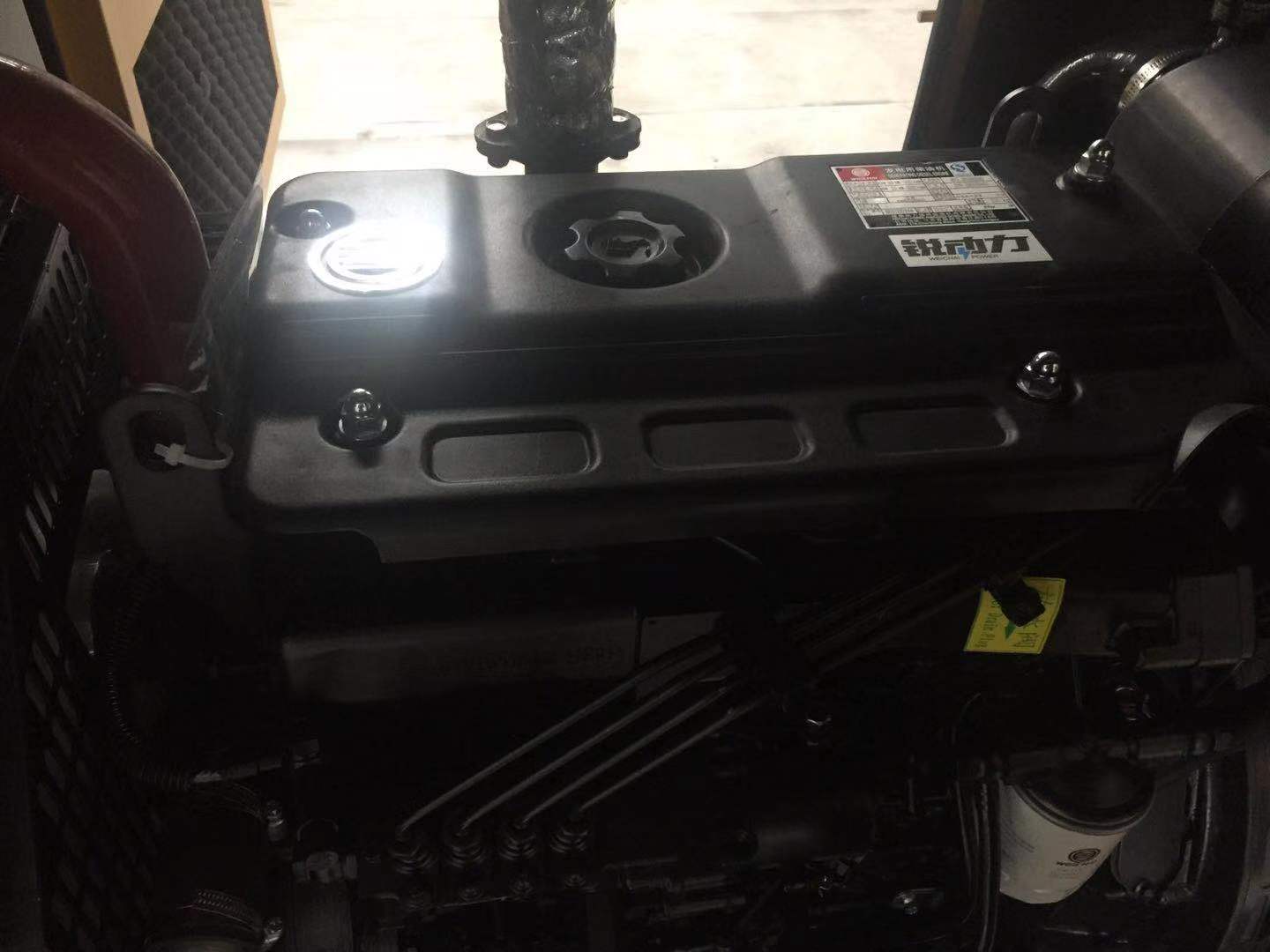

30KW Weichai diesel generator set equipment pictures:
30KW Weichai diesel generator set equipment parameters:
Diesel generator set data | |||
model | BM30 GF | ||
Rated output power (KVA/KW) | 37.5/30 | Rated output current(A) | 54 |
Wiring method | Three-phase four-wire | Power Factor | 0.8 (hysteresis) |
Startup method | 24V DC start | Frequency (Hz) | 50 |
Unit weight (kg) | 750 | Unit size (length * width * height) ( mm ) | 1800*650*1100 |
Diesel engine data | |||
Manufacturer | Weichai Power Yangzhou Diesel Engine Co., Ltd. | model | WP2.3D40E200 |
Rated speed(Rpm) | 1500 | Engine power ( kW ) | 40 |
Cylinder stroke | 89*92 | Compression ratio | 17:1 |
Number of cylinders | 4 | Fuel consumption rate ( g/kwh ) | ≤225 |
Speed regulation mode | ESC | Engine oil fuel consumption ratio ( % ) | ≤ 0.1 |
Lubricant Specifications | AFI-CF4 | Air intake method | Exhaust gas turbocharger |
Engine cooling method | Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard | ||
Generator data | |||
Manufacturer | Jiangsu Lingyu Electric Co., Ltd. | model | STF-30 |
Power(KVA/KW) | 37.5/30 | Protection level | IP2 2 |
Insulation class | H | Power Factor | 0.8 lag |
