250KW Guangxi Yuchai mobile trailer diesel generator set equipment parameters:



1. Unit model: GF-250
2. Unit power: 250KW
3. Generator model: STF-250
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): ≤195
9. Output current (A): 450
10. Number of phases/wires: three-phase four-wire
11. Noise LP7m: ≤92db
12. Dimensions (mm): 3000*1050*1580
13. Weight: 2300Kg

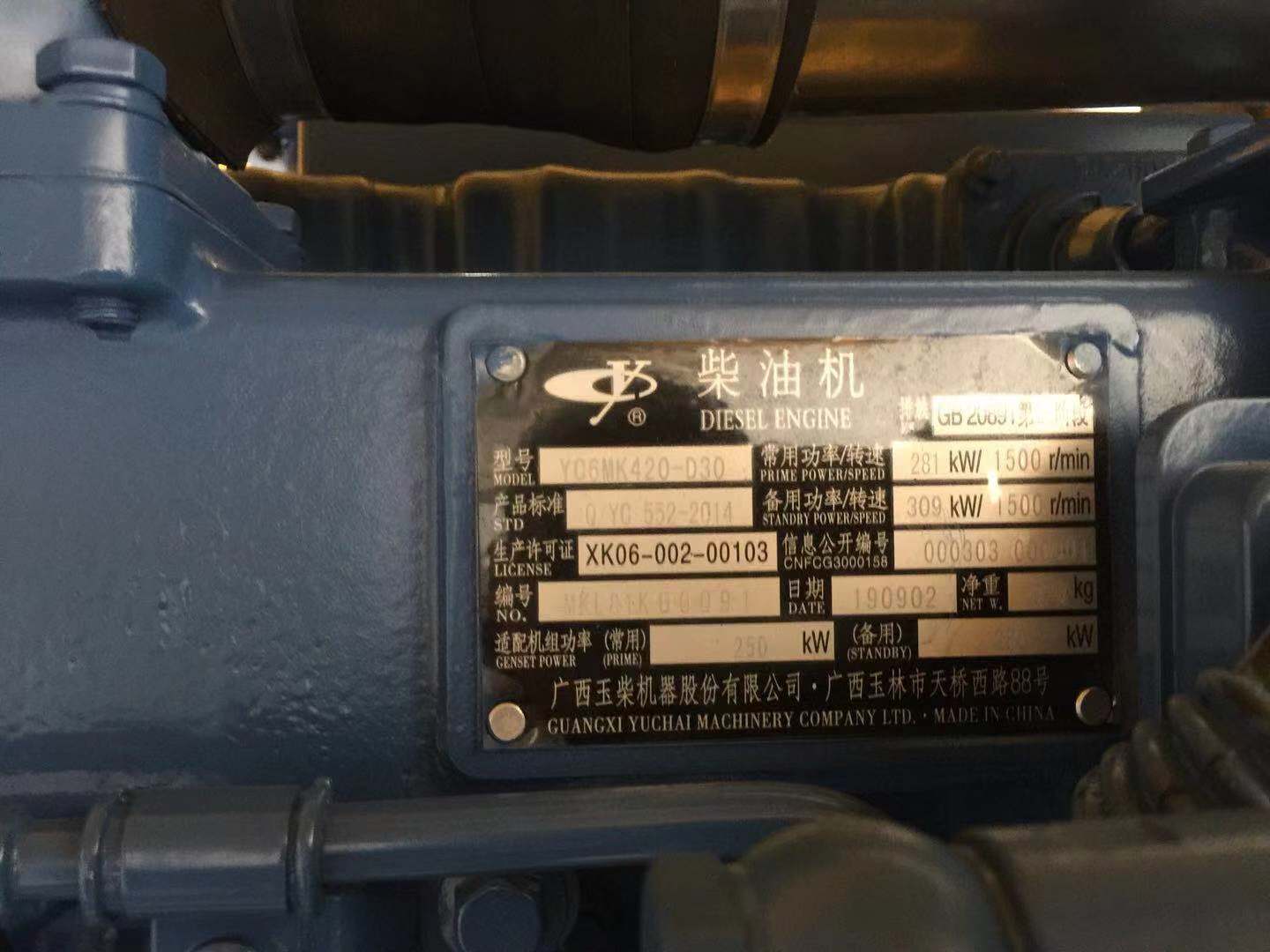

II. Technical parameters of Yuchai YC6MK420-D30 diesel engine (250KW)
1. Diesel engine model: YC6MK420-D30
2. Standby power: 309KW
3. Manufacturer: Yuchai Machinery Co., Ltd.
4. Cooling start: Closed water cooling
5. Start mode: 24V DC start
6. Air intake mode: Supercharged intercooler
7. Number of cylinders: 6
8. Cylinder diameter/stroke: 123/145mm
9. Total cylinder displacement L: 10.34
10. Fuel supply mode: Electronic injection
11. Emission standard: National III
12. Cylinder arrangement: Vertical
13. Intercooler: Water intercooler
14. Fuel model: Domestic 0# light diesel
15. Speed control mode: Electronically controlled high-pressure common rail
16. Engine oil model: WD/40

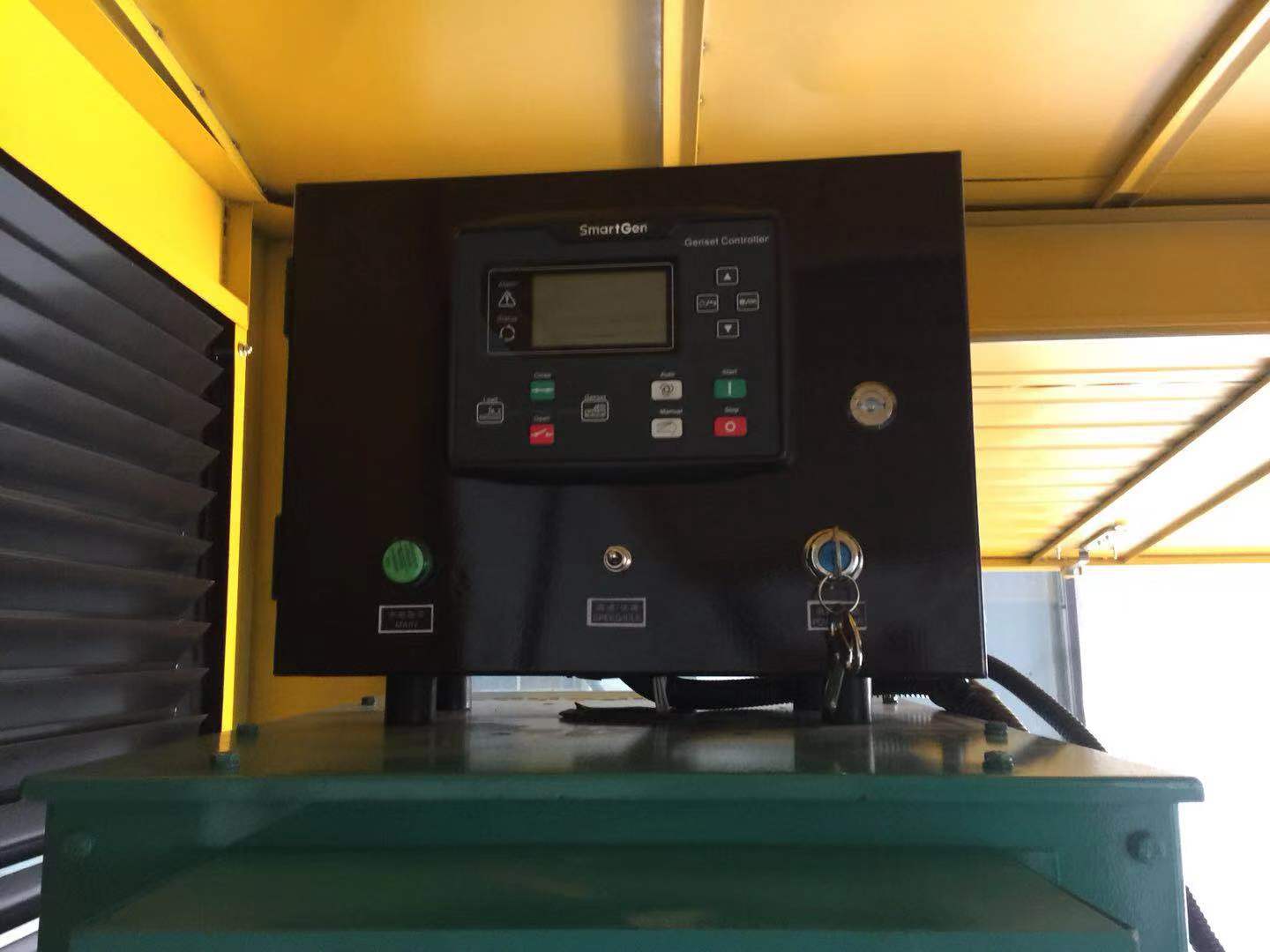

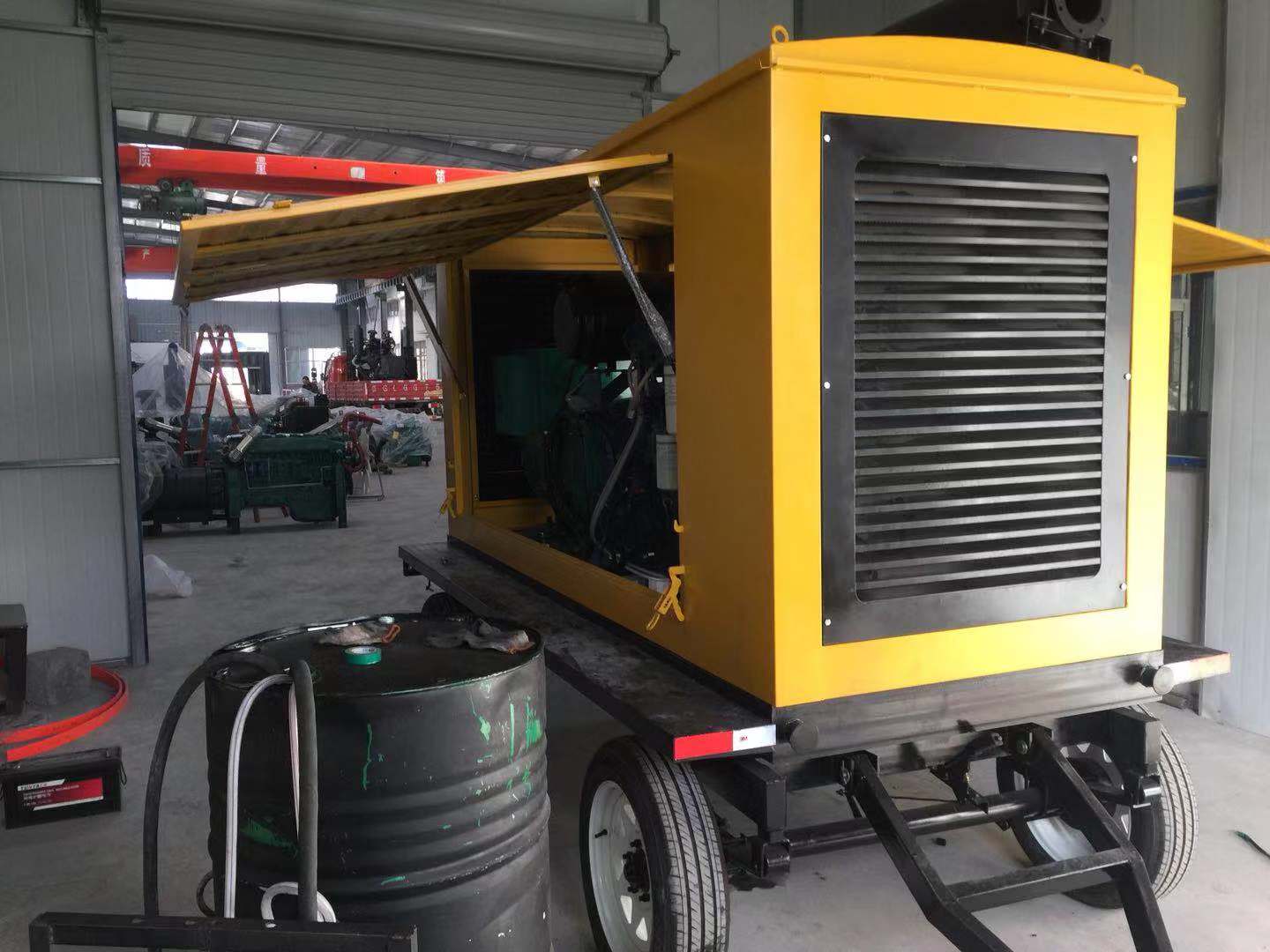

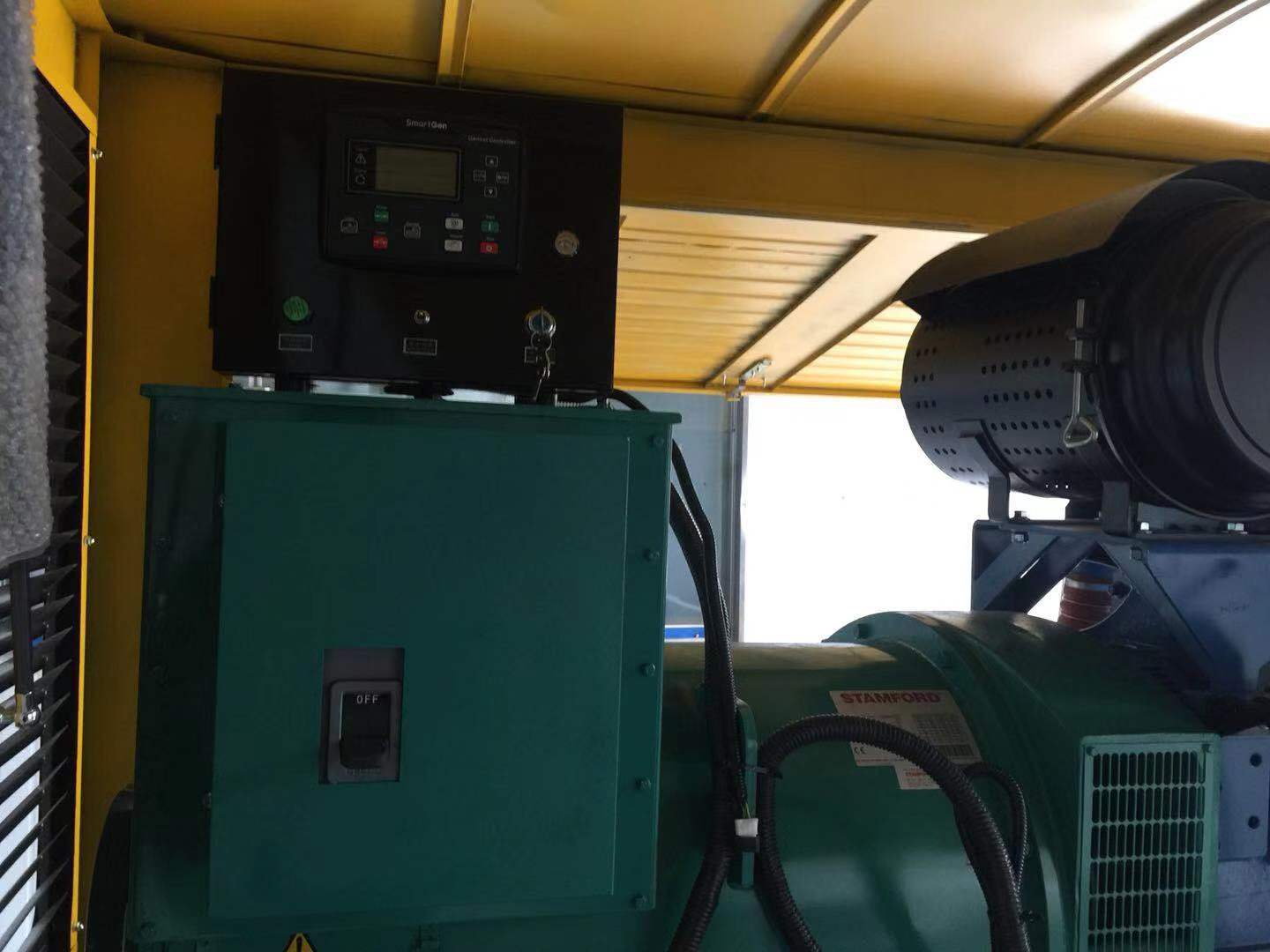

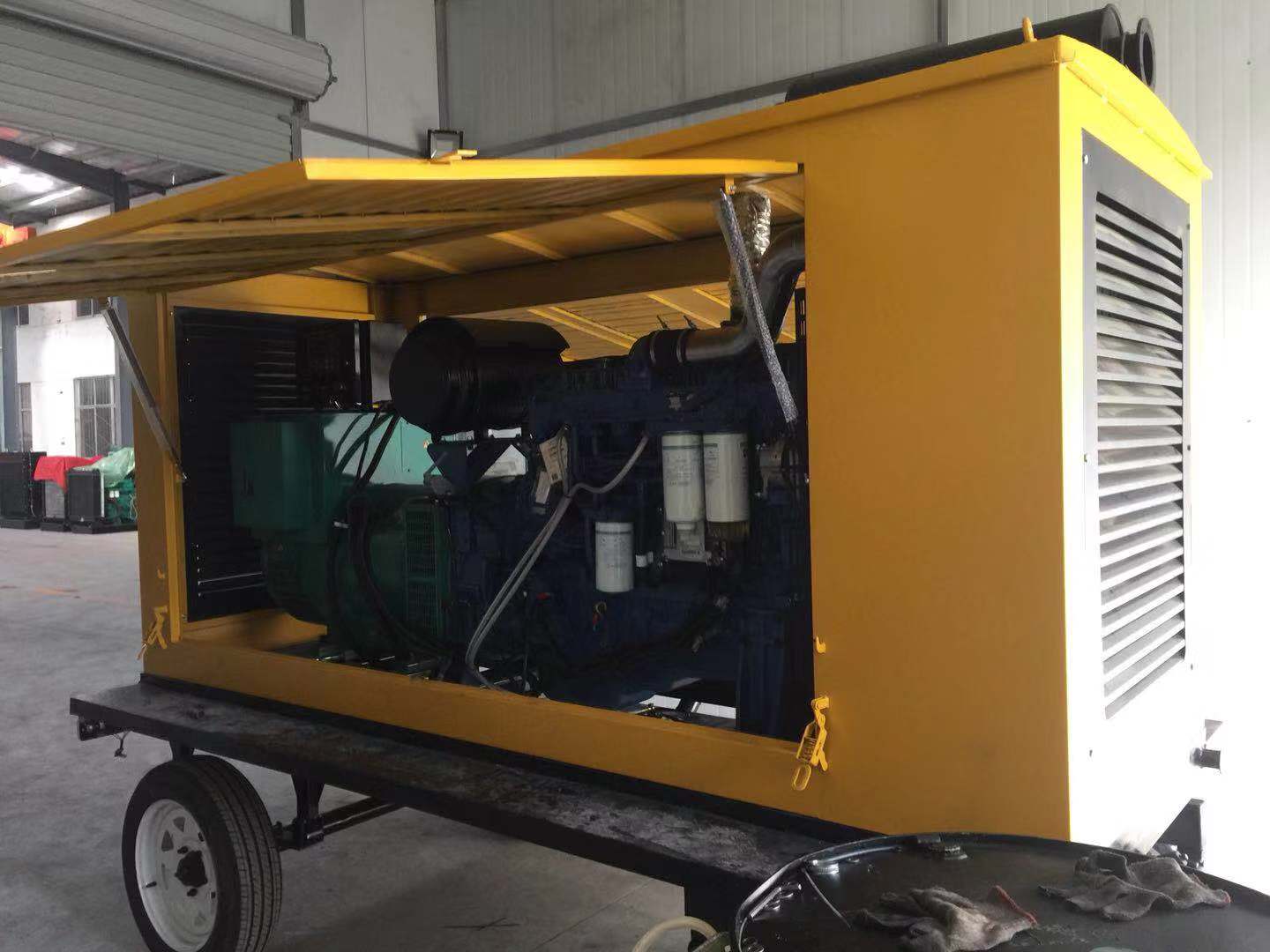

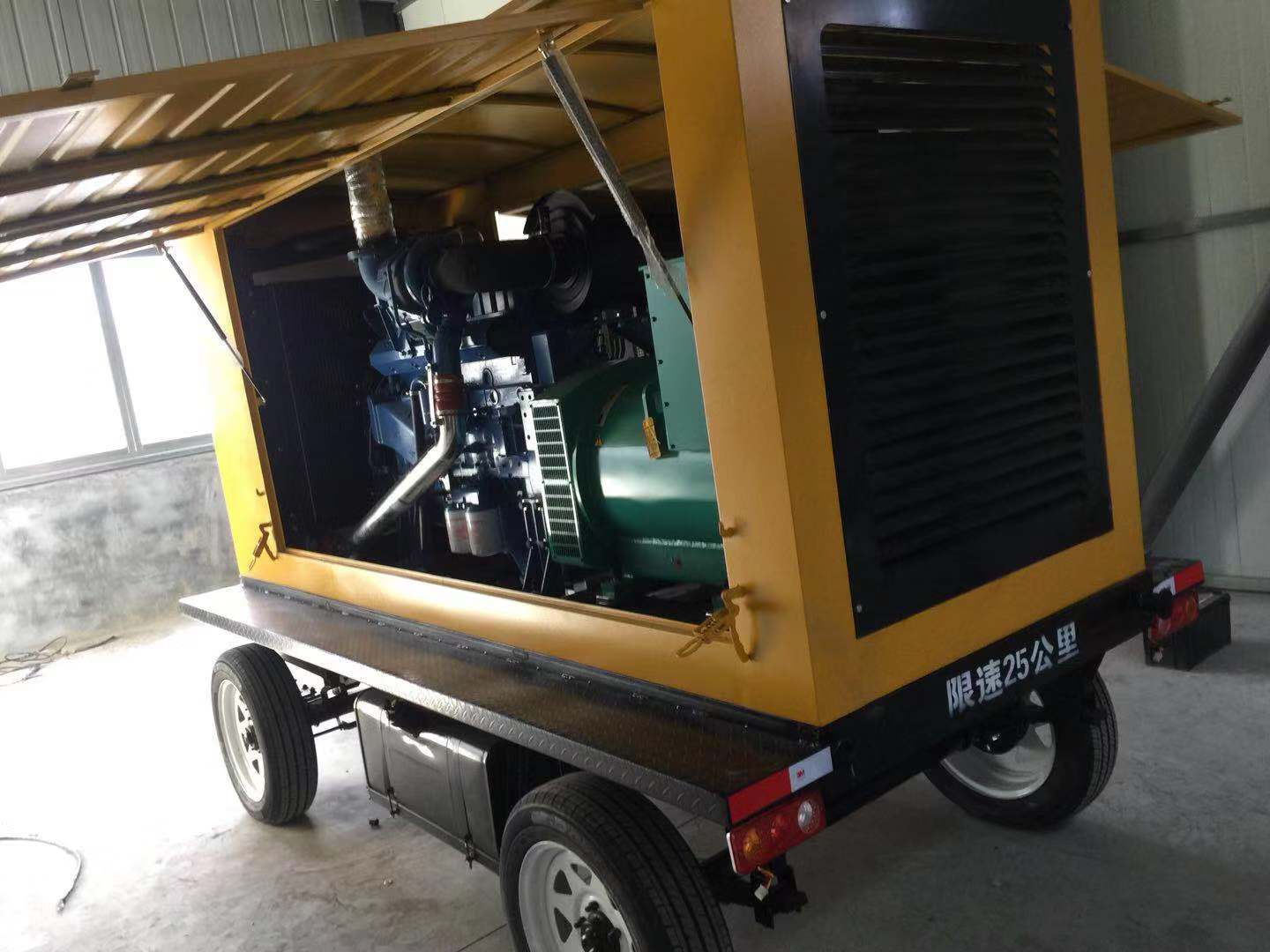

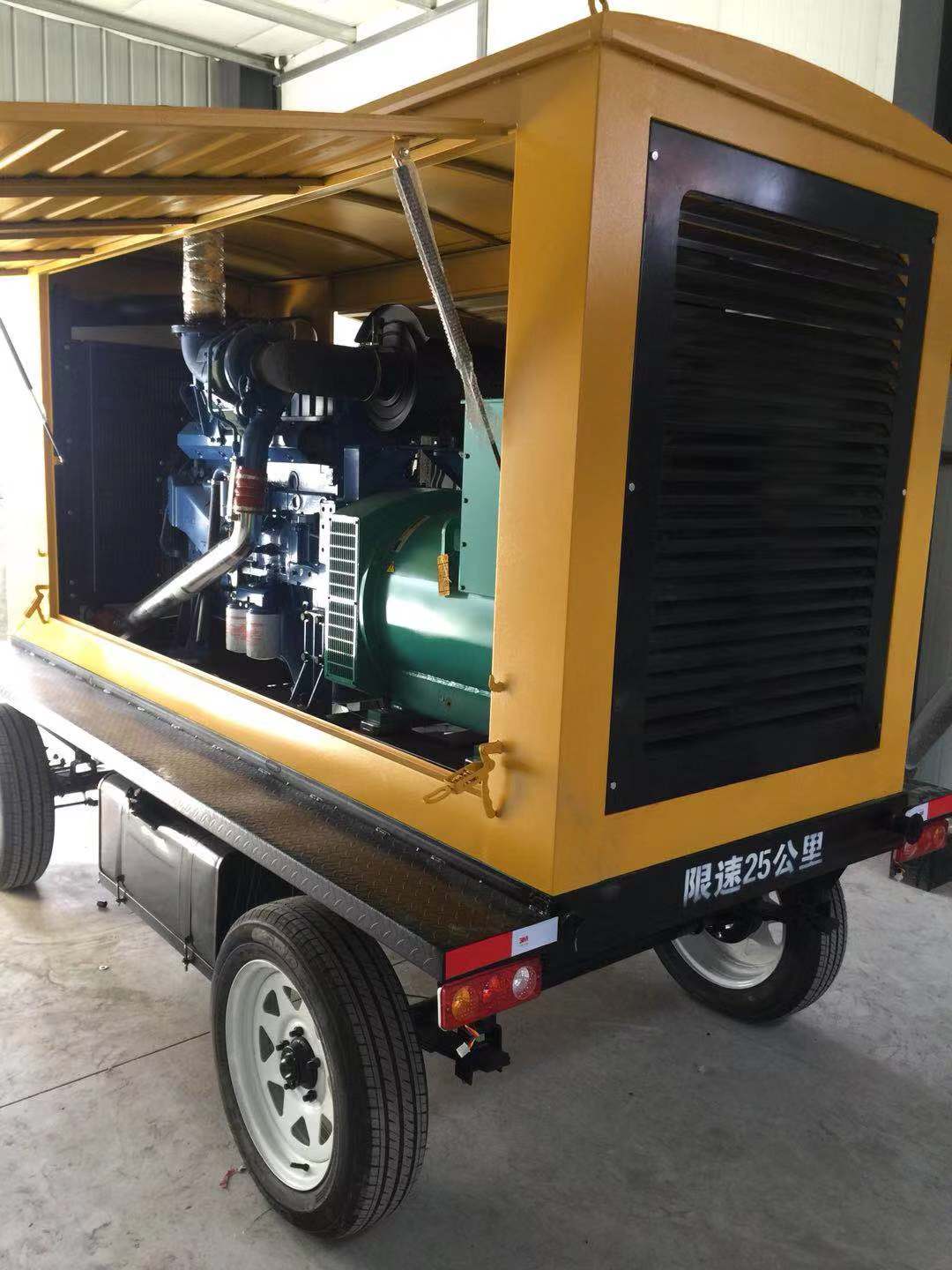

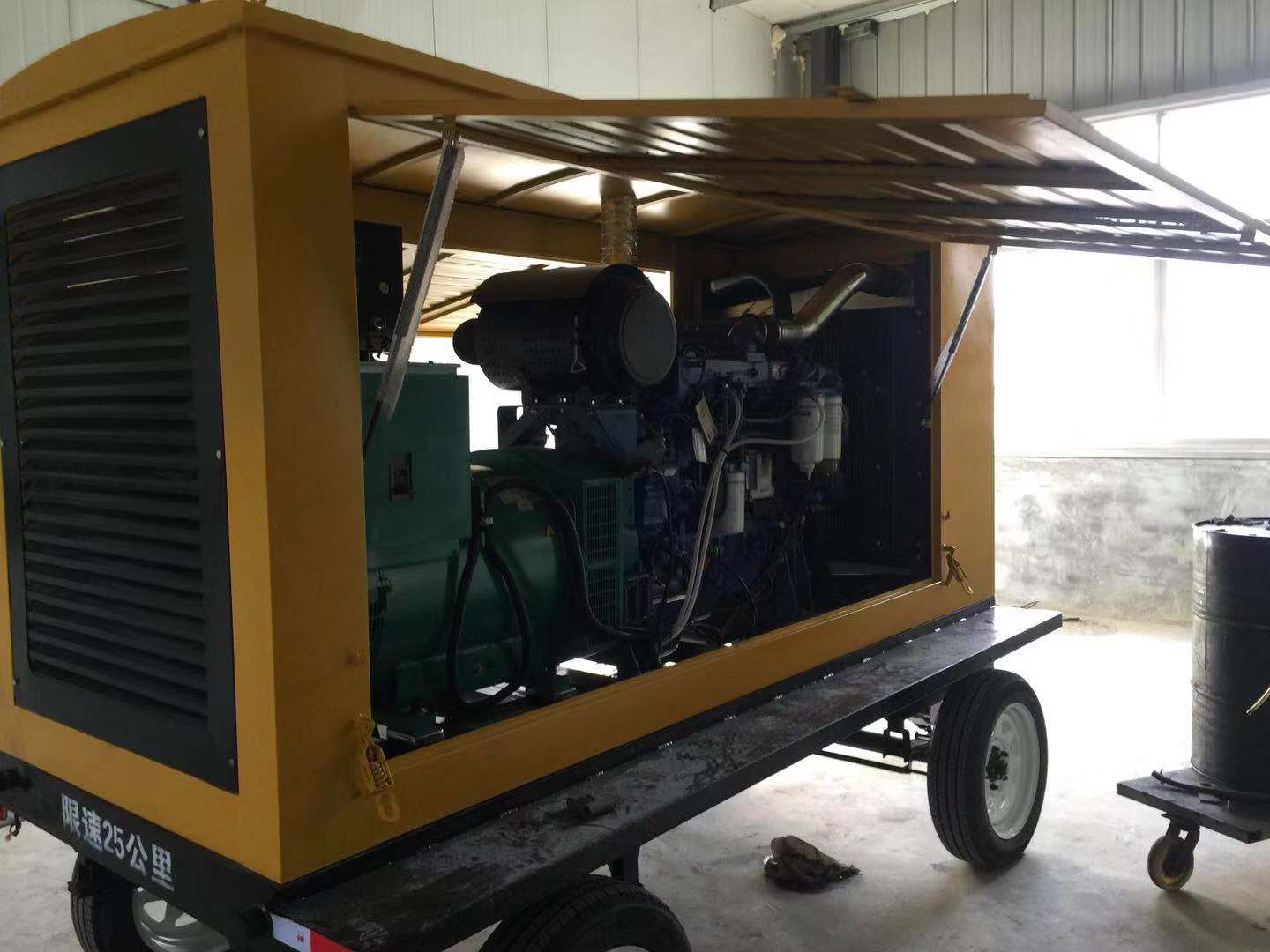

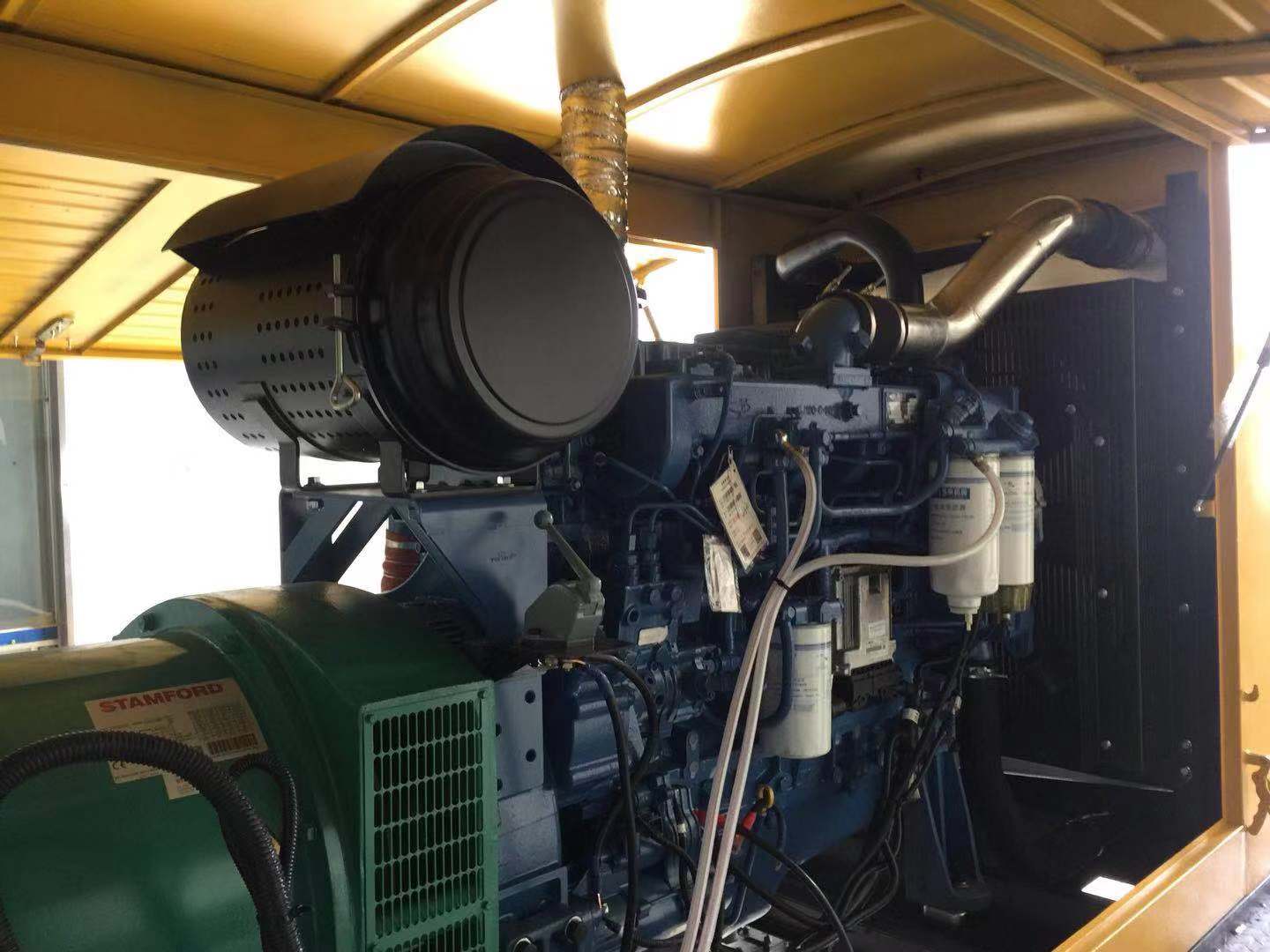

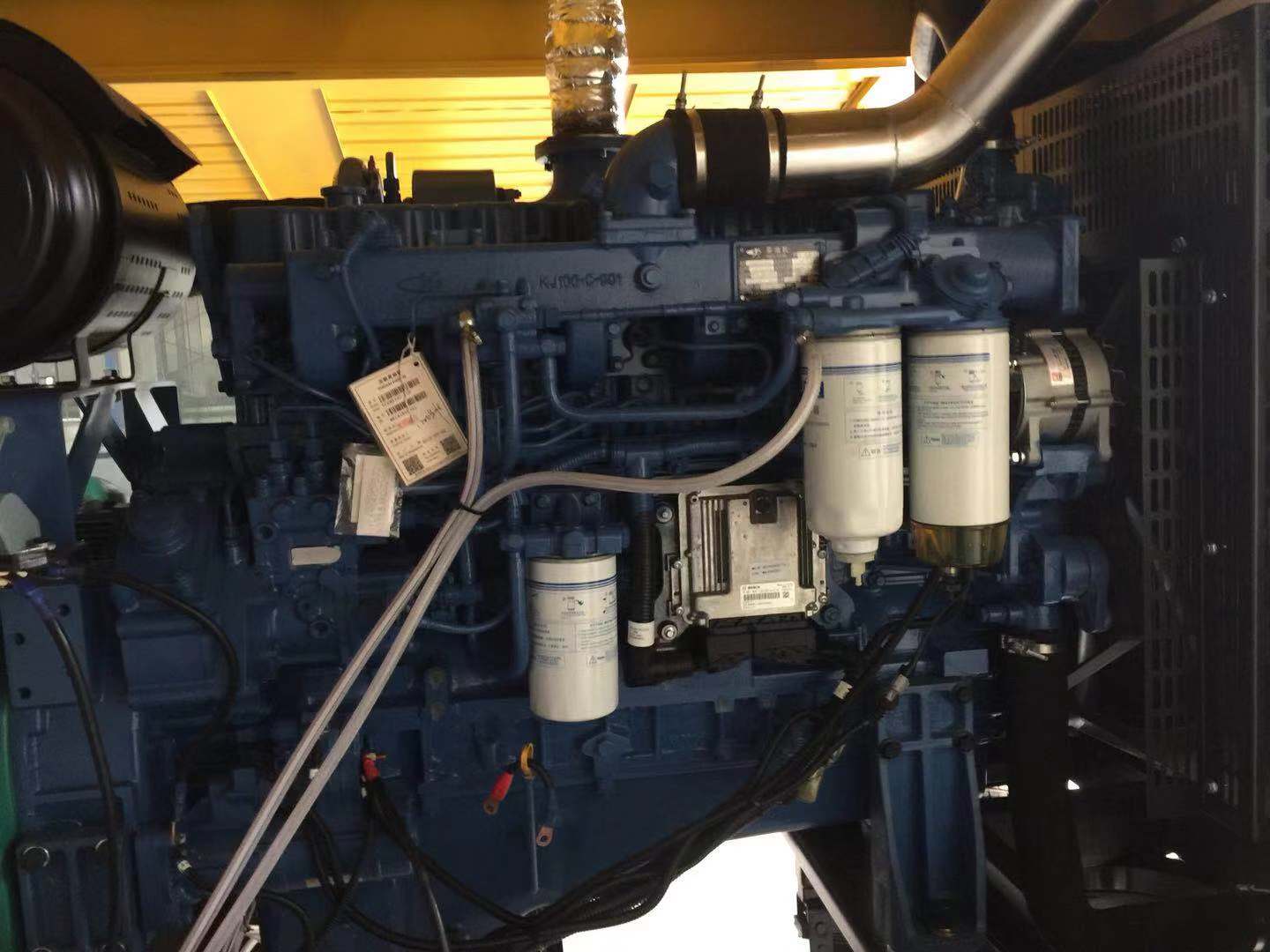

250KW Guangxi Yuchai diesel generator set equipment pictures:
