50KW Weichai diesel generator set

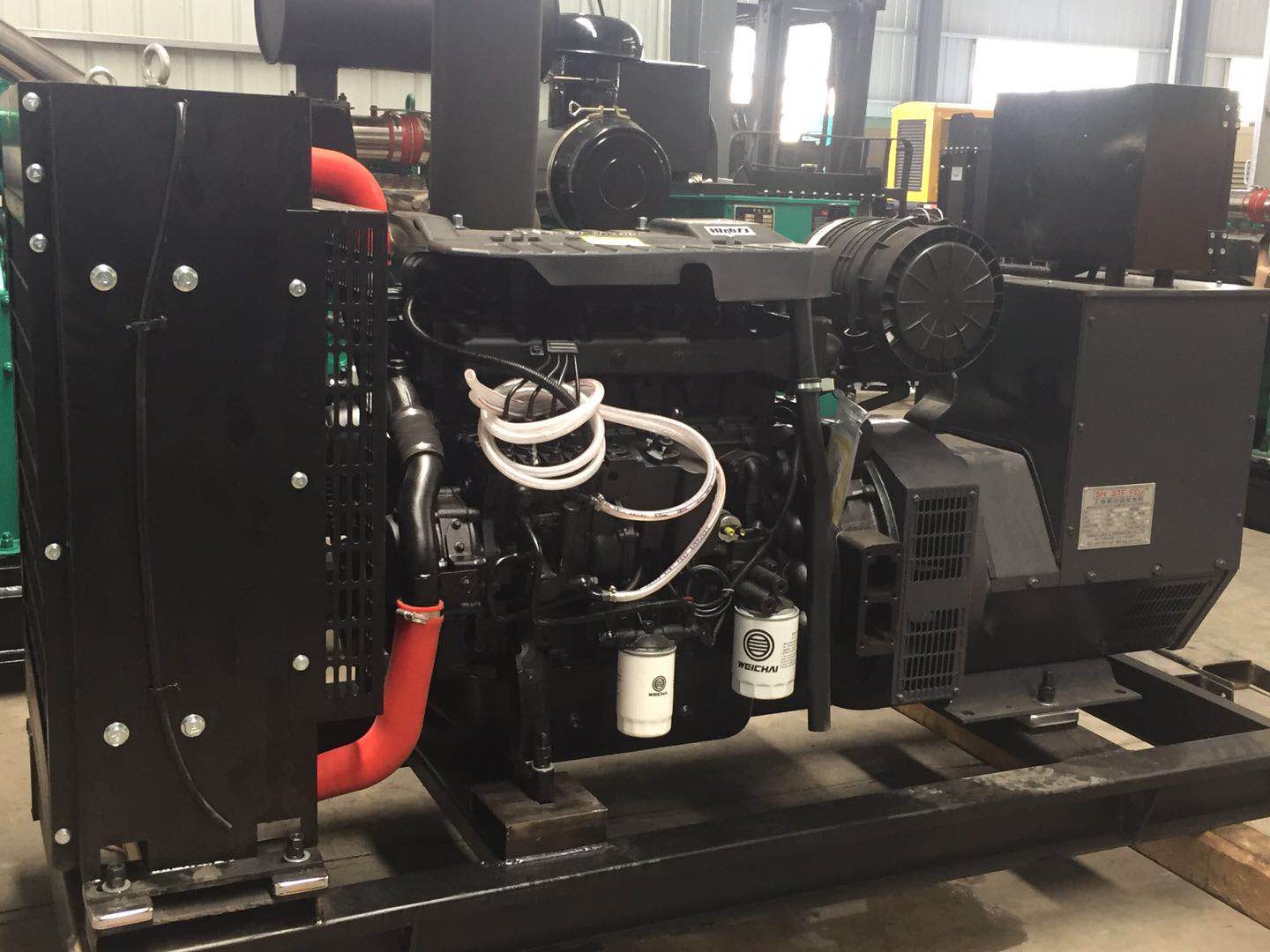

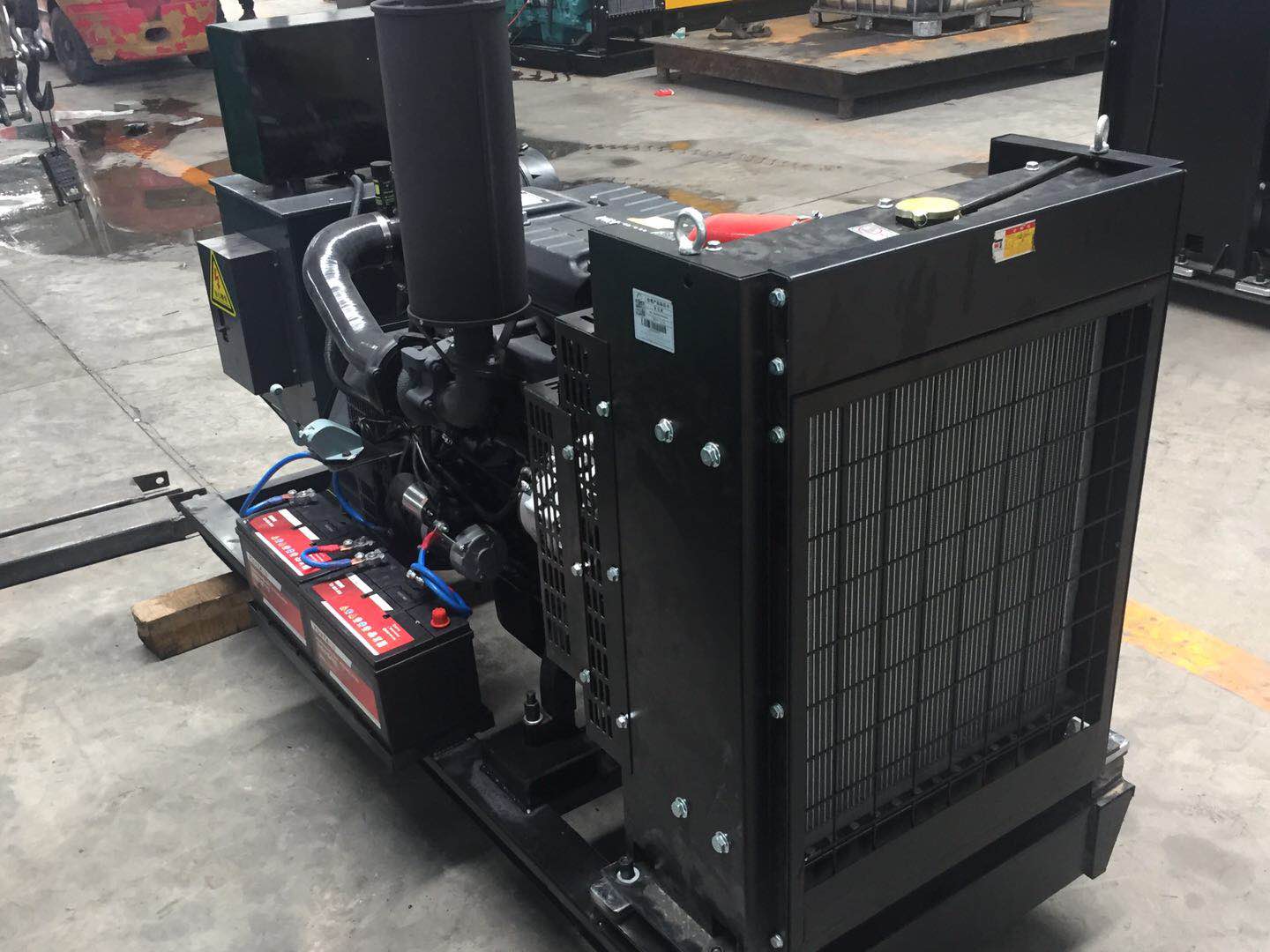

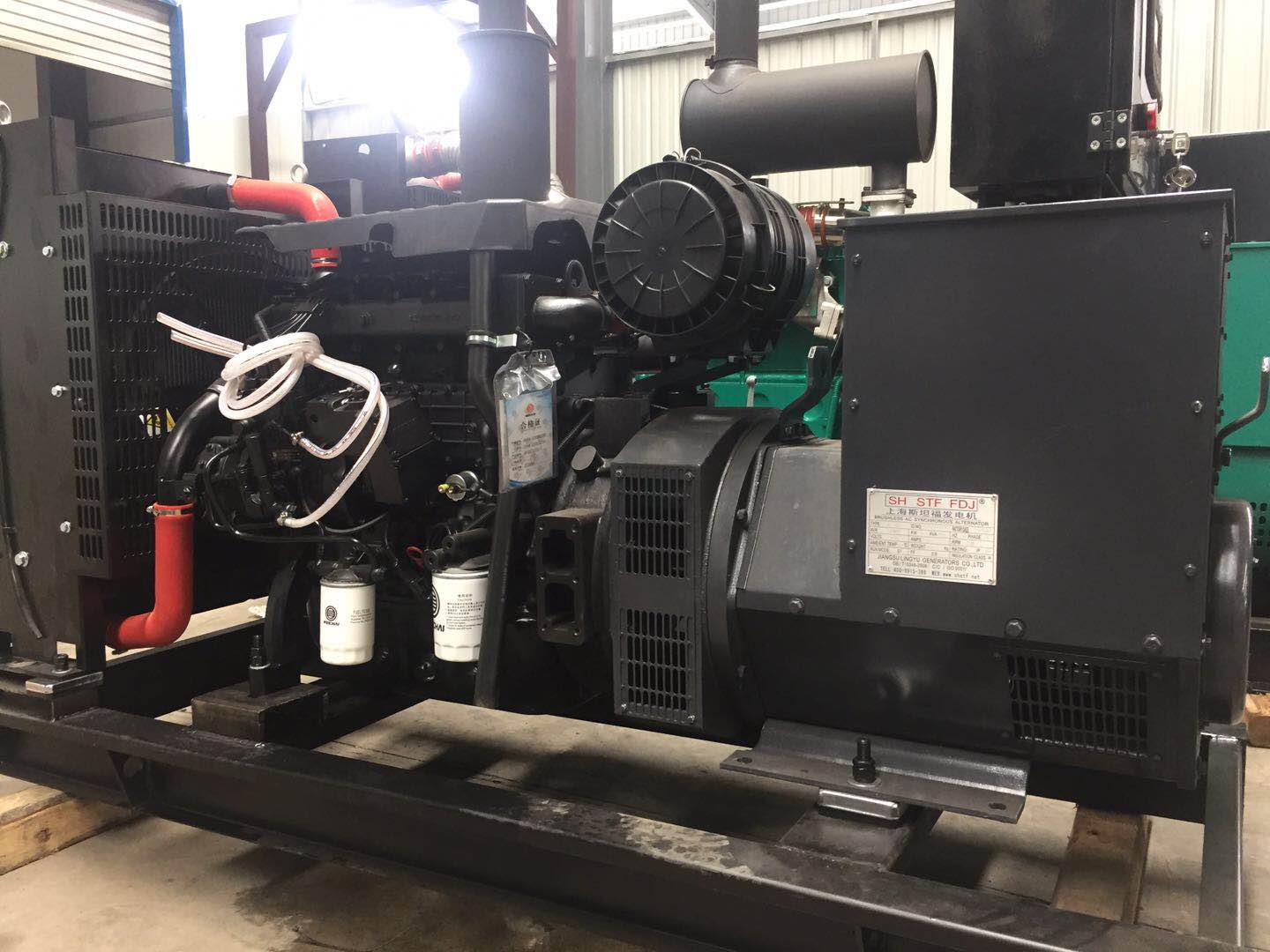

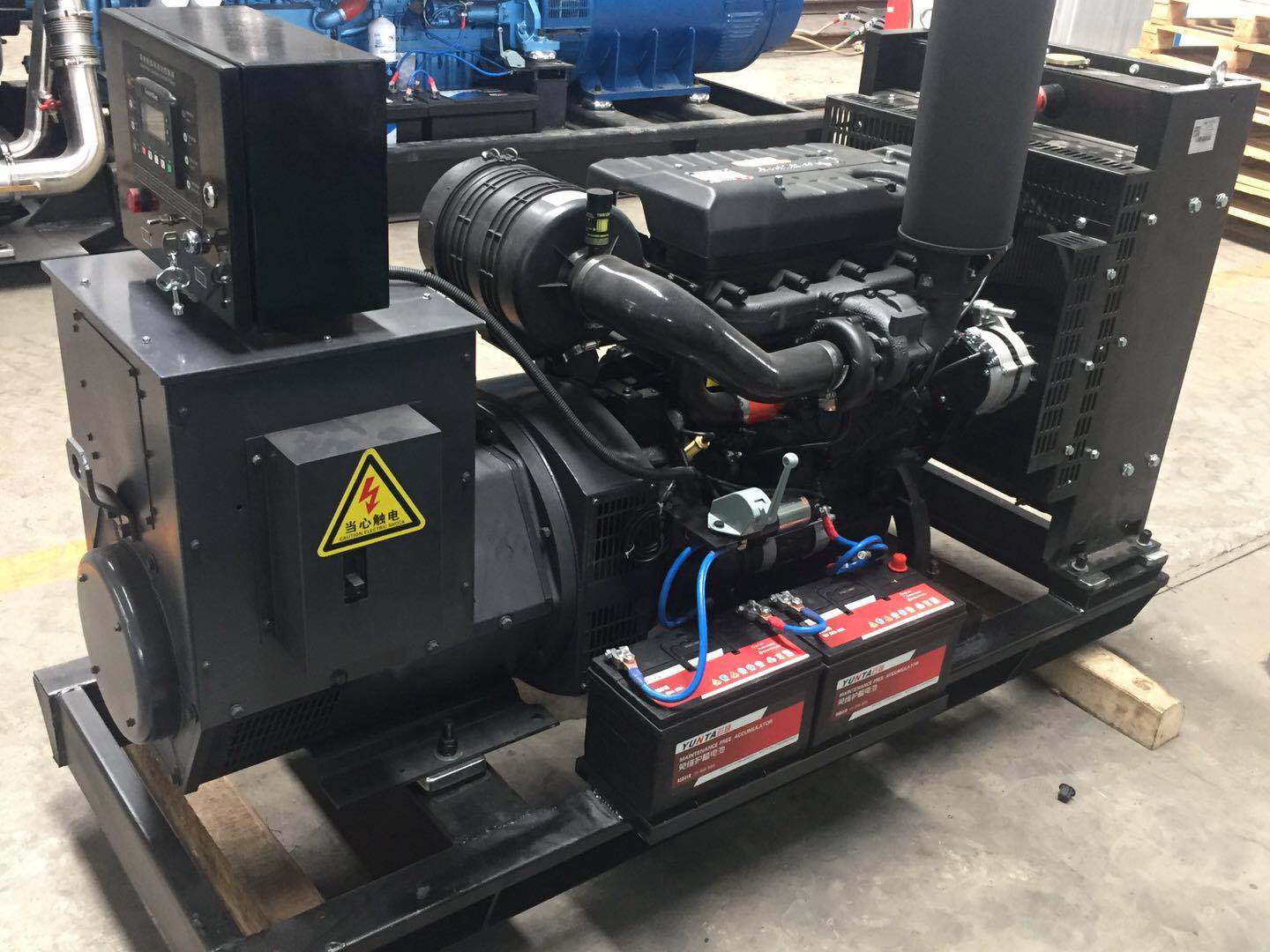

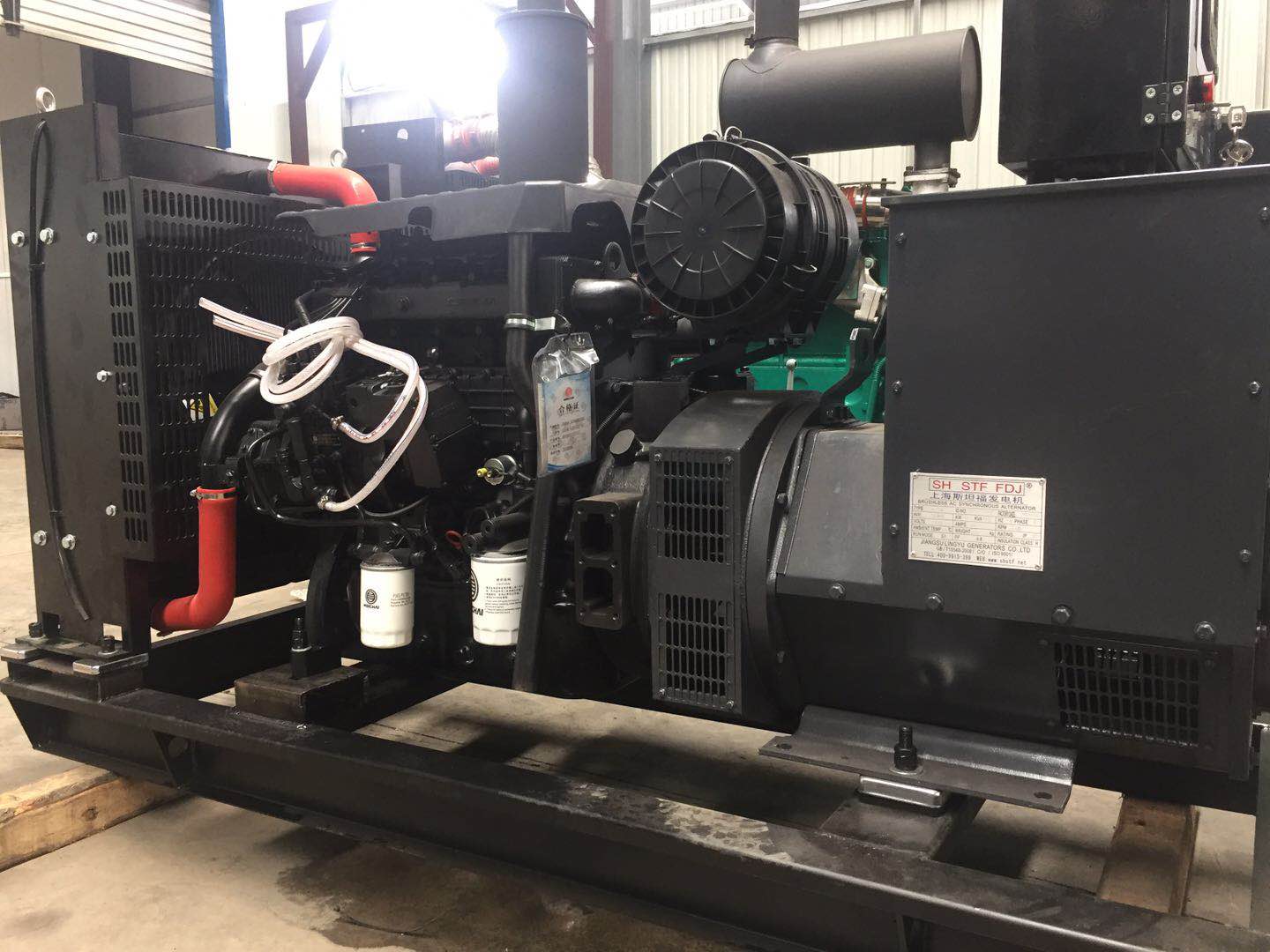

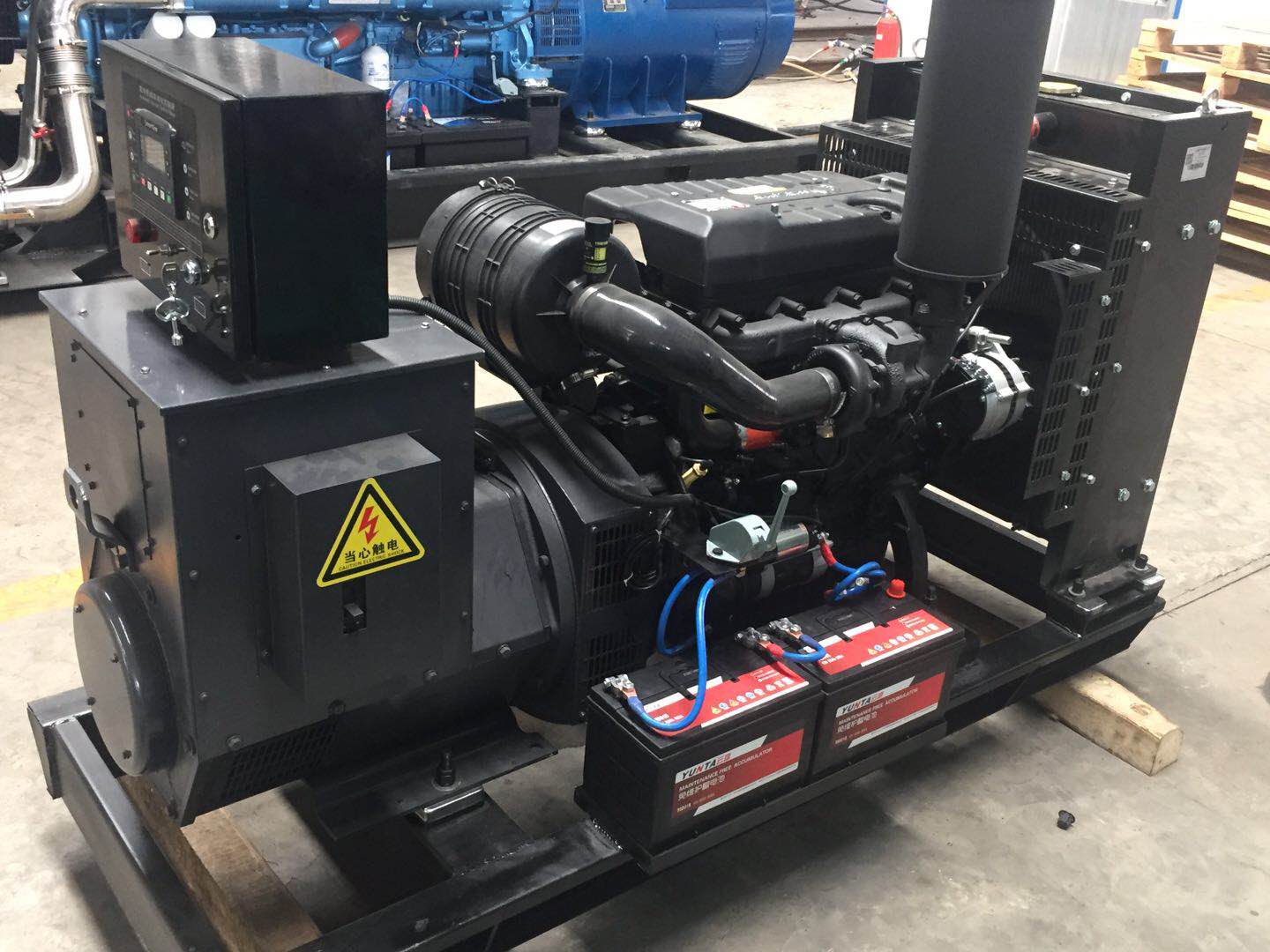

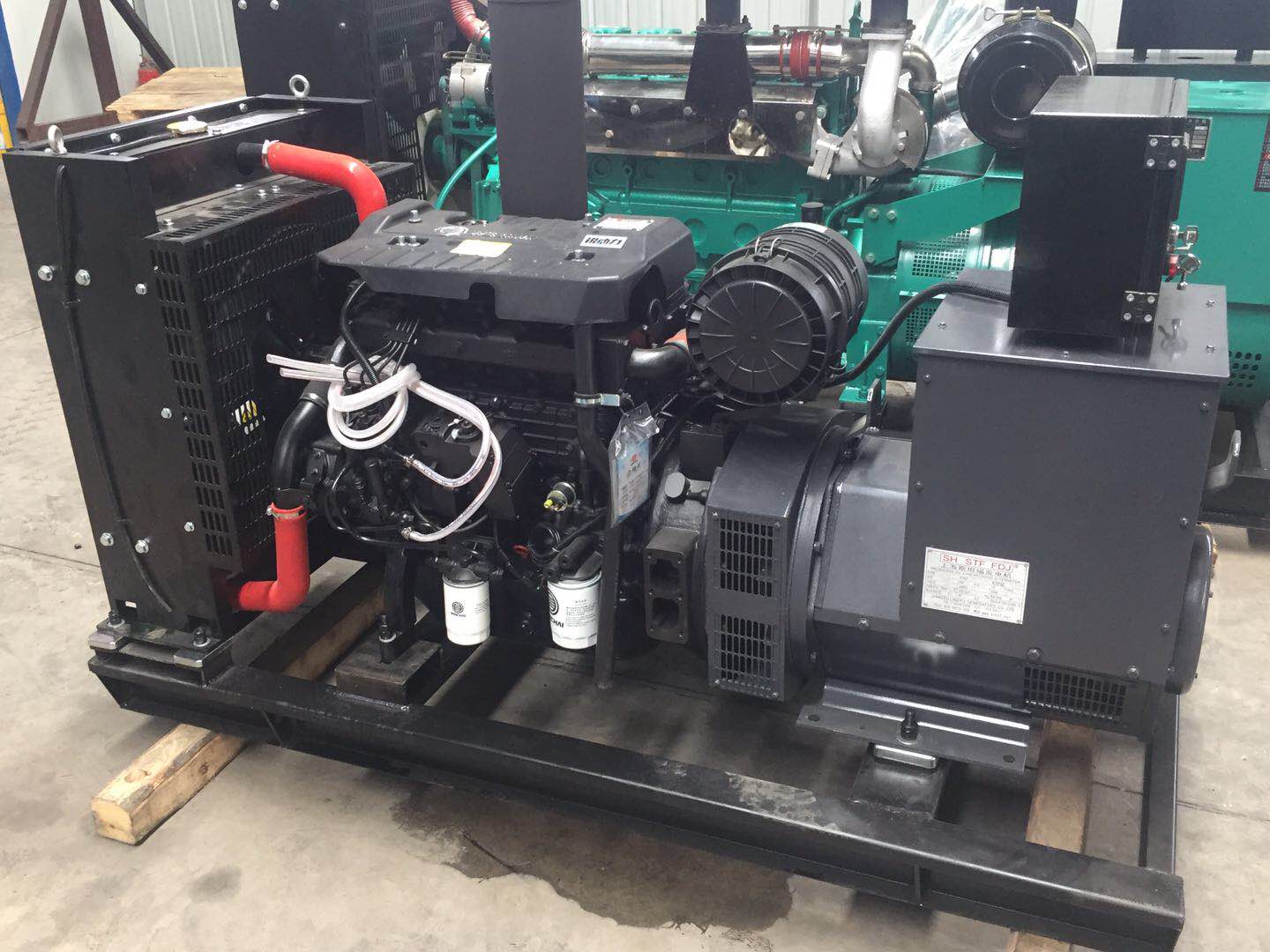

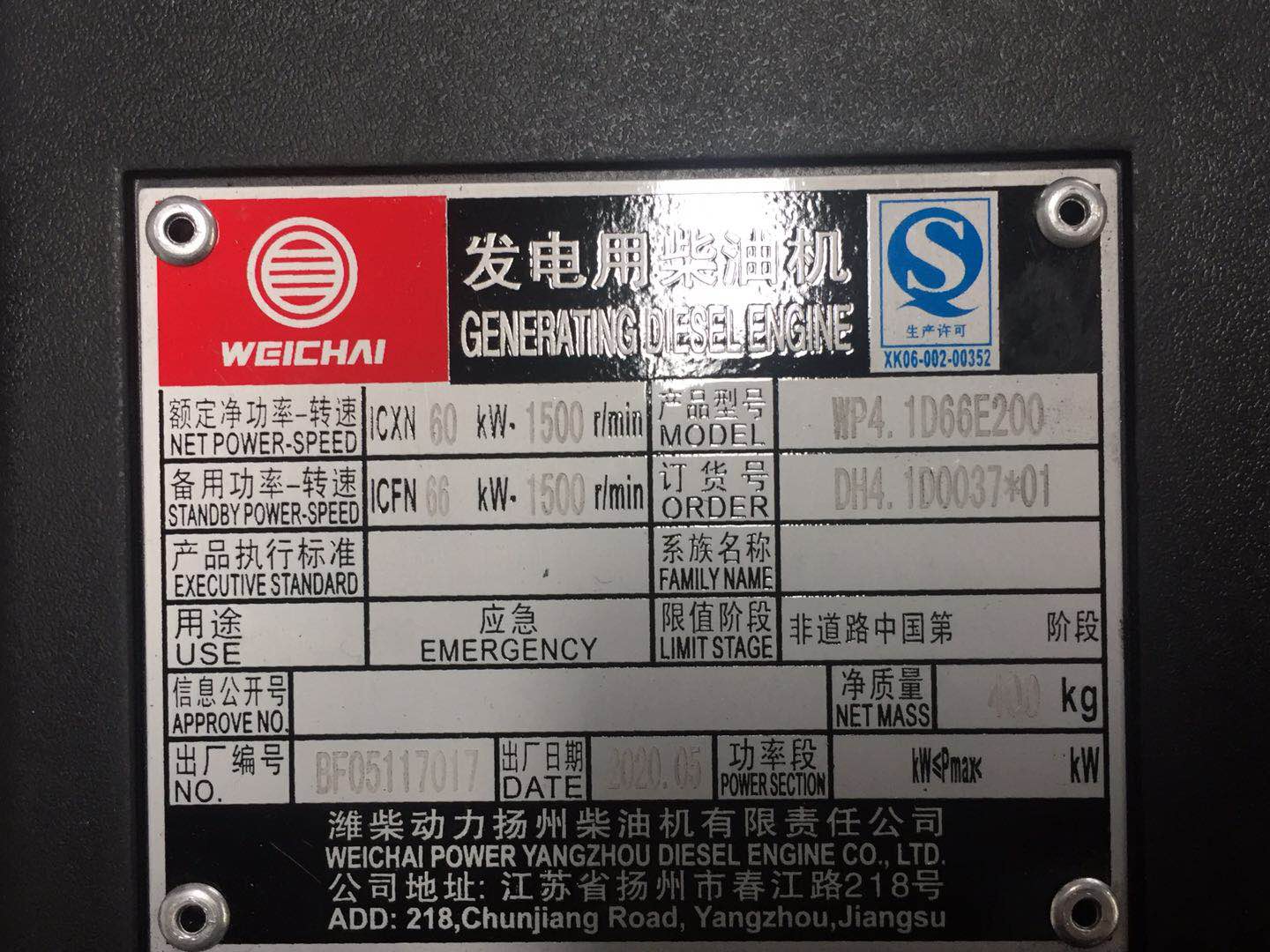

50KW Weichai diesel generator set equipment pictures:
50KW Weichai diesel generator set equipment parameters:
Diesel generator set data | |||
model | BM50 GF | ||
Rated output power (KVA/KW) | 62.5/50 | Rated output current(A) | 90 |
Wiring method | Three-phase four-wire | Power Factor | 0.8 (hysteresis) |
Startup method | 24V DC start | Frequency (Hz) | 50 |
Unit weight (kg) | 940 | Unit size (length * width * height) | 1900 * 880 * 1300 mm |
Diesel engine data | |||
Manufacturer | Weichai Power Yangzhou Diesel Engine Co., Ltd. | model | WP4 .1 D66E200 |
Rated speed(Rpm) | 1500 | Engine power ( kW ) | 66 |
Cylinder stroke | 105*130 | Compression ratio | 18:1 |
Number of cylinders | 4 | Fuel consumption rate ( g/kwh ) | ≤208 |
Speed regulation mode | Mechanical /electrical adjustment | Engine oil fuel consumption ratio ( % ) | ≤ 0.2 |
Displacement ( L ) | 4.5 | Air intake method | Exhaust gas turbocharger |
Engine cooling method | Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard | ||
Generator data | |||

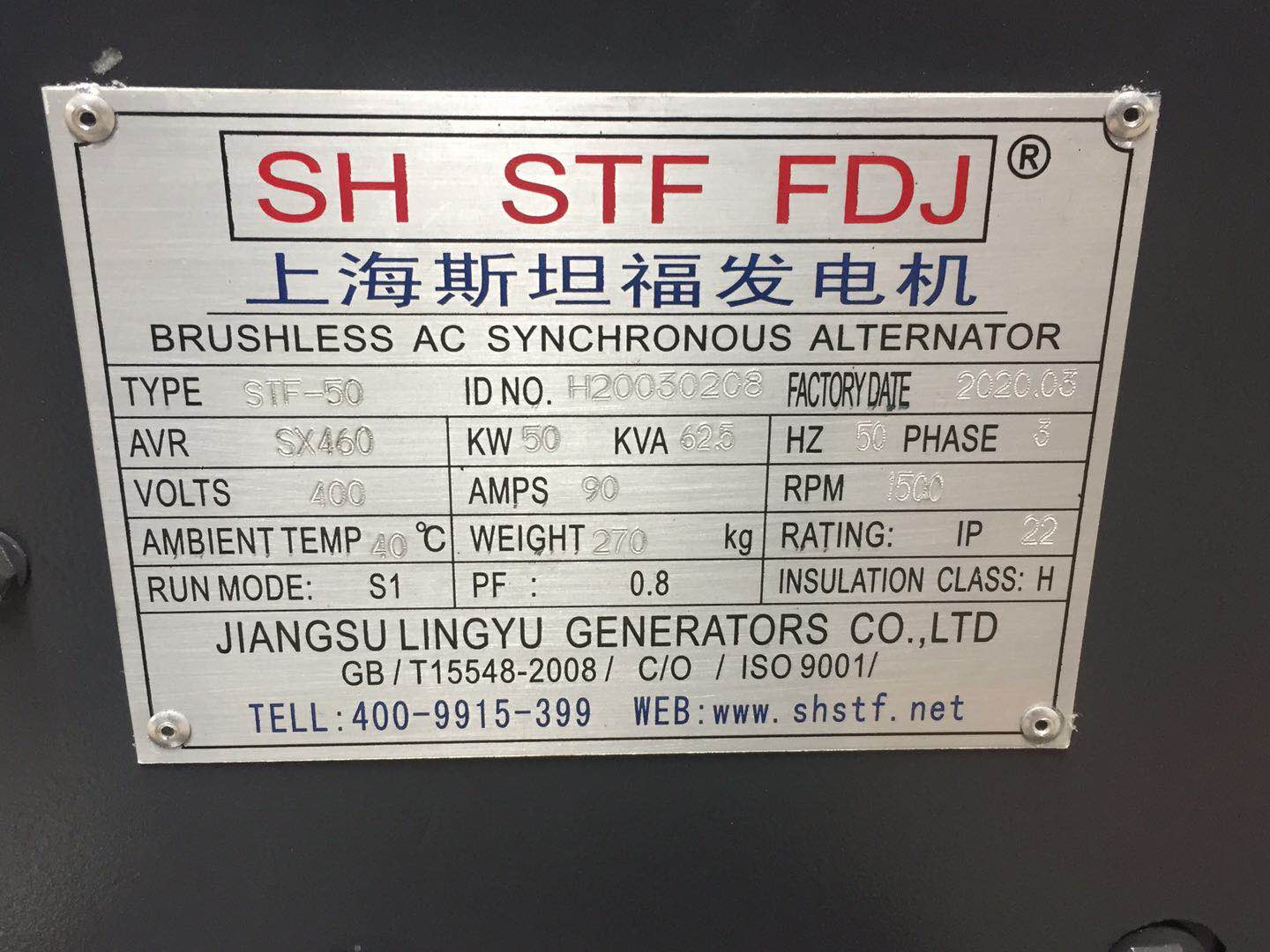

Manufacturer | Jiangsu Lingyu Electric Co., Ltd. | model | STF-50 |
Power(KVA/KW) | 62.5/50 | Protection level | IP2 2 |
Insulation class | H | Power Factor | 0.8 lag |
No-load voltage adjustment range | ≥±5% | Voltage control method | AVR |
efficiency(%) | 88.4 | Wiring method | Three-phase four-wire |
