500KW Chongqing Cummins diesel generator set
500KW Chongqing Cummins diesel generator set technical parameters:
Unit model: BM500GF Standby power (KW): 500 Normal power (KW): 450 Unit size (mm): 3500*1500*2000 Unit weight (kg): 4200 Fuel consumption (g/kw.h): 206 Frequency(HZ): 50 Speed (r/min): 1500 LP7m noise (dB): 92.4 Control system: LCD Chinese CNC | Working environment requirements: Altitude (m): ≤1000 Atmospheric pressure (kPa): ≥89.9 Inlet air temperature (℃): ≤40 Relative humidity: ≤60% Fuel standard: 0# light diesel Engine oil standard: CF grade/15W-40 Water pH: 6.5～8 Surface mildew level: ≤GB/T2423.16/2 One hour overload is allowed every 12 hours |
Generator parameters | Generator parameters |
Diesel generator brand: (Cummins) Cummins Manufacturer: (CCEC) Chongqing Cummins Generator Co., Ltd. Diesel generator model: KTAA19-G5 Maximum power (KW): 555 Output power (KW): 502 Number of cylinders/arrangement: 6 cylinders/in-line Compression ratio: 13.5:1 Cylinder diameter*stroke(mm): 159*159 Displacement (L): 18.9 Oil pressure (psi): 50～70 Engine oil temperature (℃): ≤121 Oil capacity(L): 50 Fuel system: PT pump direct injection Cooling method: Closed water cooling cycle Starting method: DC24V electric start Speed regulation mode: electronic speed regulation Intake mode: Supercharged, intercooled Type: Four-stroke, 60° Constant load steady state fluctuation rate: ±0.25% Power deviation: ≦±5% | Generator brand: Leroy Senma Voltage: 400V/230V Type: Brushless self-excitation (AVR automatic voltage regulation) Phase number: three-phase four-wire Wiring: Y-type connection Insulation Class: H Power factor: COSΦ=0.8 lagging Telephone Impact Factor: TIF: <50 Telephone harmonic coefficient: THF: <2% Protection level: IP22/IP23 Transient voltage regulation: ≤-15%/ +20% Steady-state voltage regulation: ≤±1% Voltage stabilization time: ≤3sec Voltage fluctuation rate: ≤0.5% Voltage waveform distortion: ≤8% Steady-state frequency regulation rate: ≤5% Transient frequency regulation rate: ≤-10%/+12% Frequency stabilization time: 3sec Frequency volatility: ≤1.5% Rotor type: Salient pole |

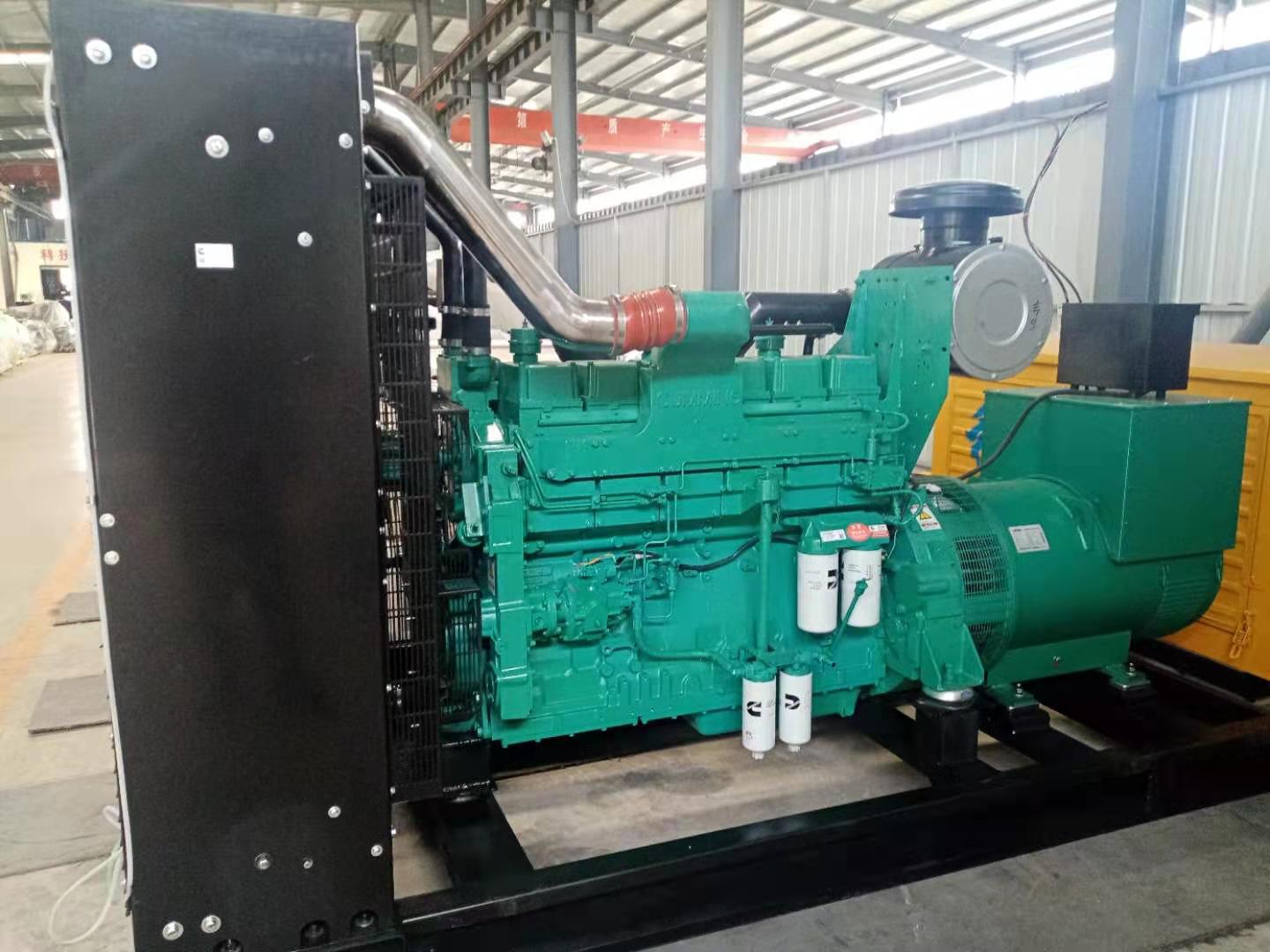

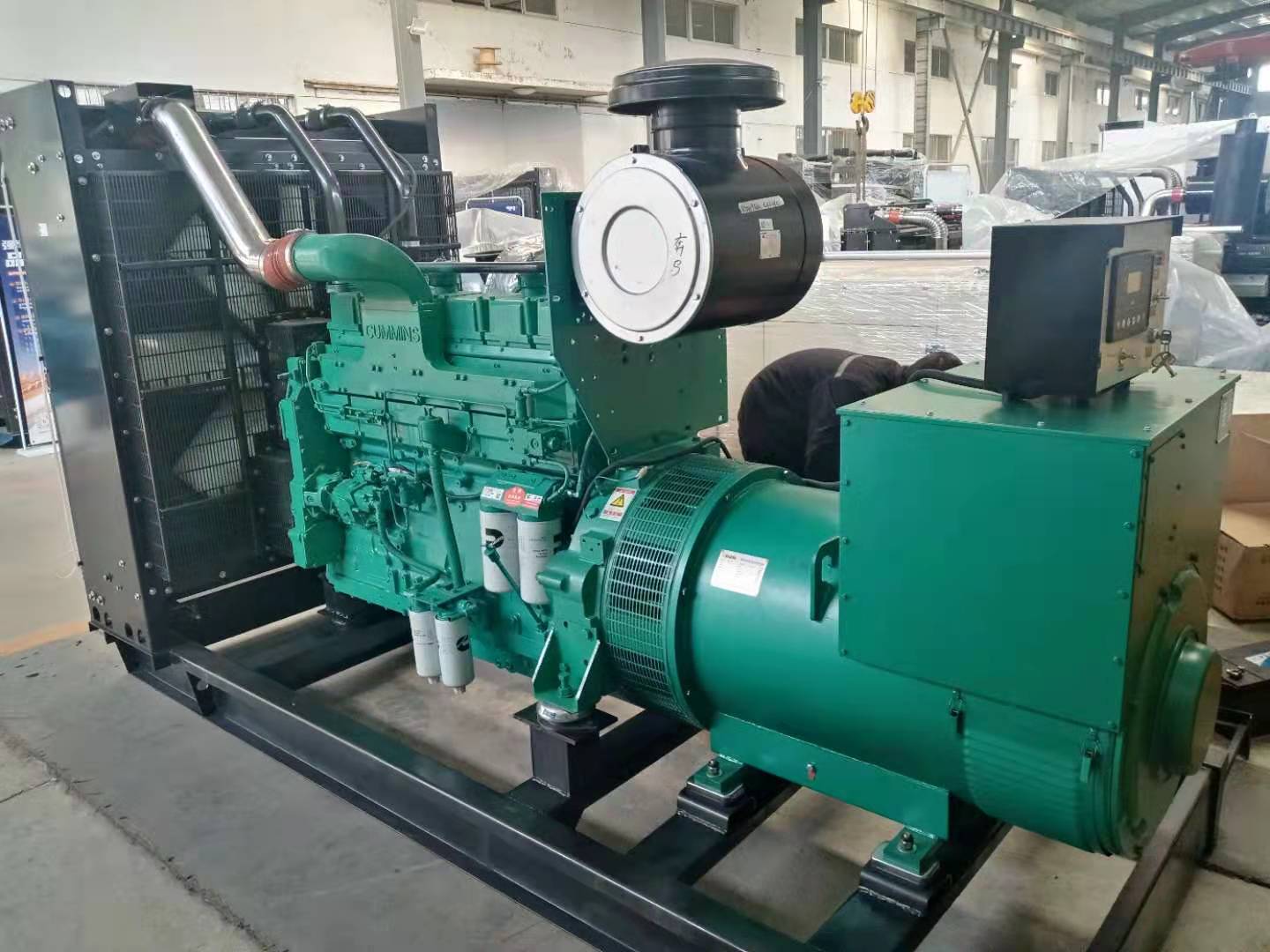

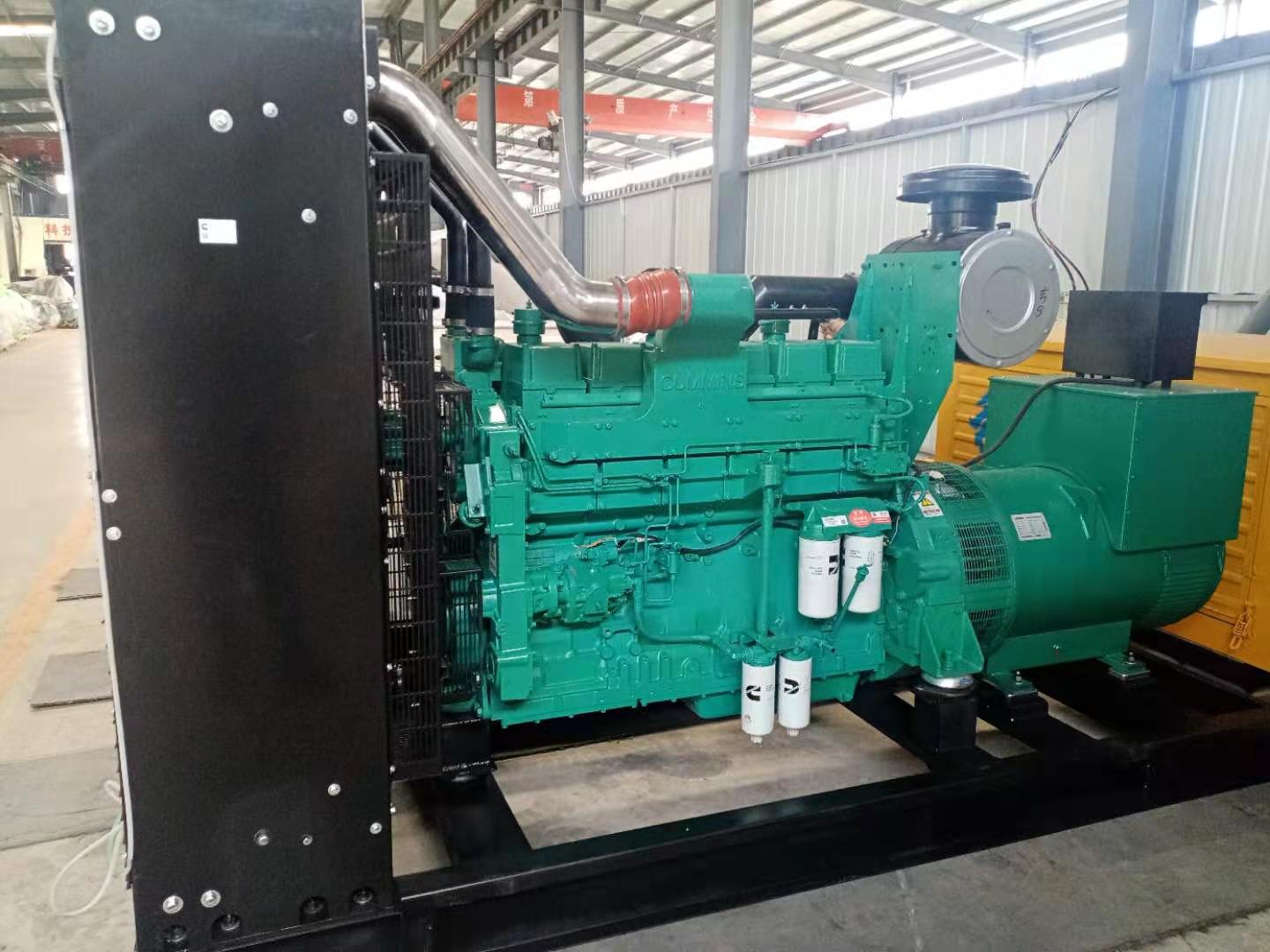

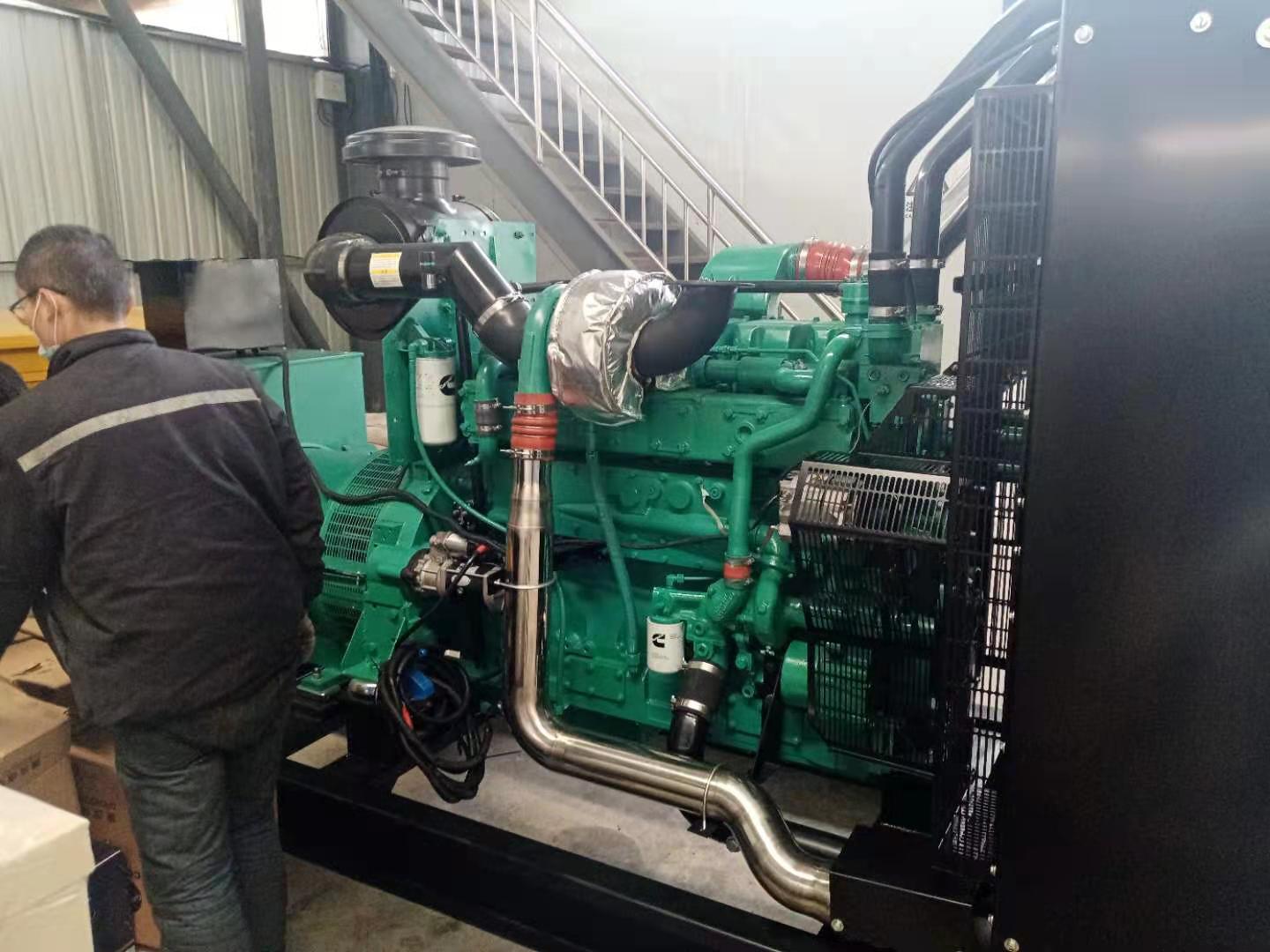

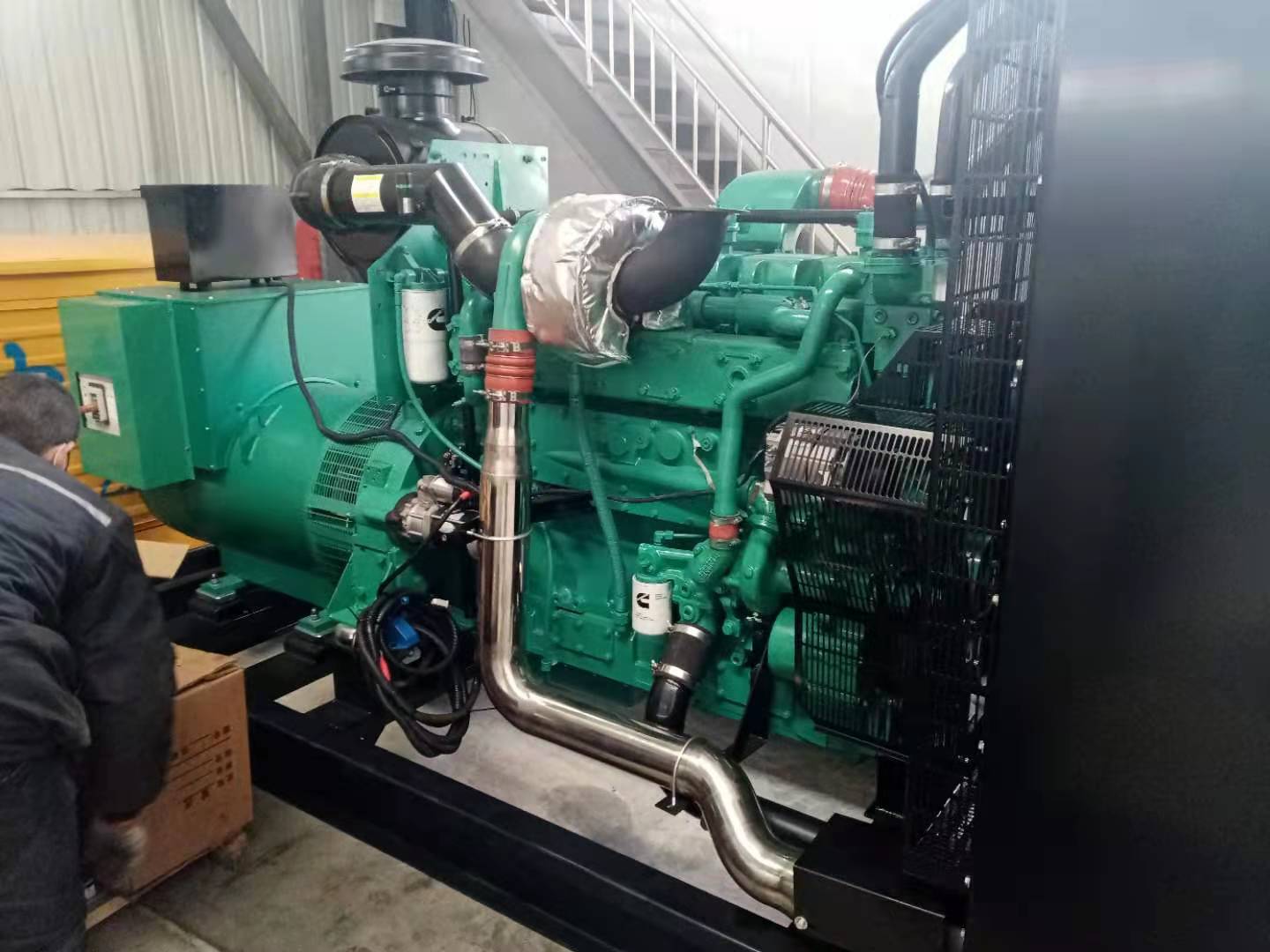

500KW Chongqing Cummins diesel generator set equipment pictures:
