700KW Baudouin diesel generator set parameters

1. Technical Specifications

(1) Model: 700GF

Common power (KW): 700

Reserve power (KW): 902

Frequency: 50Hz

Output voltage: 400/230V

Speed: 1500rpm

Power factor: COSΦ=0.8 (lagging)

Fuel consumption (g/Kw*h): 210 (No. 0 diesel is recommended)

Output current (A): 1440

Phase/wire number: three-phase four-wire

Noise LP7m: 108db

Overall dimensions (mm): 4200*1750*2135 (Appearance dimensions are subject to the actual product)

Weight: 7500Kg (weight is subject to the actual product)

(2) Diesel engine :

Brand: Baudouin

Place of Origin: Baudouin (Weifang) Power Co., Ltd.

Model: 12M26D902E200
Cooling start: Closed water cooling
Starting method: 24V DC start
Number of cylinders: 12
Cylinder arrangement: V-type
Displacement: 31.8L
Compression ratio: 15:1
Diesel engine bore/stroke mm: 150/150
Diesel engine coolant capacity: 80L
Diesel engine oil pan capacity: 113L
Fuel supply method: direct
injection Intake method: supercharged intercooler
Intercooling method: water intercooler
Fuel model: domestic 0# light diesel
Speed regulation method: electronic speed regulation
Engine oil model: WD/40
Diesel engine net weight (Kg): 2910
Overall dimensions (mm): 2615*1525*1760

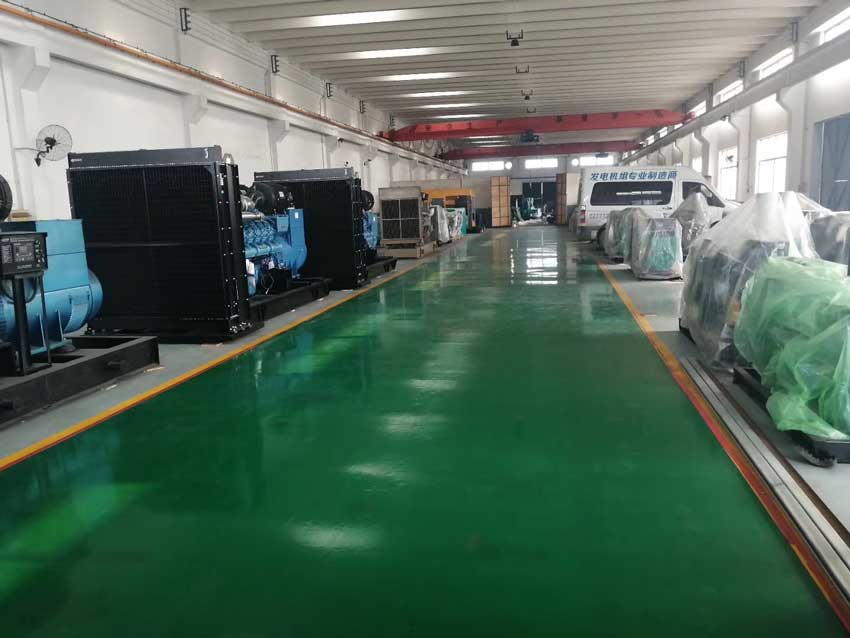

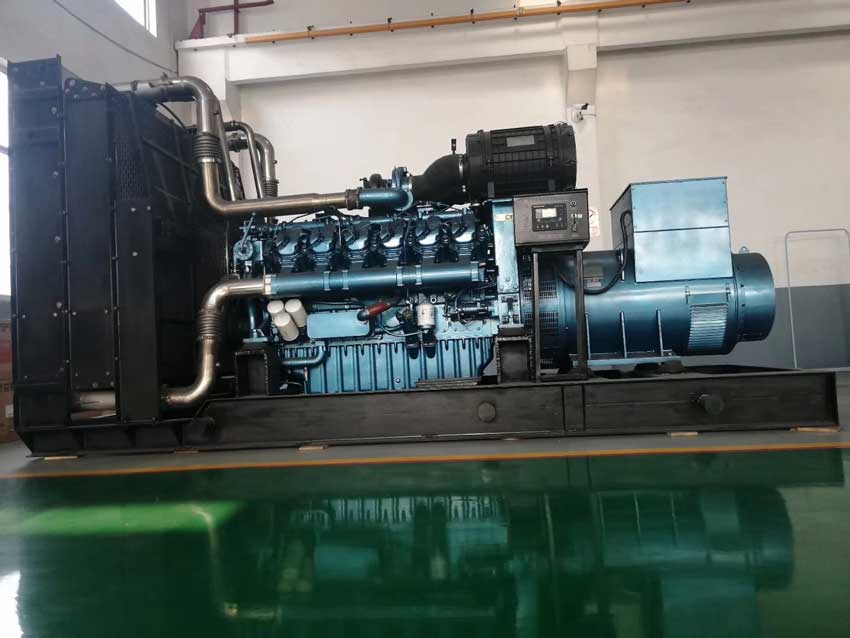

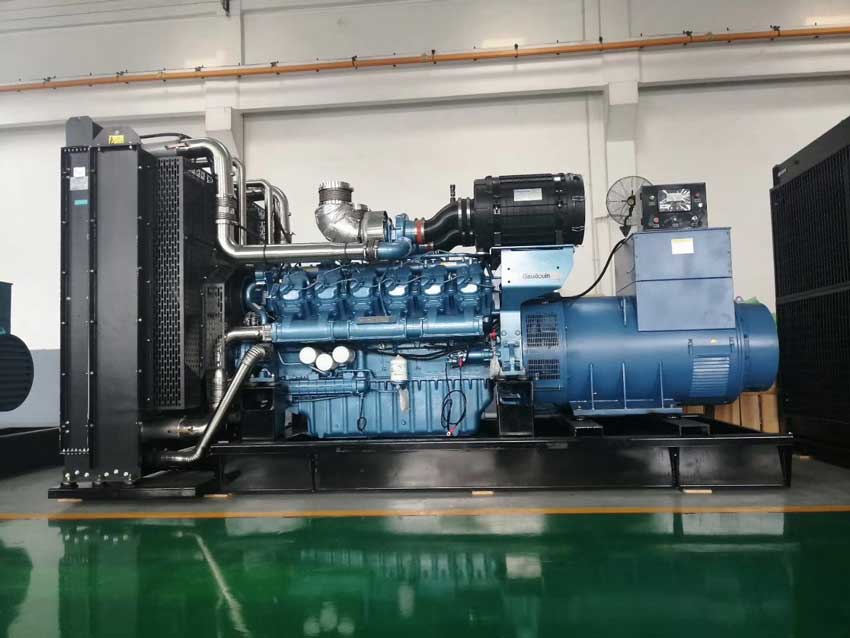

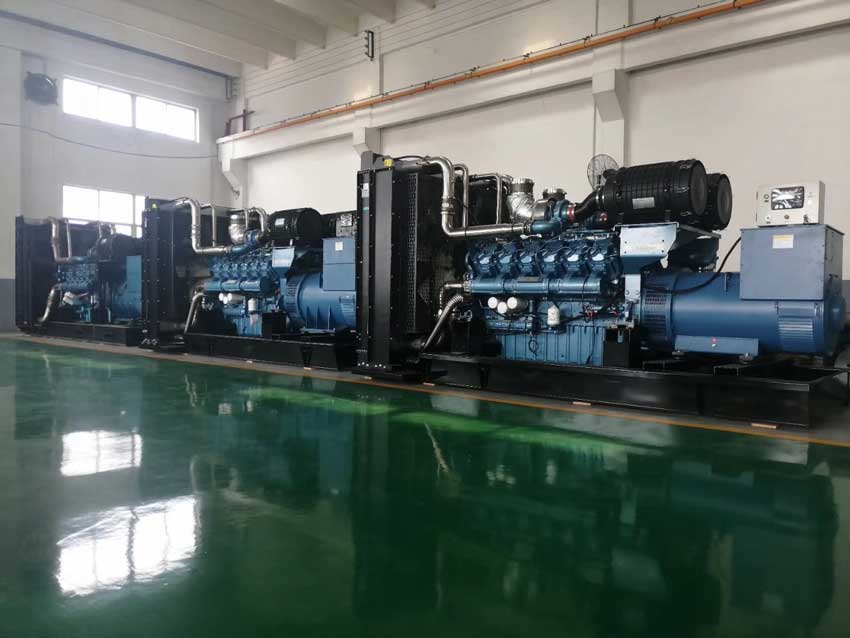

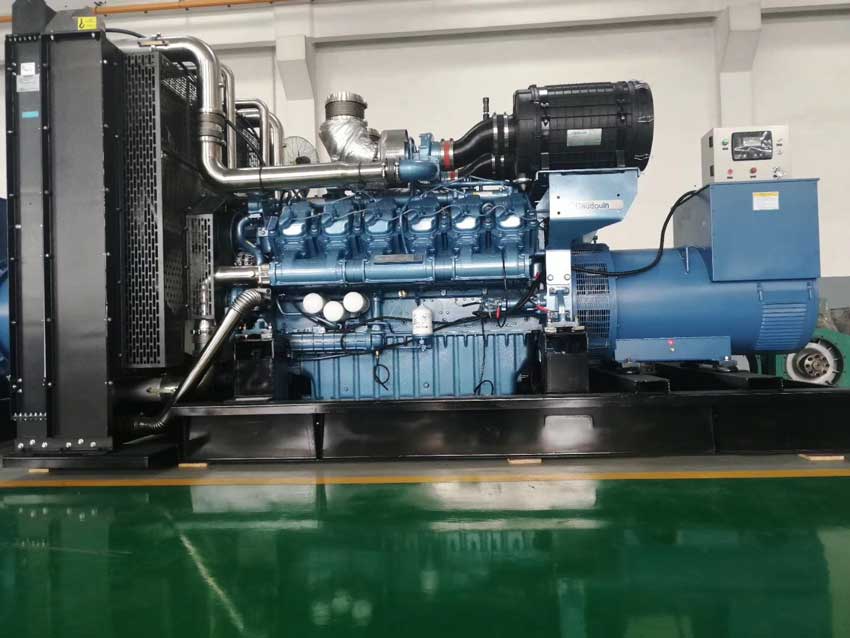

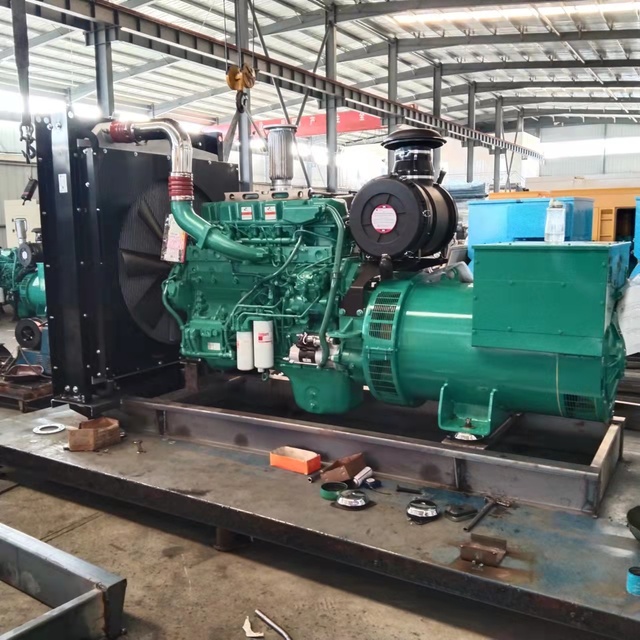

700KW Weichai diesel generator equipment pictures:
