120KW Guangxi Yuchai diesel generator set technical parameters:



Parameters of Yuchai Diesel Generator Set120KW
I. Technical Specifications
(1) Unit Model: 120GF
Normal Power (KW): 120
Standby Power (KW): 132
Frequency: 50Hz
Output Voltage: 400/230V
Speed: 1500rpm
Power Factor: COSΦ=0.8 (Lag)
Fuel Consumption (g/Kw*h): 200
Output Current (A): 216 (No. 0 diesel is recommended)
Number of Phases/Lines: Three-phase Four-wire
Noise LP7m: 102db
Dimensions (mm): 2400*880*1500 (Dimensions are subject to the actual product)
Weight: 1300Kg (Weight is subject to the actual product)
(2) Diesel Engine :
Brand: Yuchai
Origin: Yuchai Machinery Co., Ltd.
Model: YC6B180L-D20
Cooling and starting: Closed water cooling
Starting method: 24V DC starting
Intake method: Supercharged intercooler
Number of cylinders: 6
cylinders total displacement L: 6.871
diesel engine oil consumption rate (g/Kw*h): ≤1.5
fuel supply mode: direct injection
cylinder arrangement: upright
intercooling method: water intercooling
fuel type: domestic 0# light diesel
speed regulation method: mechanical speed regulation
oil type: WD/40
cylinder diameter/stroke: 108/125mm
compression ratio: 17.5:1
diesel engine oil capacity L: 14-17
diesel engine overall dimensions (mm): 1350*785*1195
diesel engine weight: 700Kg
(3) Generator :
Brand: Marathon Stanford
Origin: Jiangsu
Model: ZD-120
Material: Pure copper
Insulation grade: H
Voltage control mode: AVR
Voltage: ≤4%
Rated voltage (V): 400/230
Protection grade: IP23
Frequency: 50Hz
Phase/wiring: three-phase four-wire/Y-type winding
Frequency adjustment rate (%): ≤±0.5 (steady state) +10～-7 (transient)
Voltage adjustment rate (%): ≤±0.5 (steady state) +20～-15 (transient)
Frequency fluctuation rate (%): ≤±0.5
Voltage fluctuation rate (%): ≤±0.5

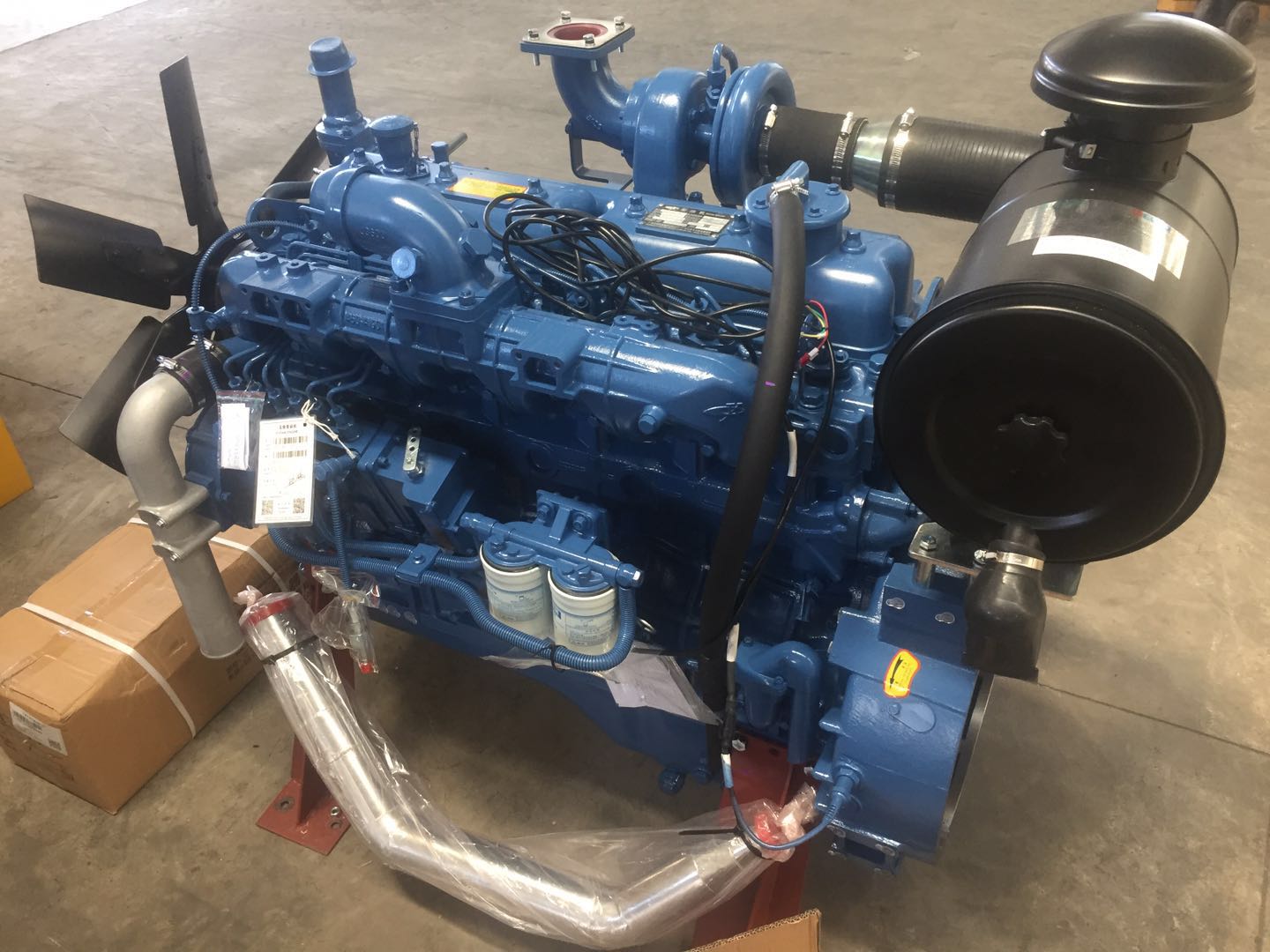

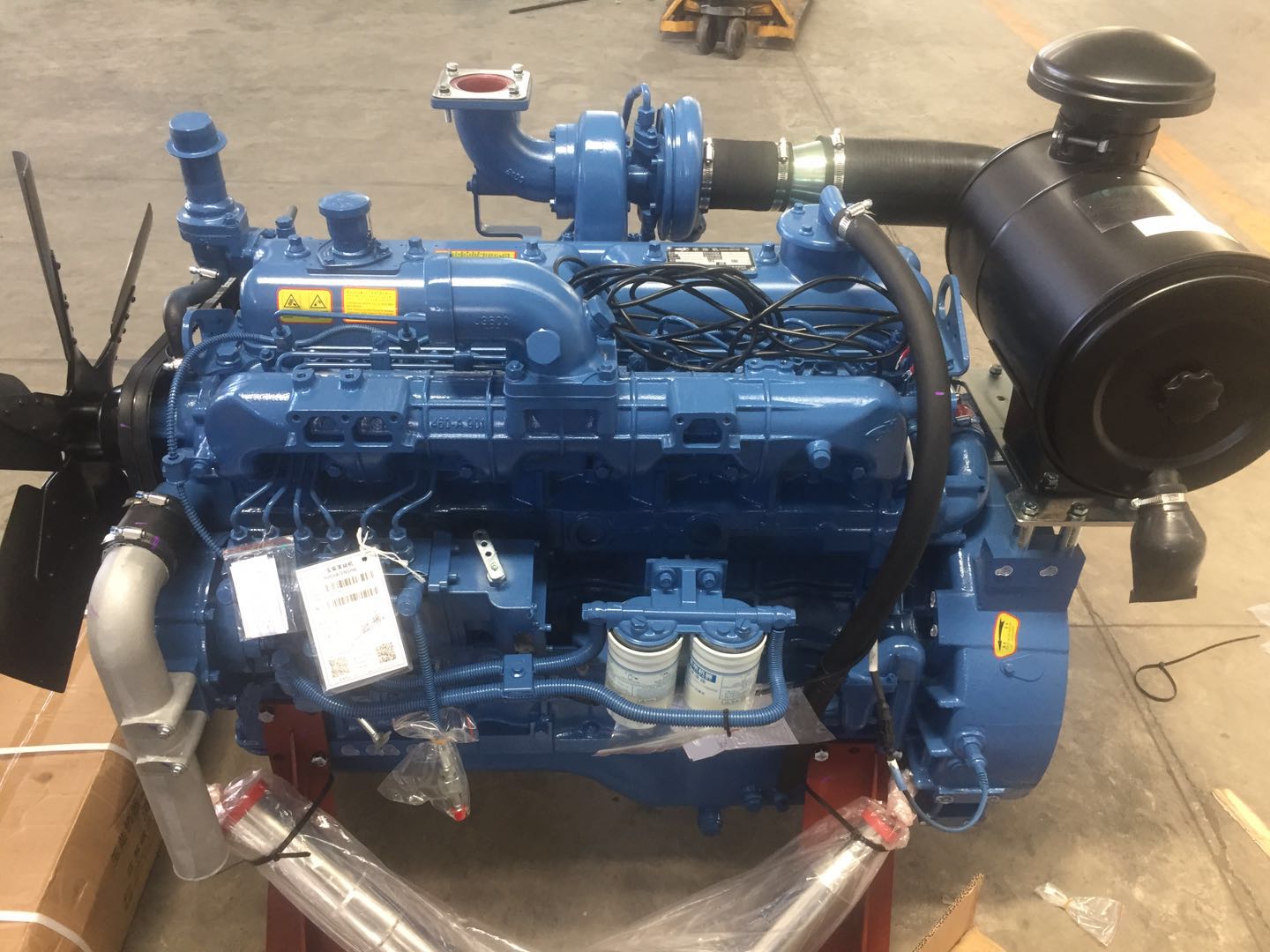

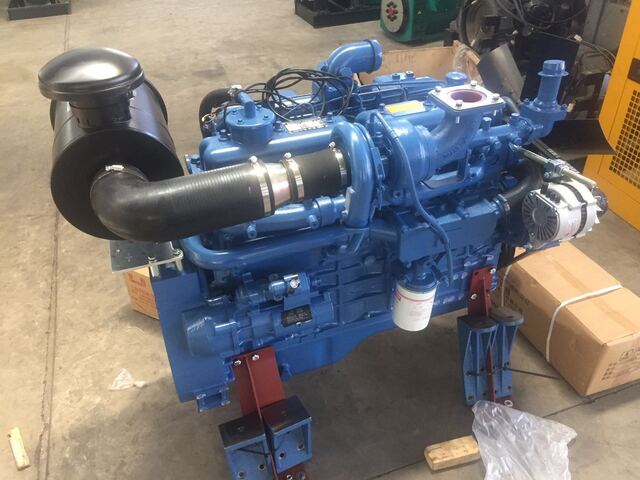

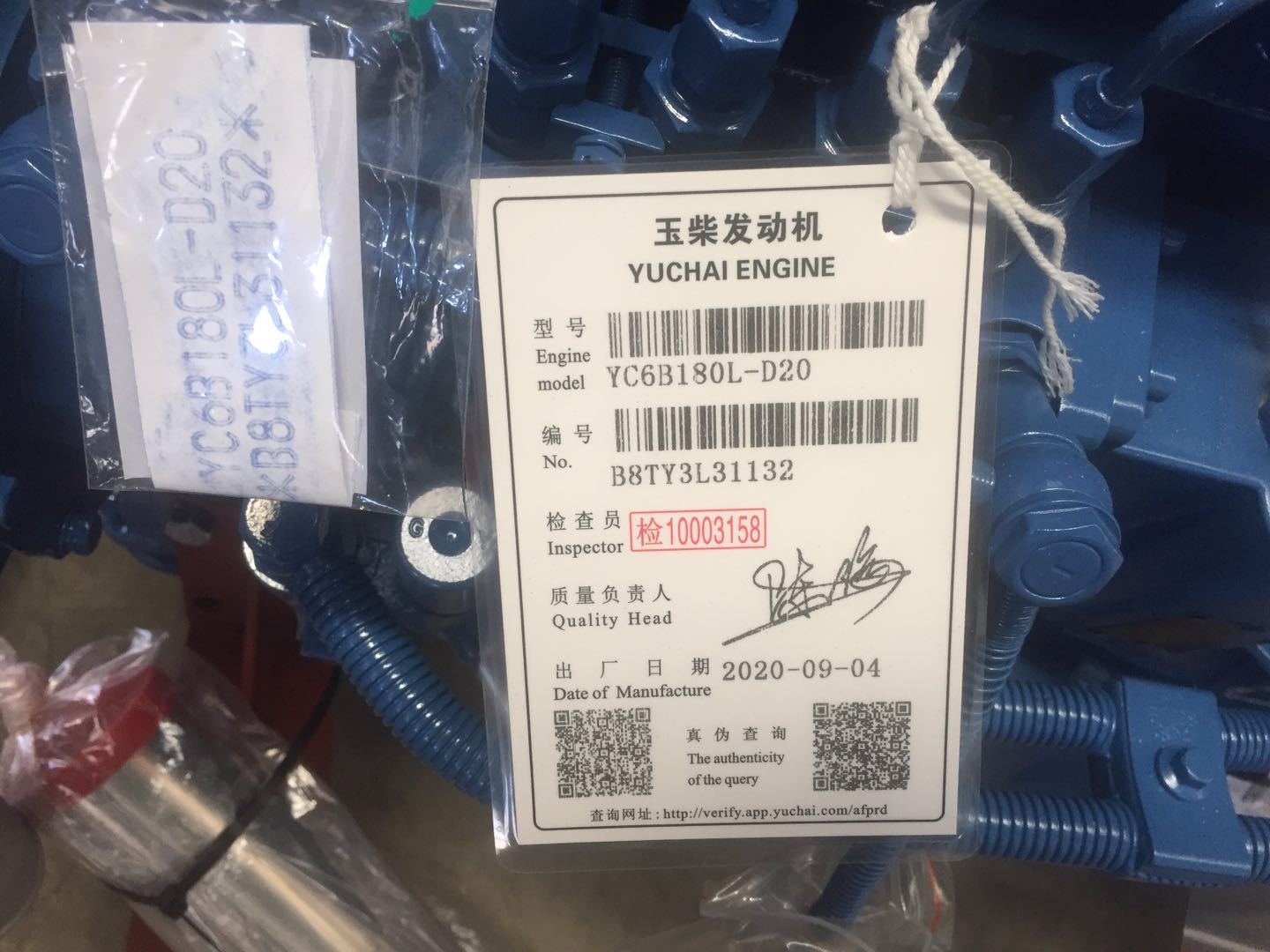

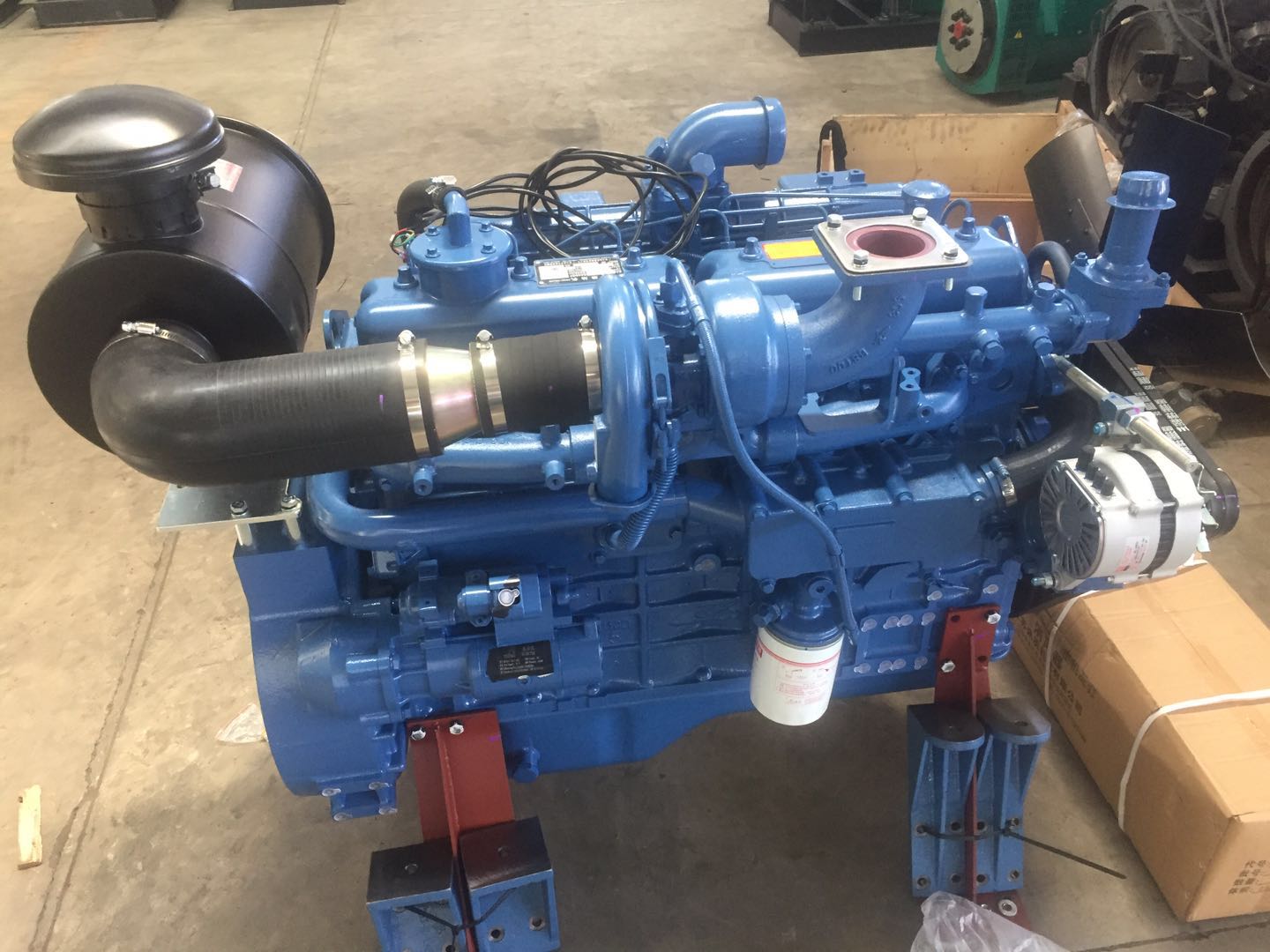

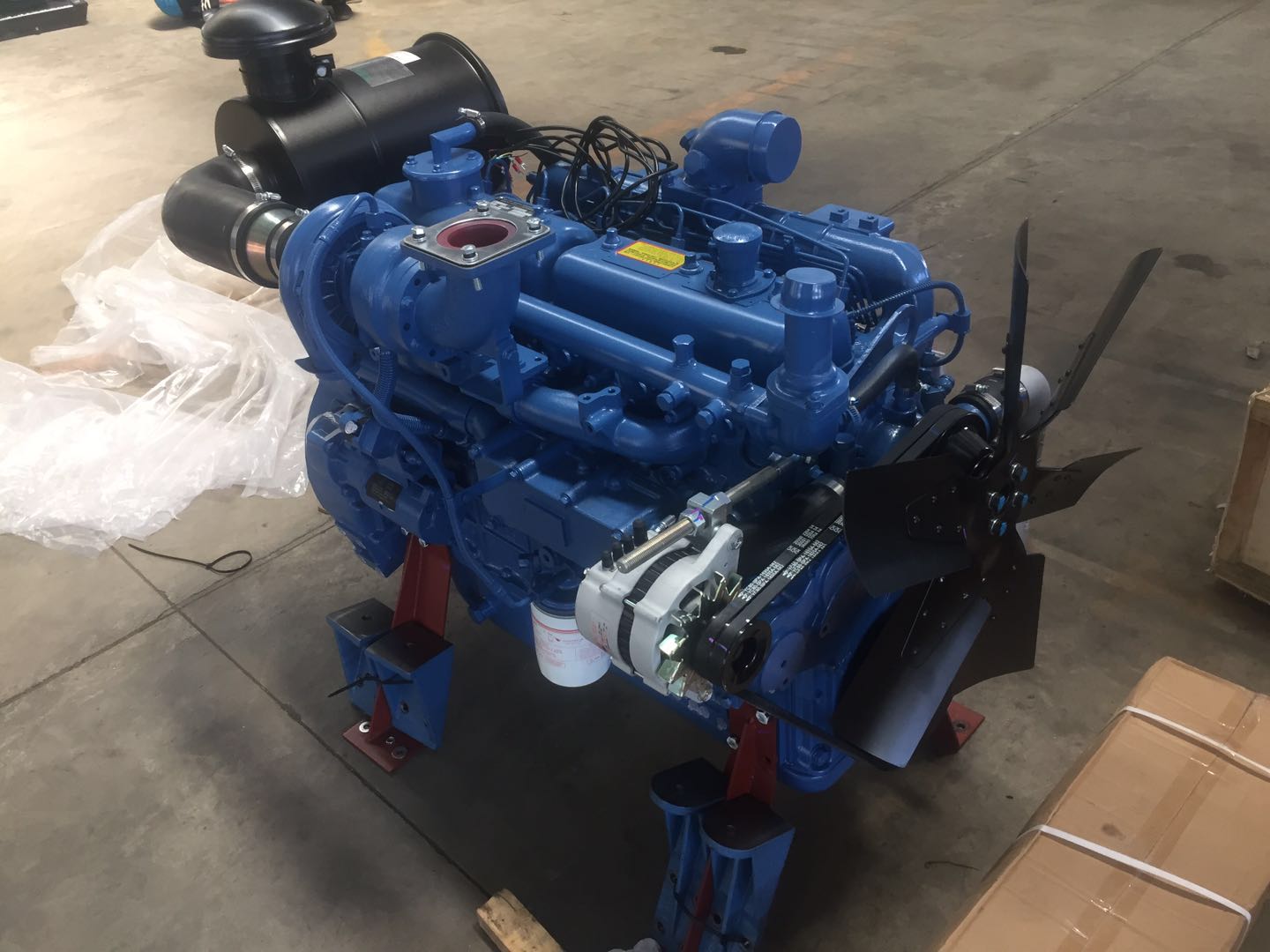

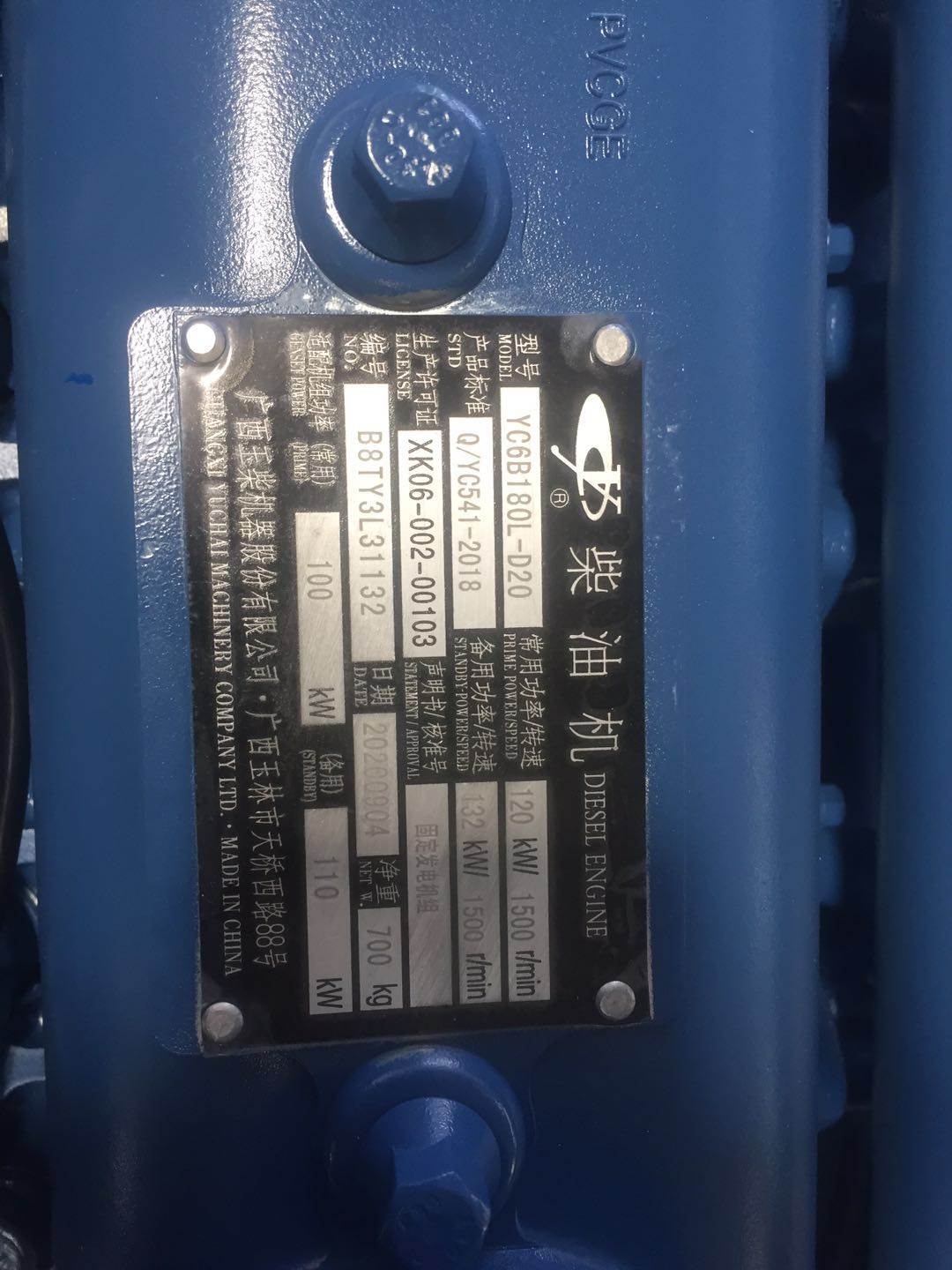

120KW Guangxi Yuchai diesel generator set equipment pictures:
