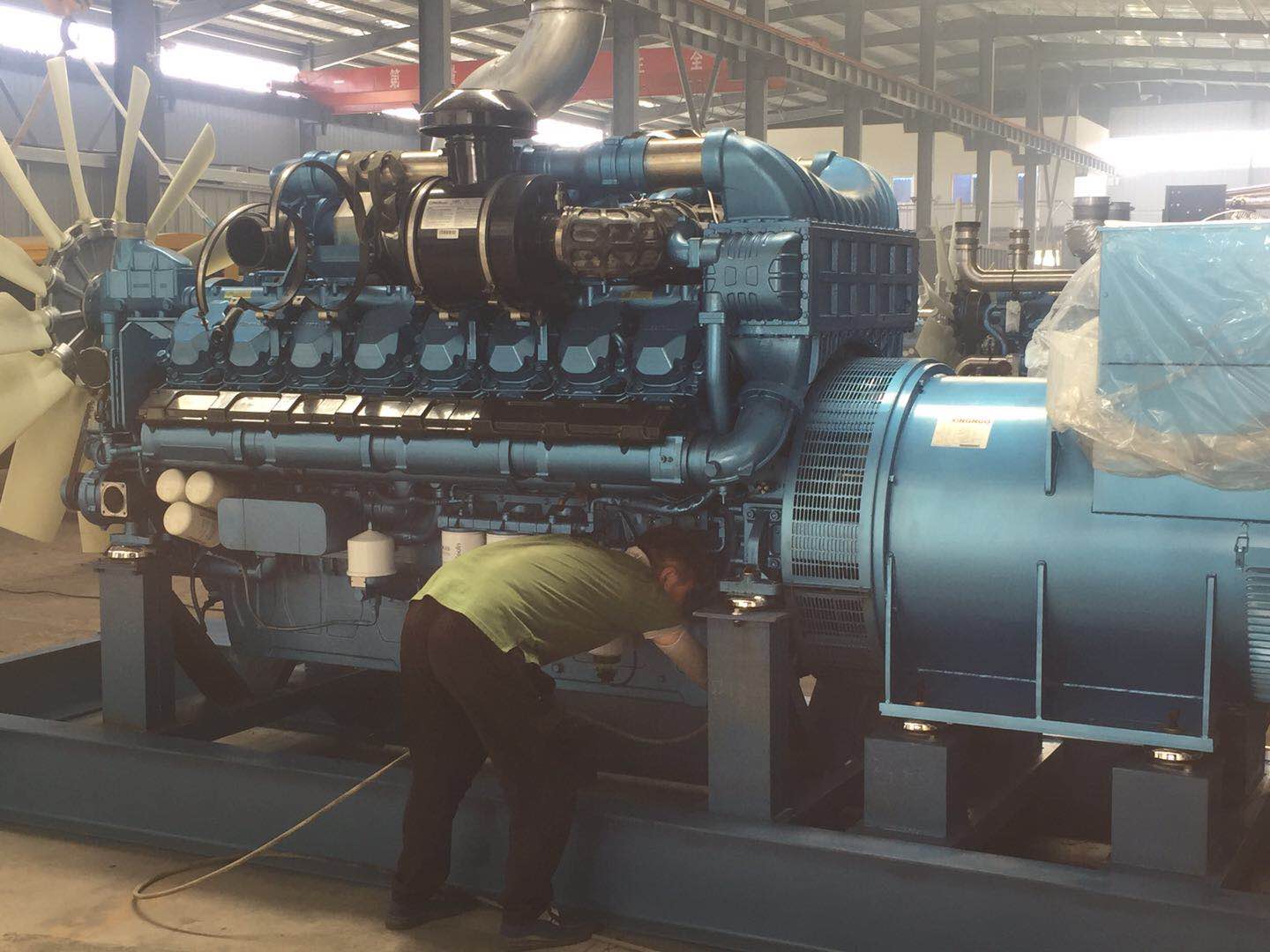

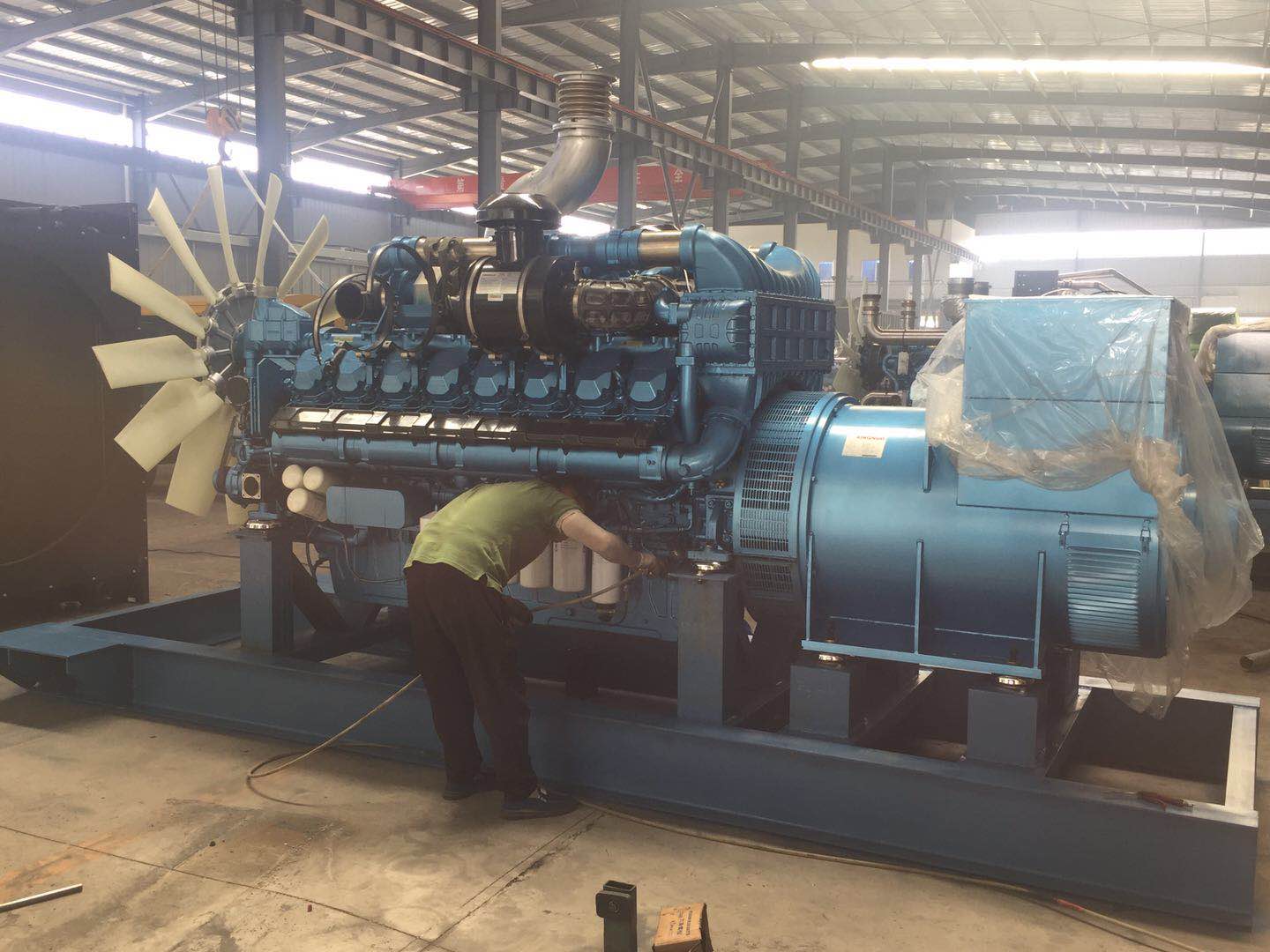

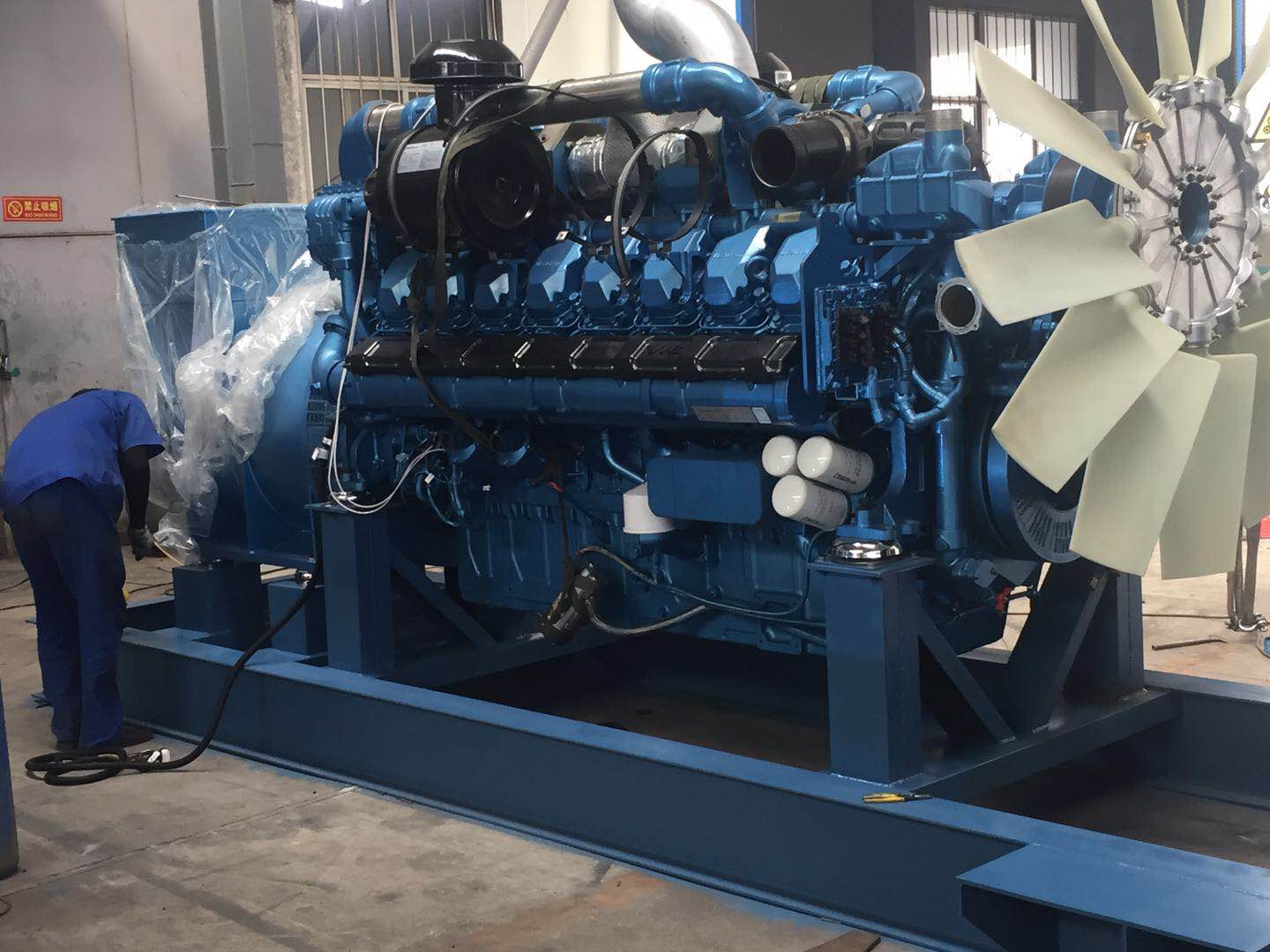

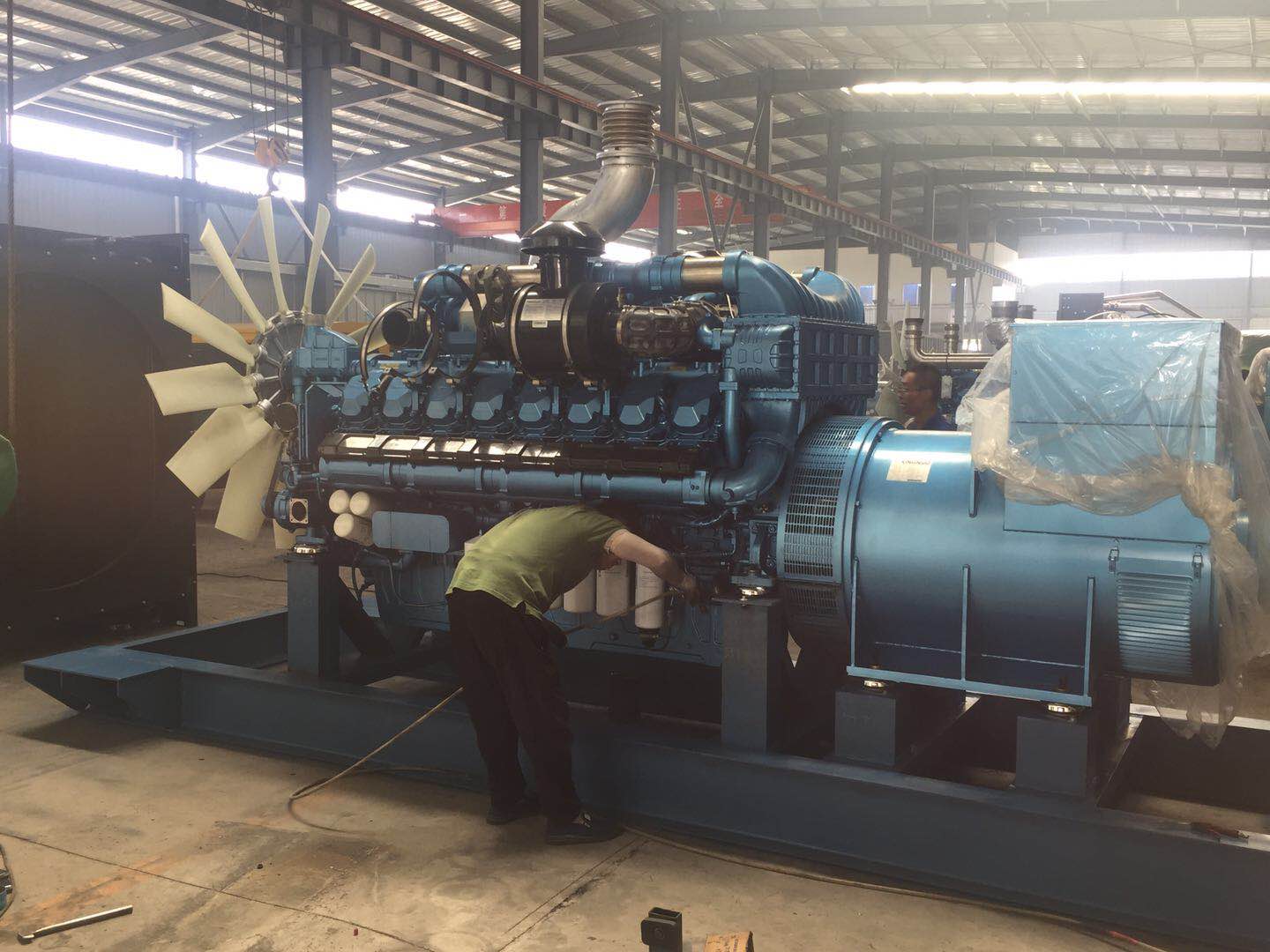

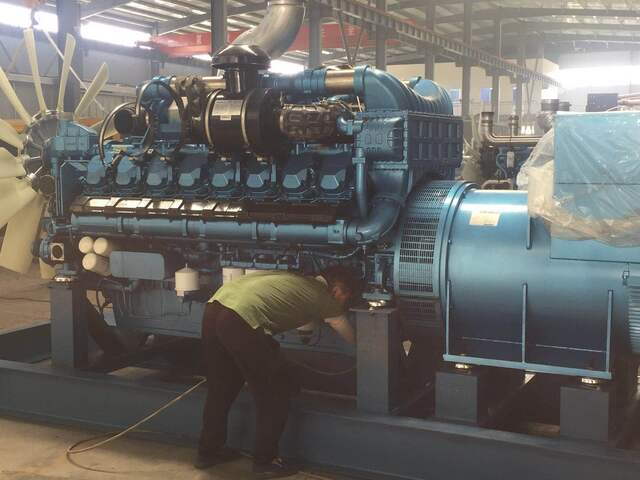

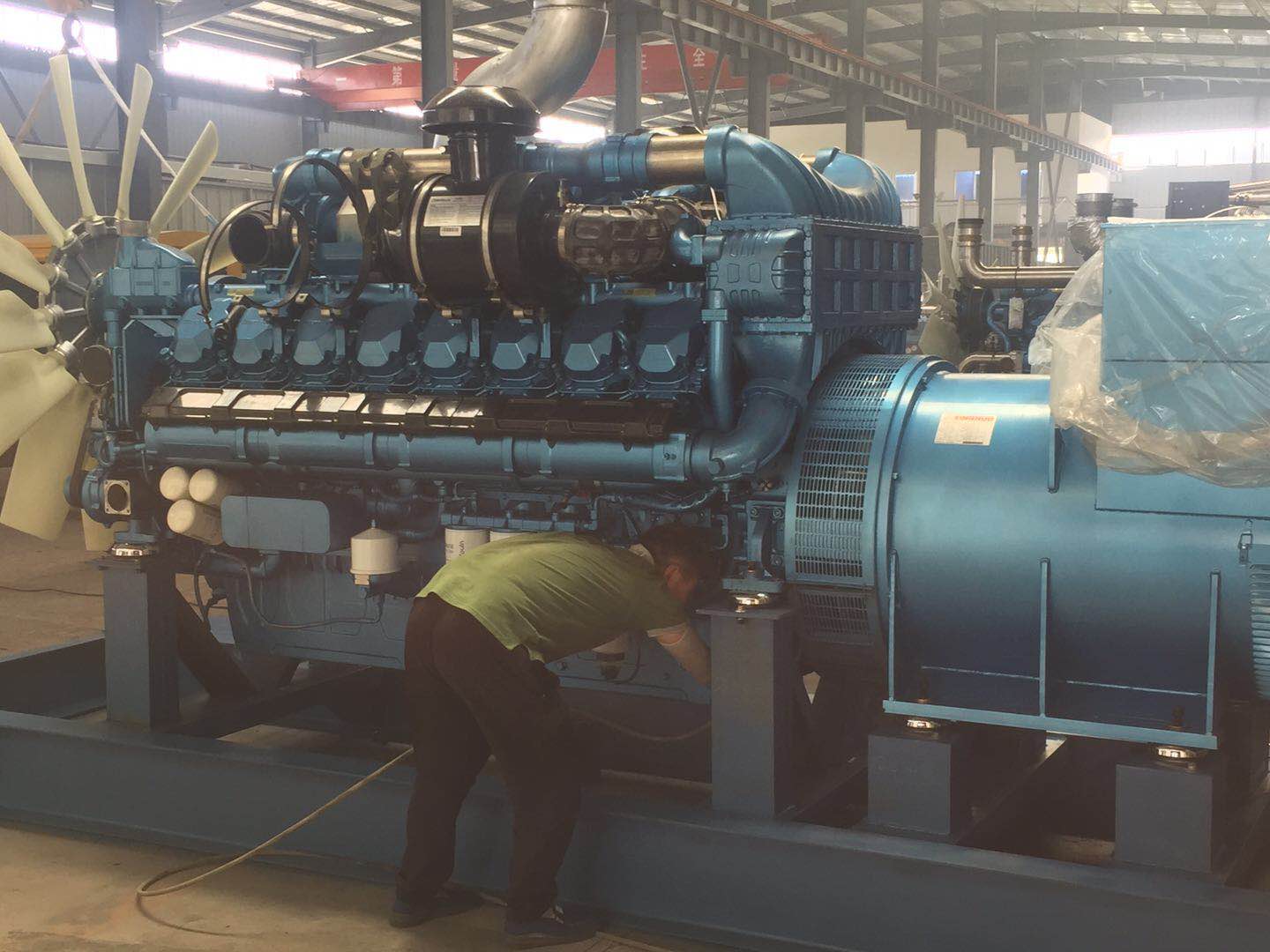

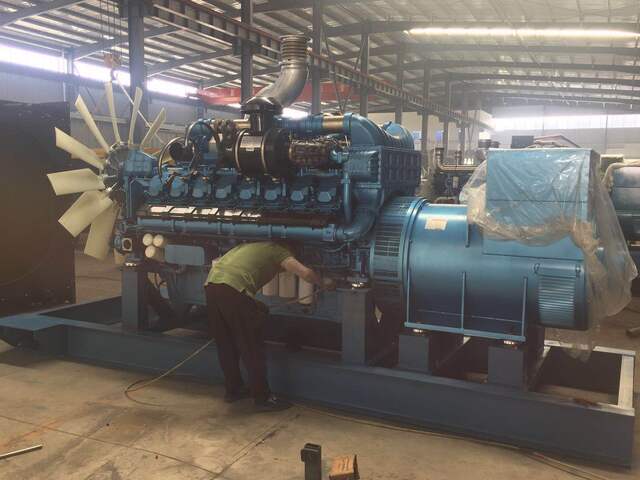

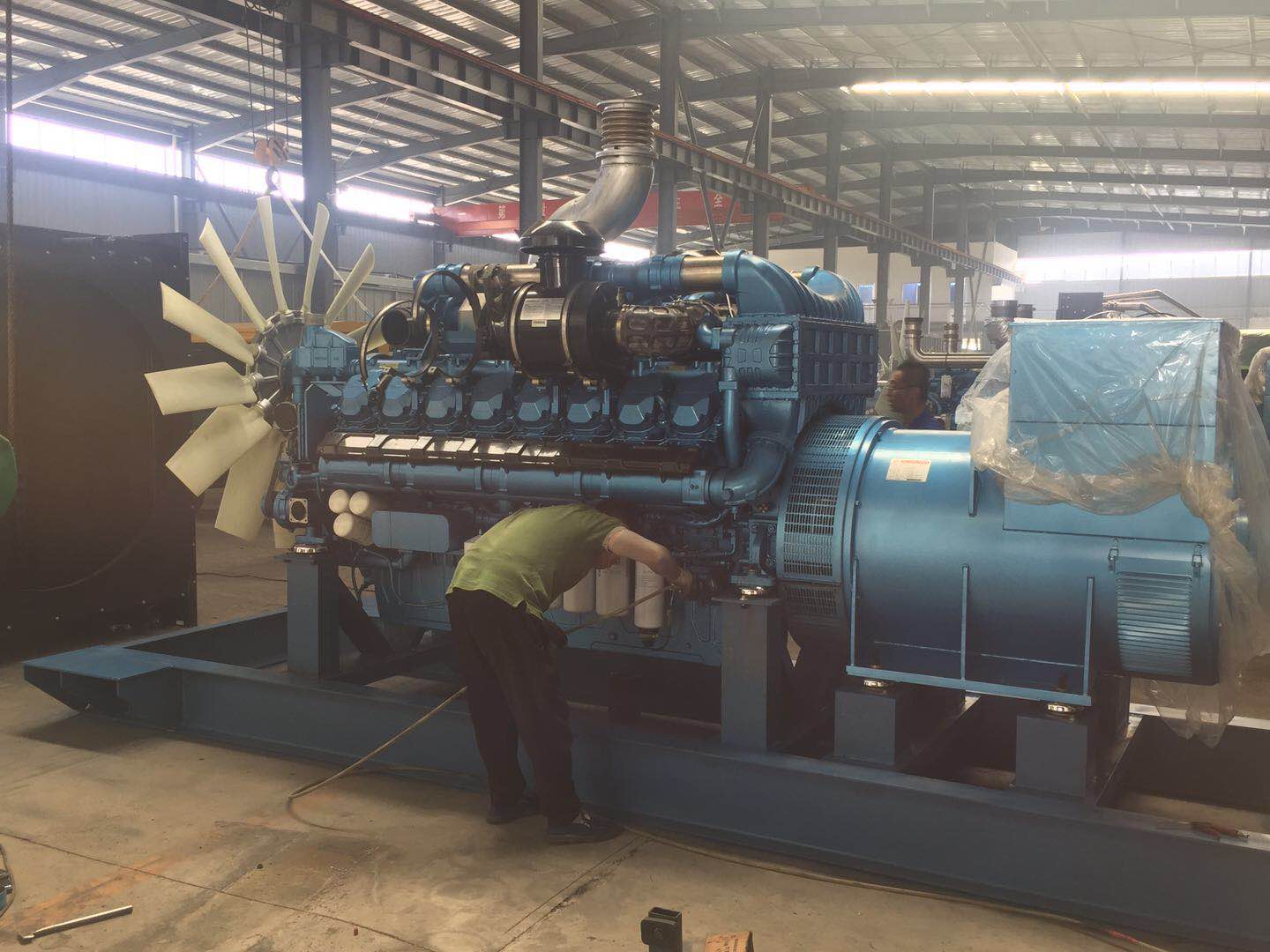

model

BM1500GF

Rated output power (KVA/KW)

1875/1500

Rated output current(A)

2700

Wiring method

Three-phase four-wire

Power Factor

0.8 (hysteresis)

Startup method

24V DC start

Frequency (Hz)

50

Unit weight (kg)

1500

Unit size (length * width * height)

6000 * 2400 * 2450 mm

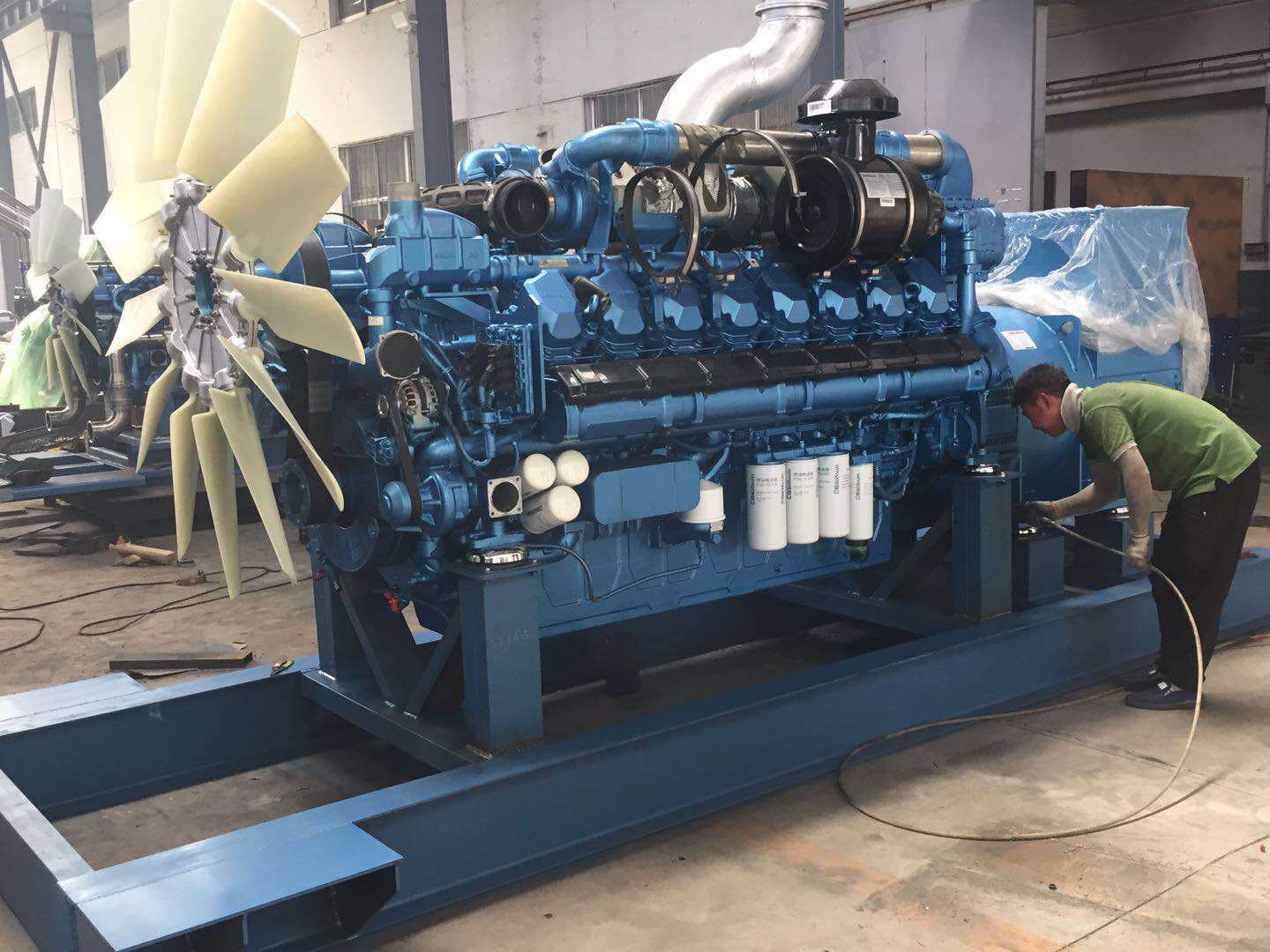

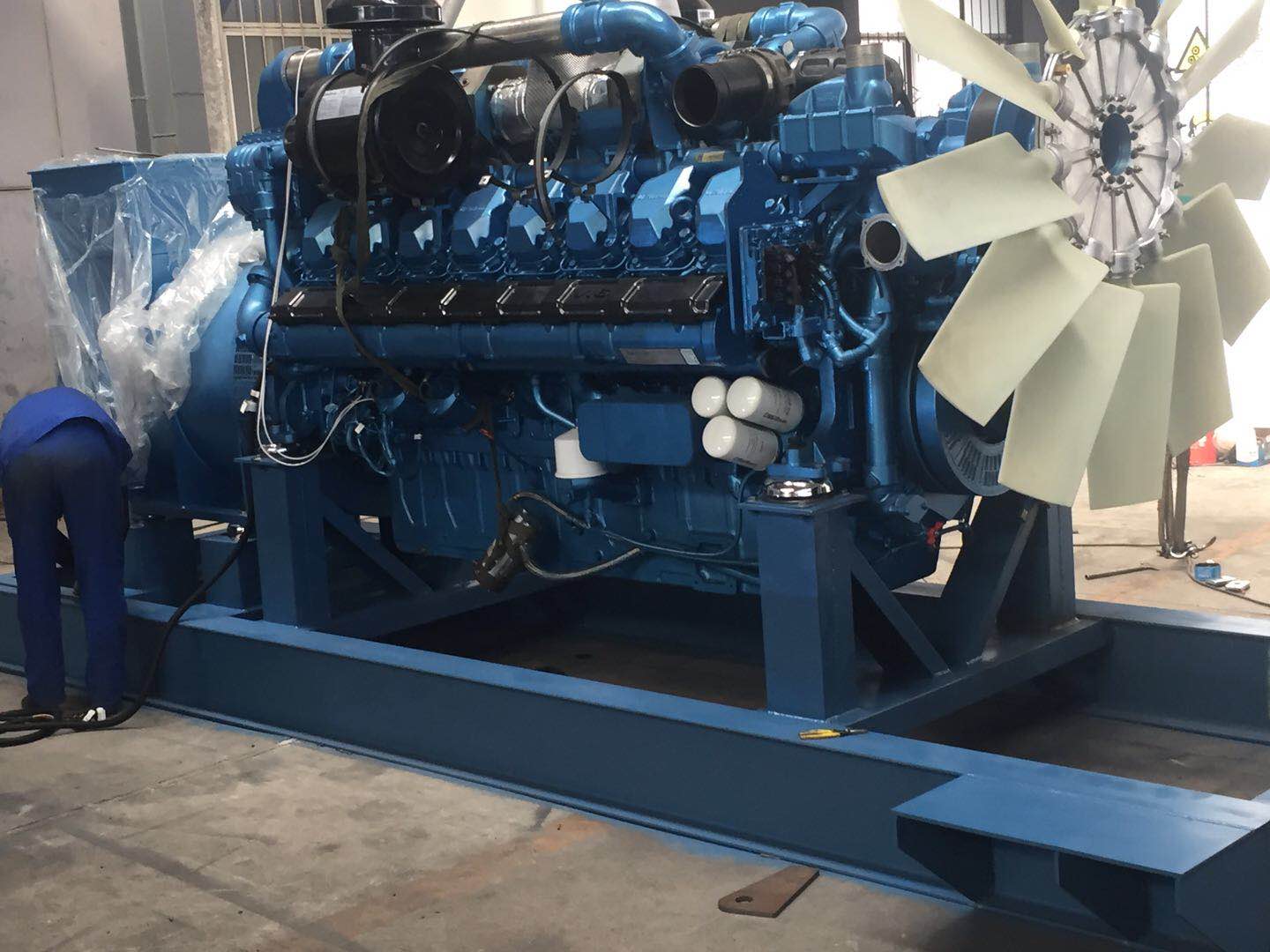

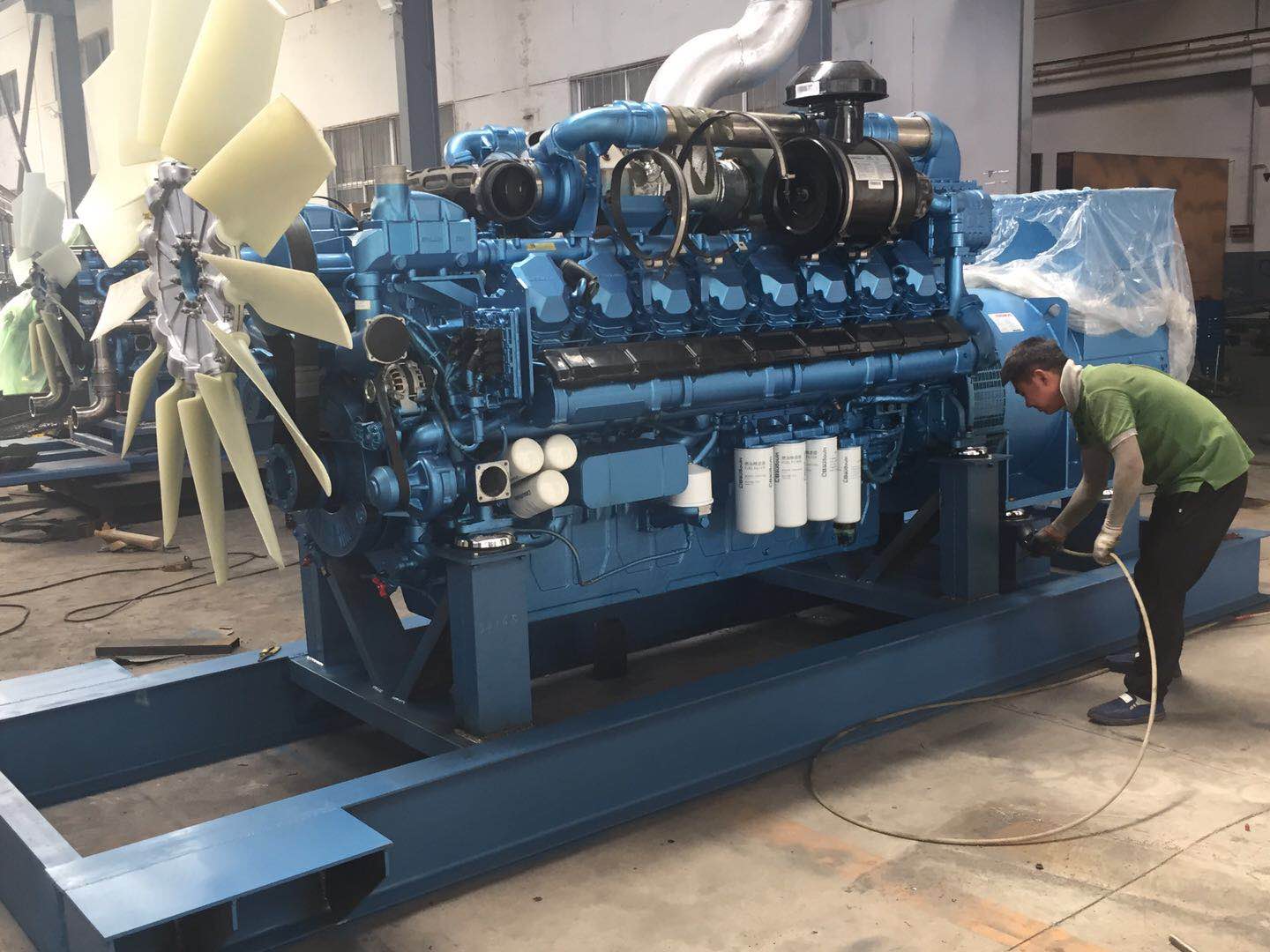

Diesel engine data

Manufacturer

Baudouin (Weifang) Power Co., Ltd.

model

16M33D1680E310

Rated speed(Rpm)

1500

Engine power ( kW )

1680

Cylinder stroke

150*185

Compression ratio

15:1

Number of cylinders

16

Fuel consumption rate ( g/kwh )

≤210

Speed regulation mode

Electronically controlled high pressure common rail

Engine oil fuel consumption ratio ( % )

≤ 0.5

Displacement ( L )

52.3

Air intake method

Exhaust gas turbocharger

Engine cooling method

Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard

Generator data

Manufacturer

Wuxi Tesla Generator Co., Ltd.

model

NF454F

Power(KVA/KW)

1875/1500

Protection level

IP22

Insulation class

H

Power Factor

0.8 lag

No-load voltage adjustment range

≥±5%

Voltage control method

AVR

efficiency(%)

88.4

Wiring method

Three-phase four-wire
