150KW Guangxi Yuchai diesel generator set parameters:

Technical parameters of Yuchai 150KW diesel generator set
Unit model: GF-150
Unit power: 150KW
Generator model: SF-150-4
Frequency: 50Hz
Output voltage: 400/230V
Speed: 1500rpm
Power factor: COSΦ=0.8 (lagging)
Unit fuel consumption (g/Kw*h): ≤200
Maximum output current (A): 270
Number of phases/wires: three-phase four-wire
Noise LP7m: ≤92db
Dimensions (mm): 2500*880*1650
Weight: 1400Kg
2. Technical parameters of Yuchai YC6A245L-D21 diesel engine (150KW)
1. Diesel engine model: YC6A245L-D21
2. Standby power: 181.5KW
3. Manufacturer: Yuchai Machinery Co., Ltd.
4. Cooling start: closed water cooling
5. Starting method: 24V DC start
6. Intake method: supercharged intercooling
7. Number of cylinders: 6
8. Cylinder diameter/stroke: 108/132mm
9. Total cylinder displacement L: 7.252
10. Cooling water capacity L: 24
11. Engine oil capacity L: 20
12. Engine oil consumption rate (g/Kw*h): ≤0.2
13. Compression ratio: 17.5:1
14. Fuel supply method: direct injection
15. Cylinder arrangement: vertical
16. Intercooling method: water intercooling
17. Fuel model: domestic 0# light diesel
18. Speed control method: electronic speed control
19. Engine oil model: WD/40
20. Overall dimensions (mm): 1425*800*1160
21. Weight: 725Kg

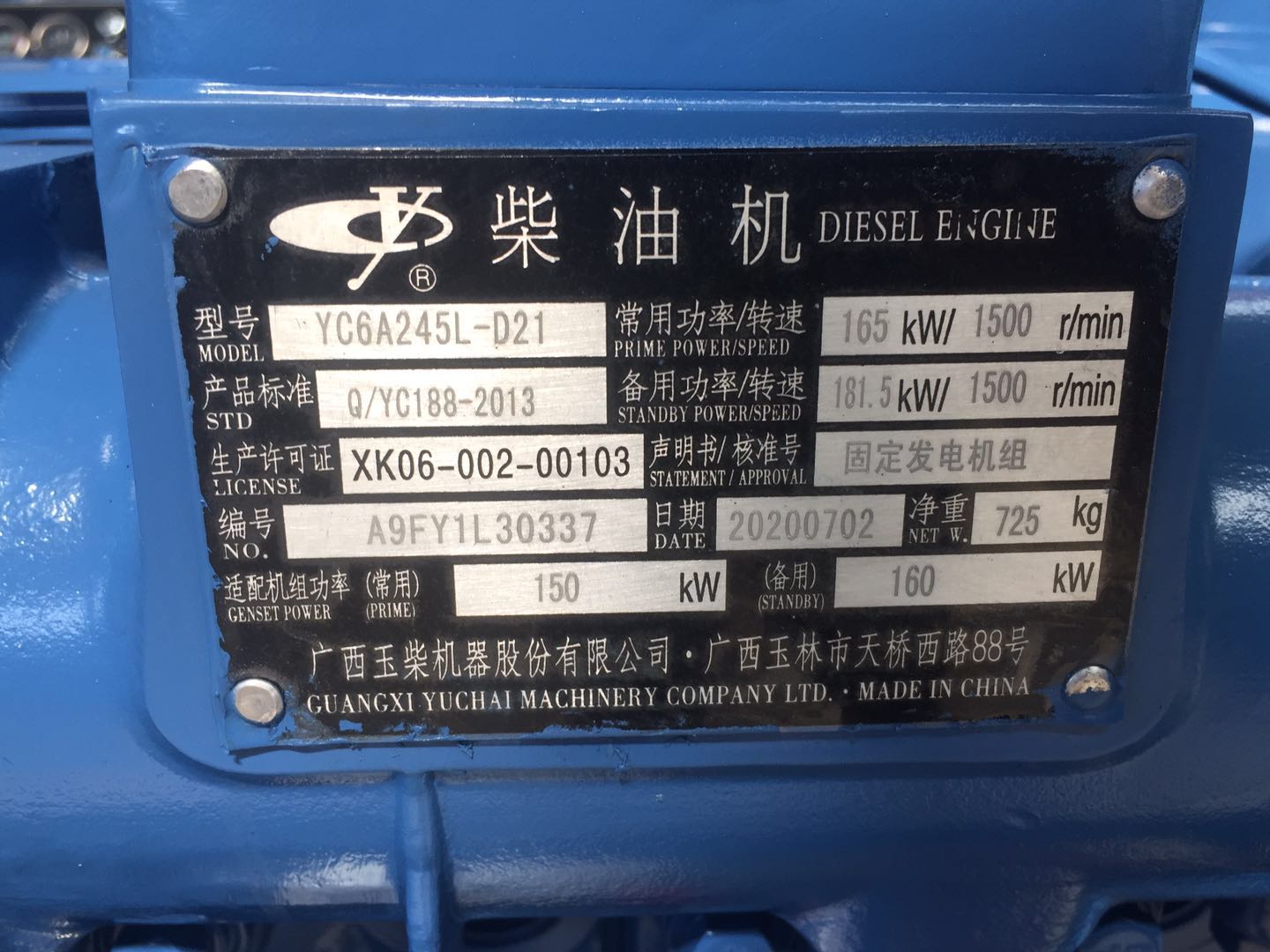

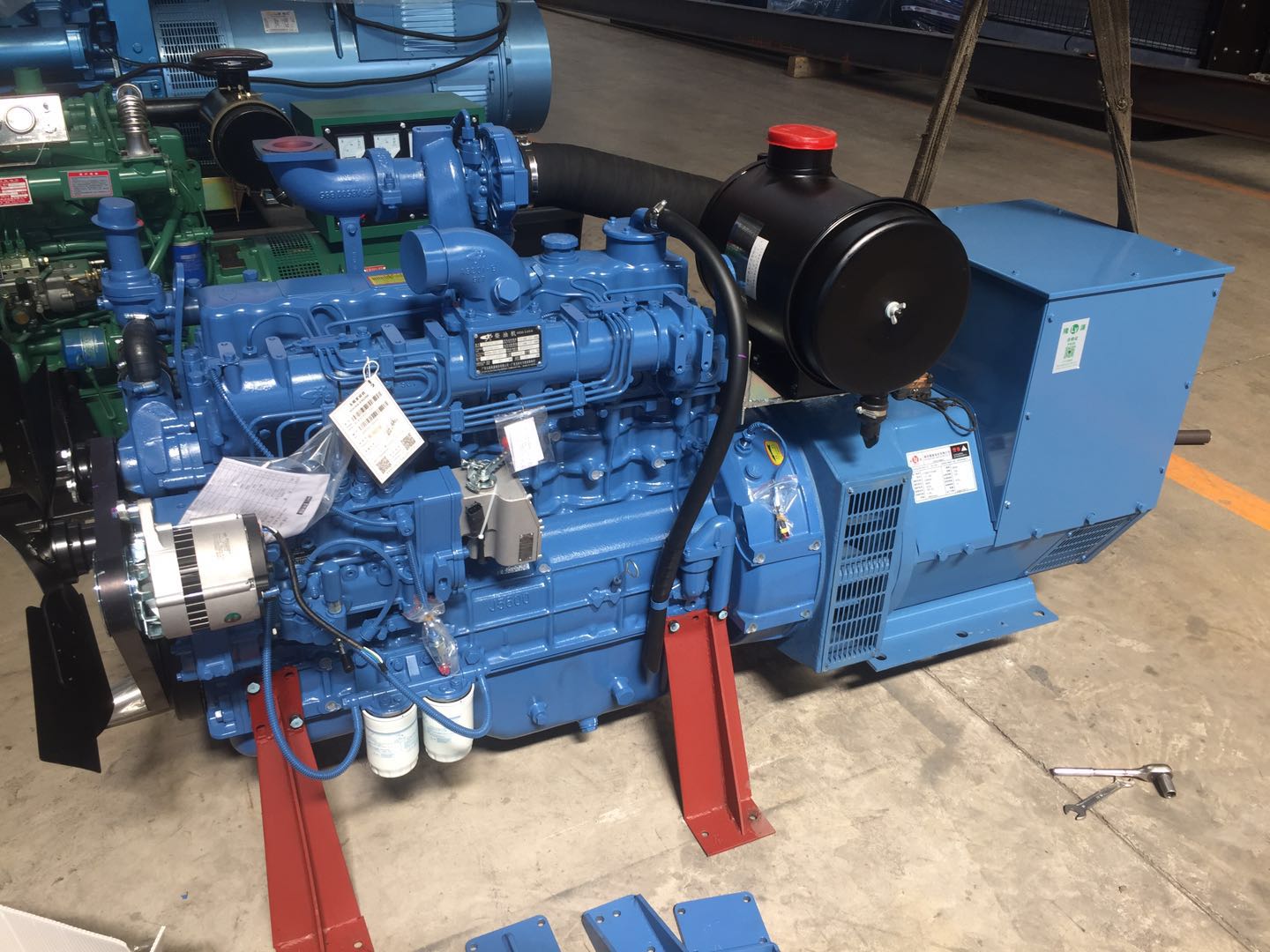

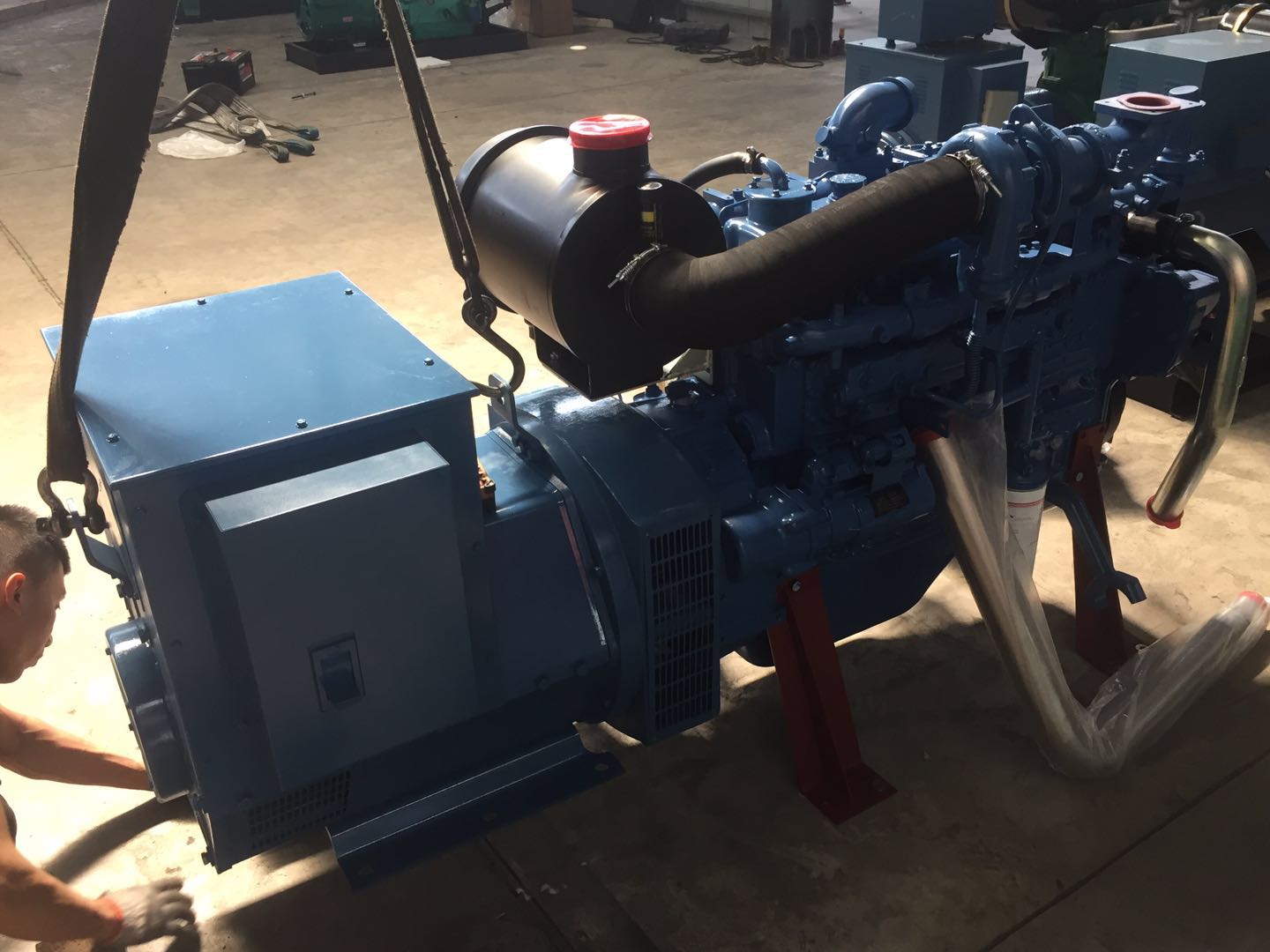

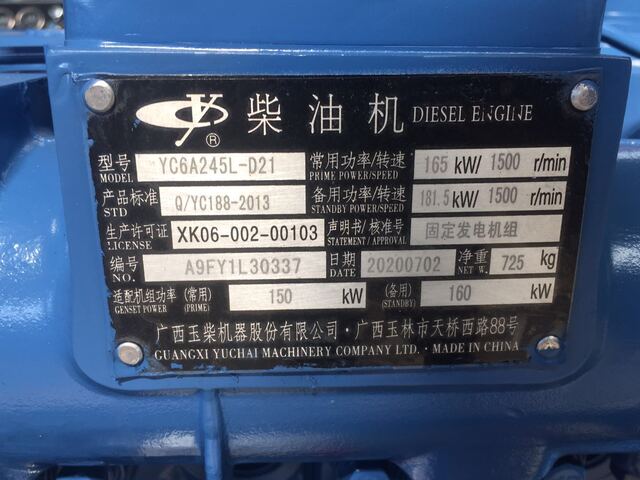

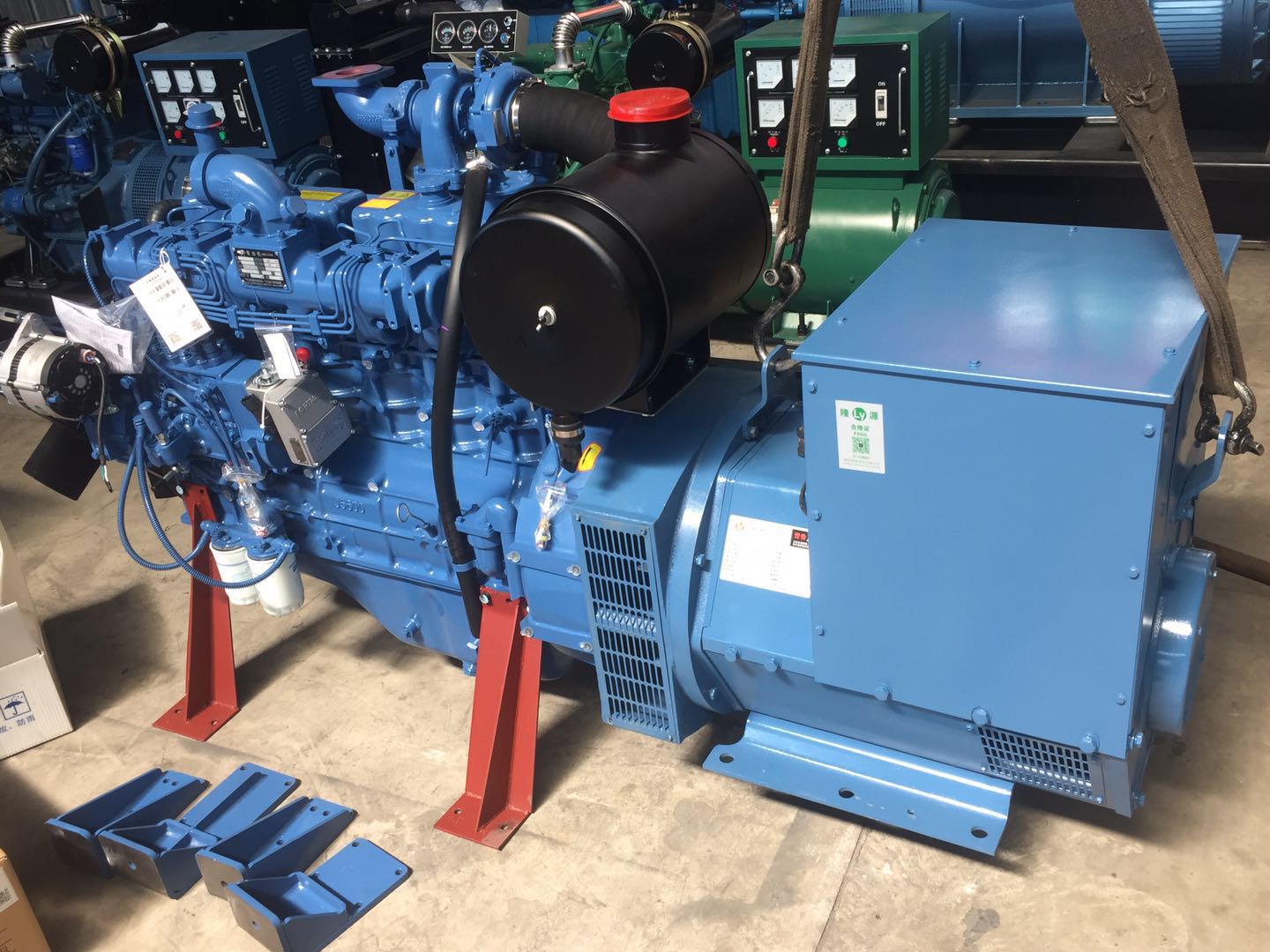

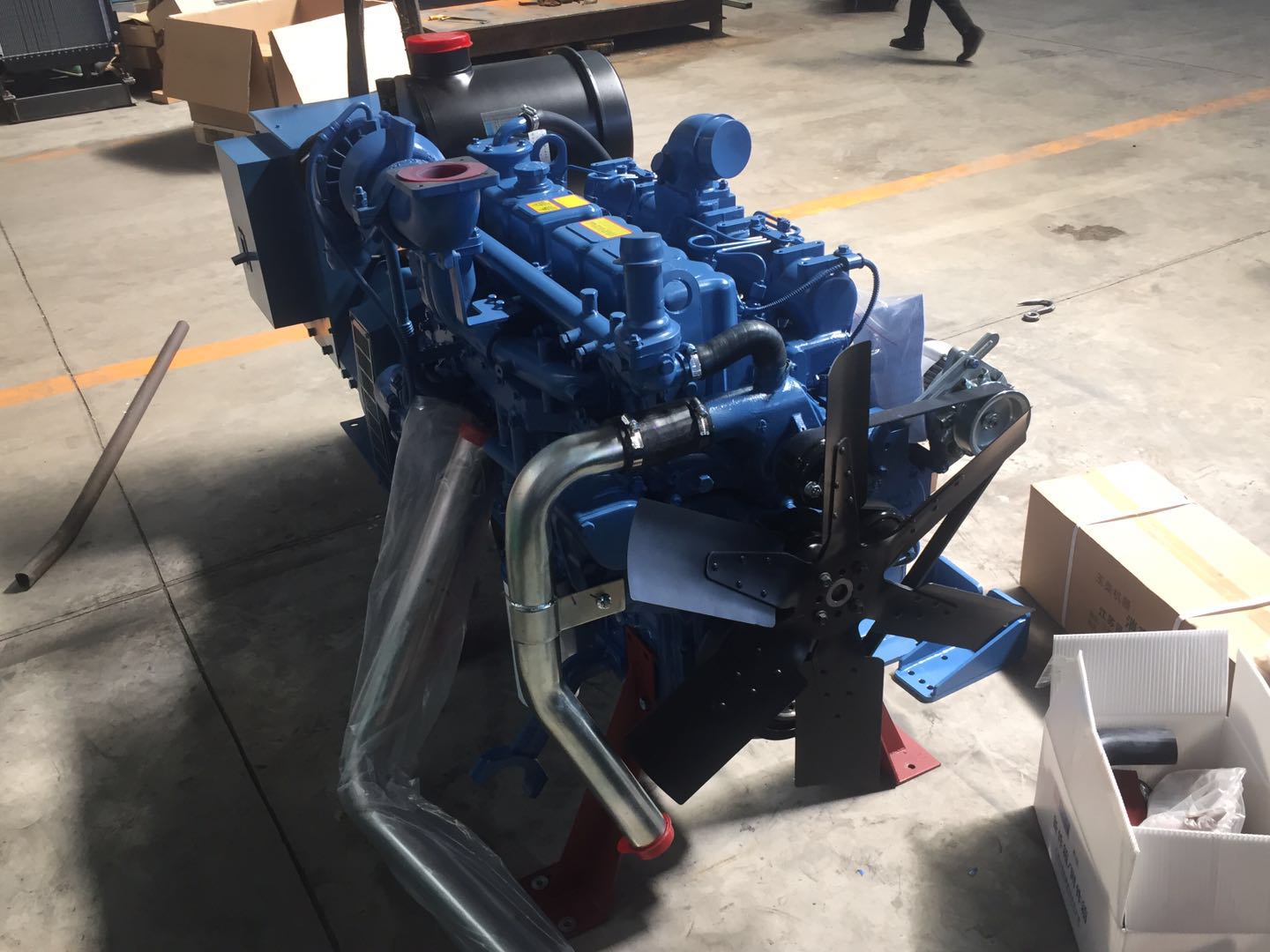

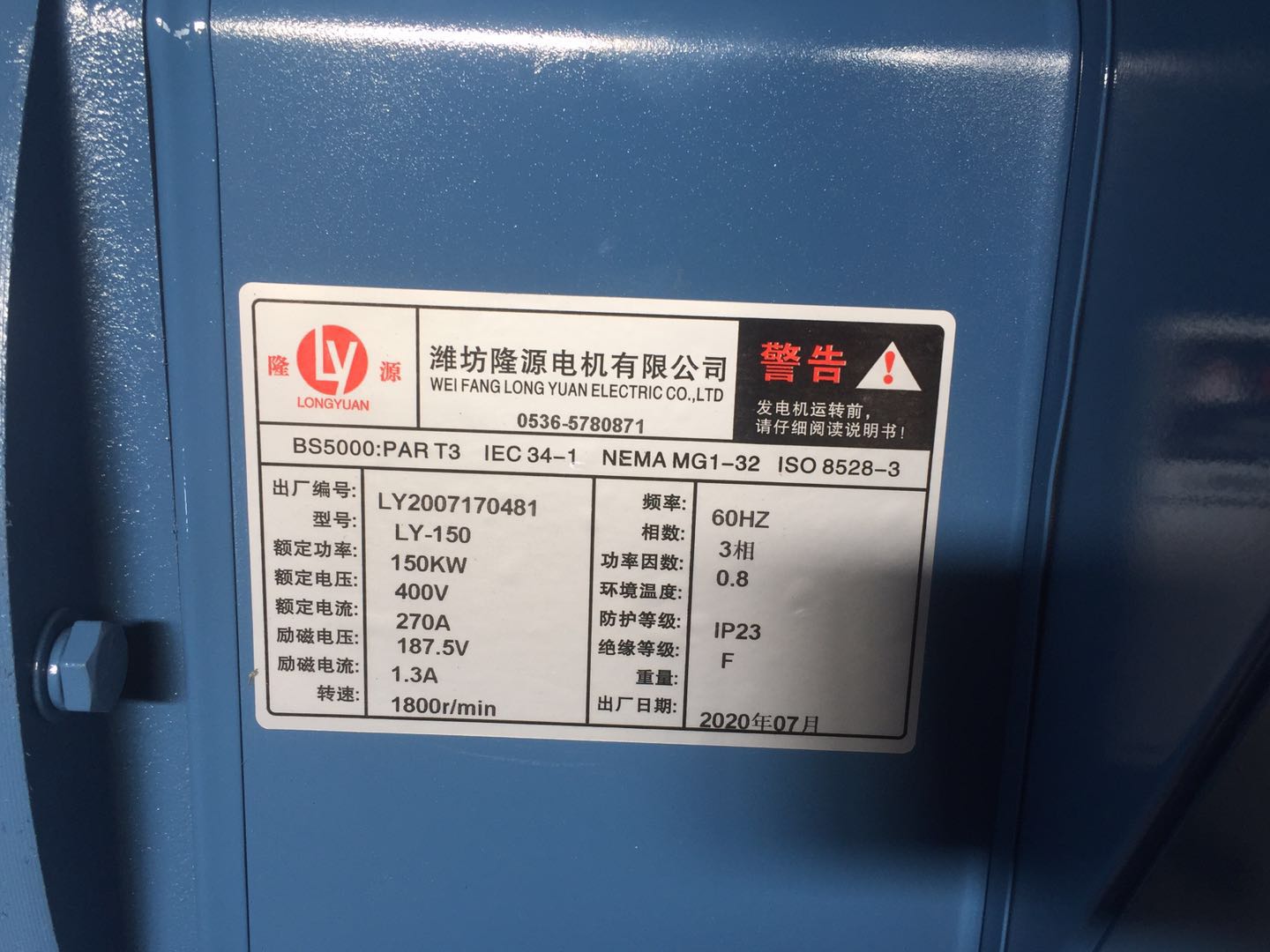

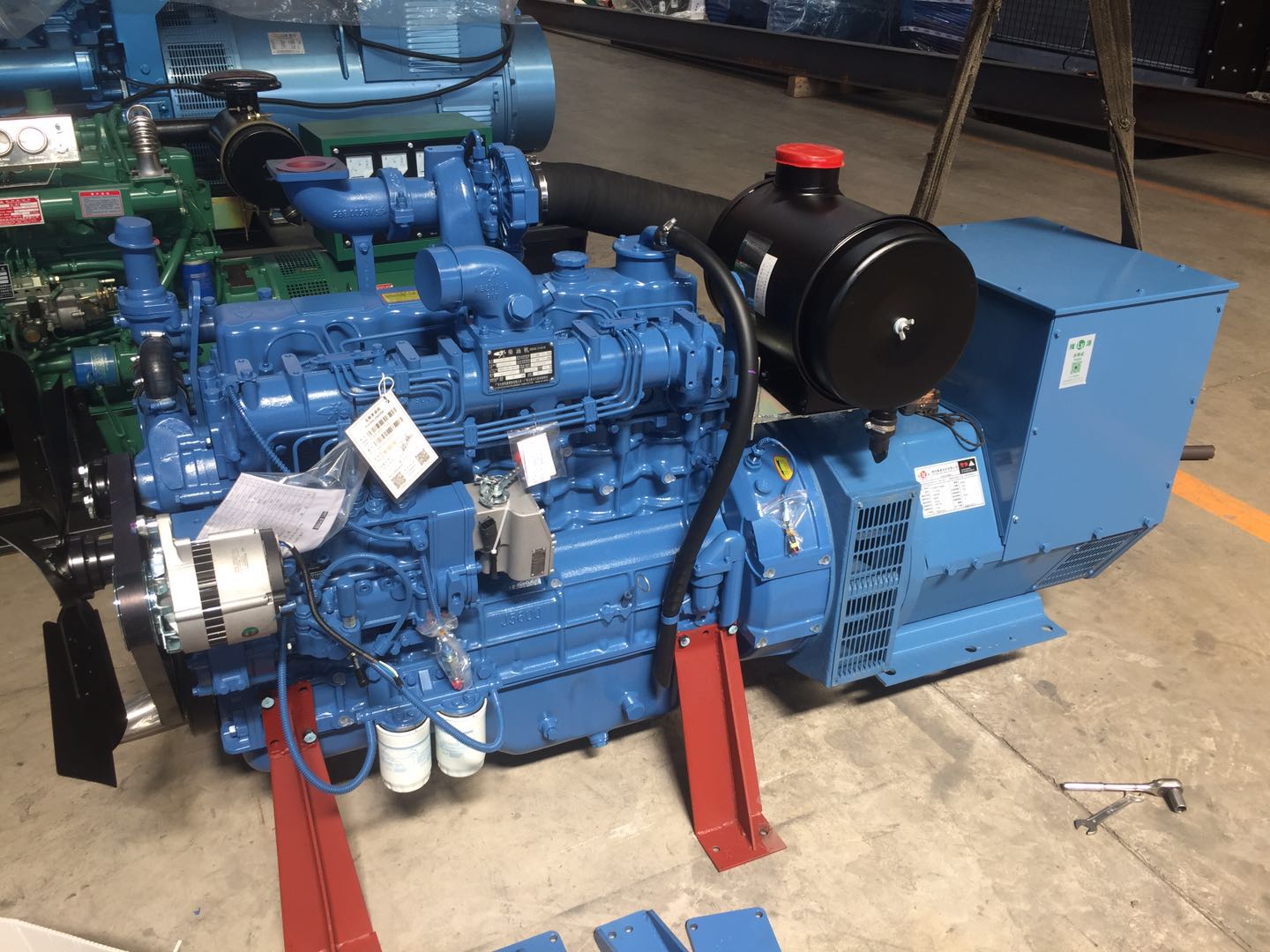

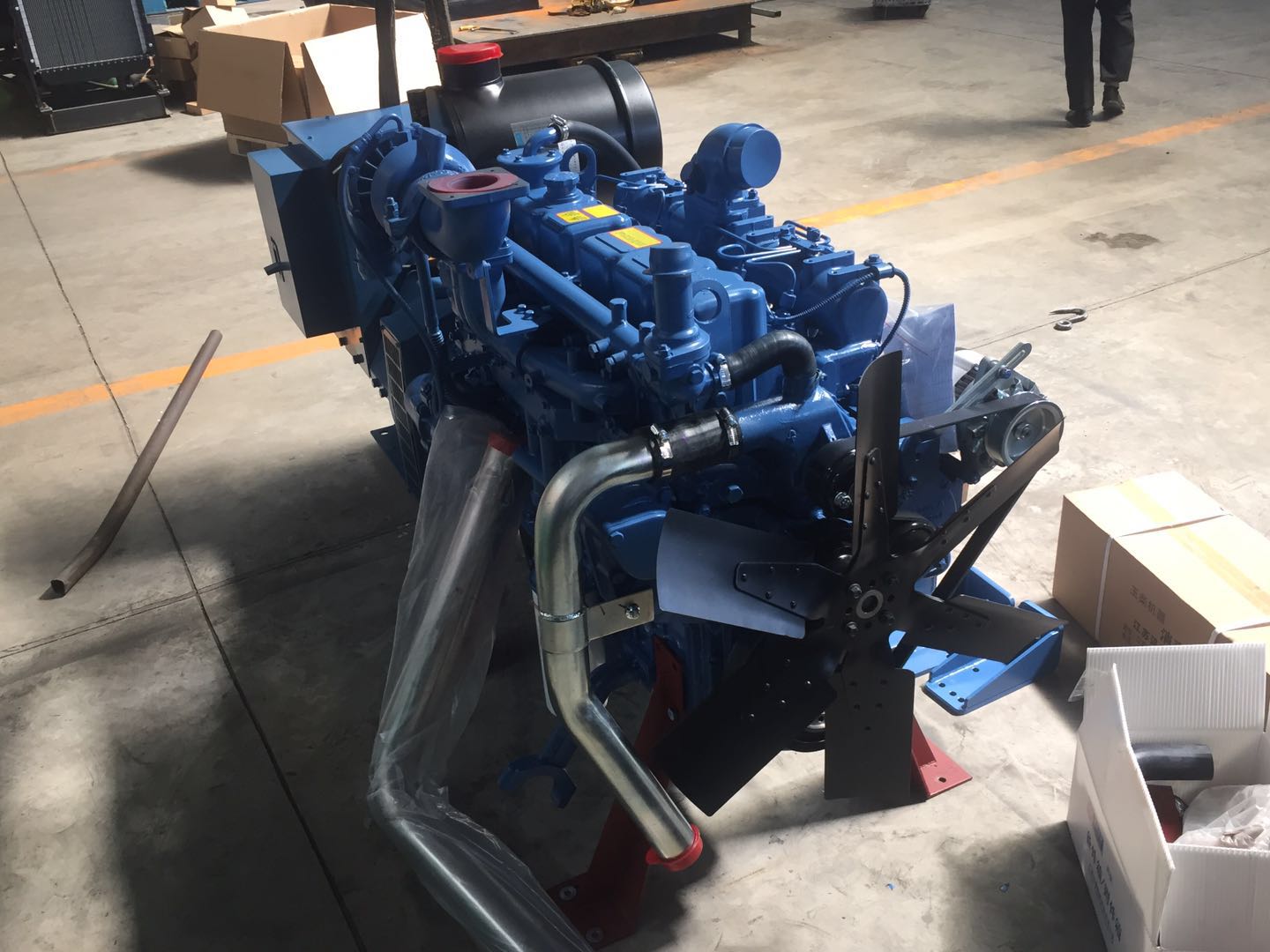

150KW Guangxi Yuchai diesel generator set equipment pictures:
