400KW Guangxi Yuchai diesel generator set Model YC6T660-D31



400KW diesel generator set equipment parameters:

Technical parameters of Yuchai 4000KW diesel generator set
1. Unit model: GF-400
2. Unit power: 400KW

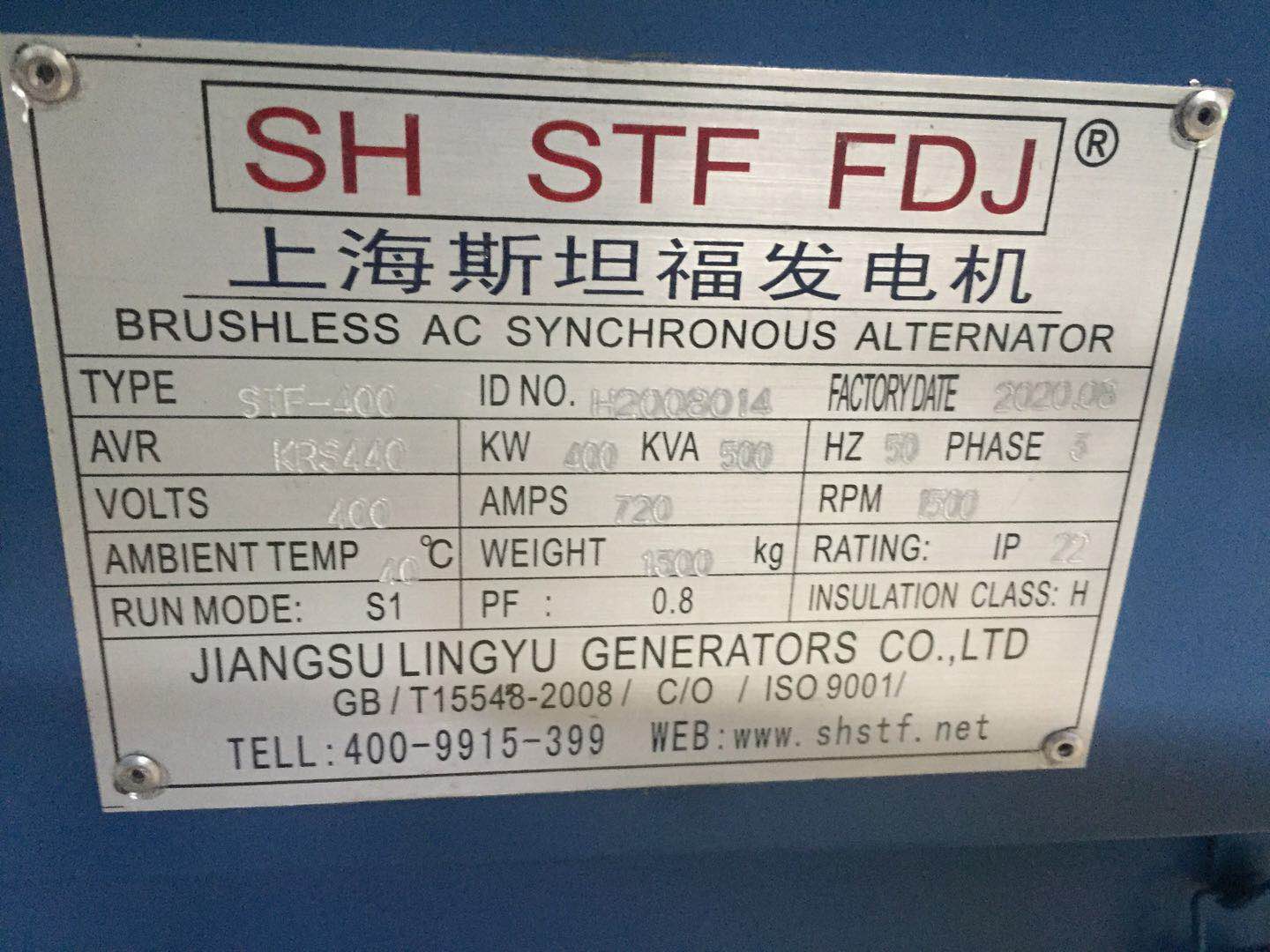

3. Generator model: SF-400-4
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): ≤195
9. Output current (A): 720
10. Number of phases/wires: three-phase four-wire
11. Noise LP7m: ≤92db
12. Overall dimensions (mm): 3500*1040*1900
13. Weight: 3600Kg

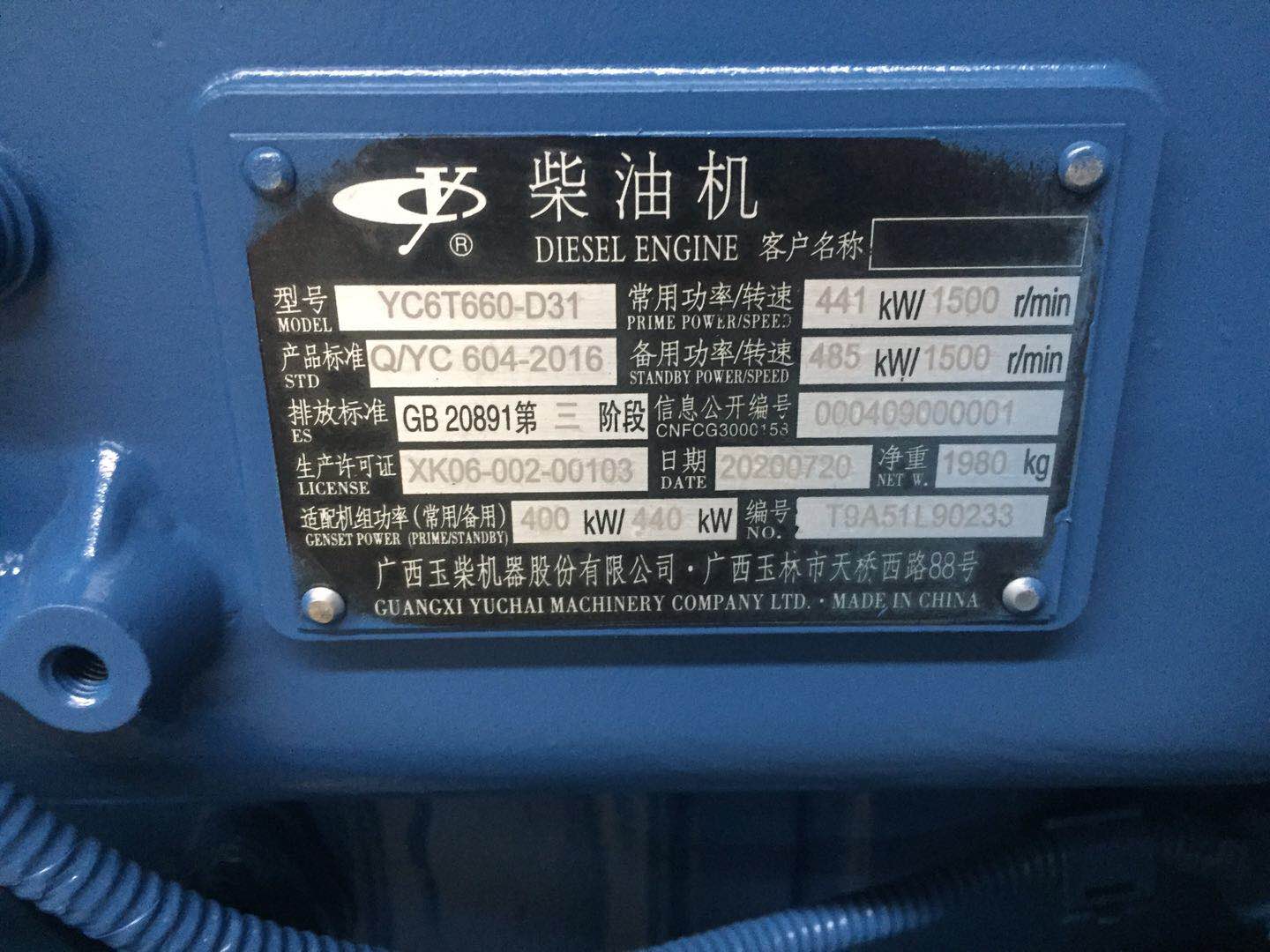

II. Technical parameters of Yuchai YC6T660-D31 diesel engine (400KW)
1. Diesel engine model: YC6T660-D31
2. Standby power: 485KW
3. Cooling start: Closed water cooling
4. Starting method: 24V DC start
5. Intake method: Supercharged intercooling
6. Number of cylinders: 6
7. Cylinder diameter/stroke: 145/165mm
8. Total cylinder displacement L: 16.35
9. Fuel supply method: Electronic injection
10. Emission standard: National III
11. Cylinder arrangement: Vertical
12. Intercooling method: Water intercooling
13. Fuel model: Domestic 0# light diesel
14. Speed control method: Electronically controlled single pump
15. Engine oil model: WD/40

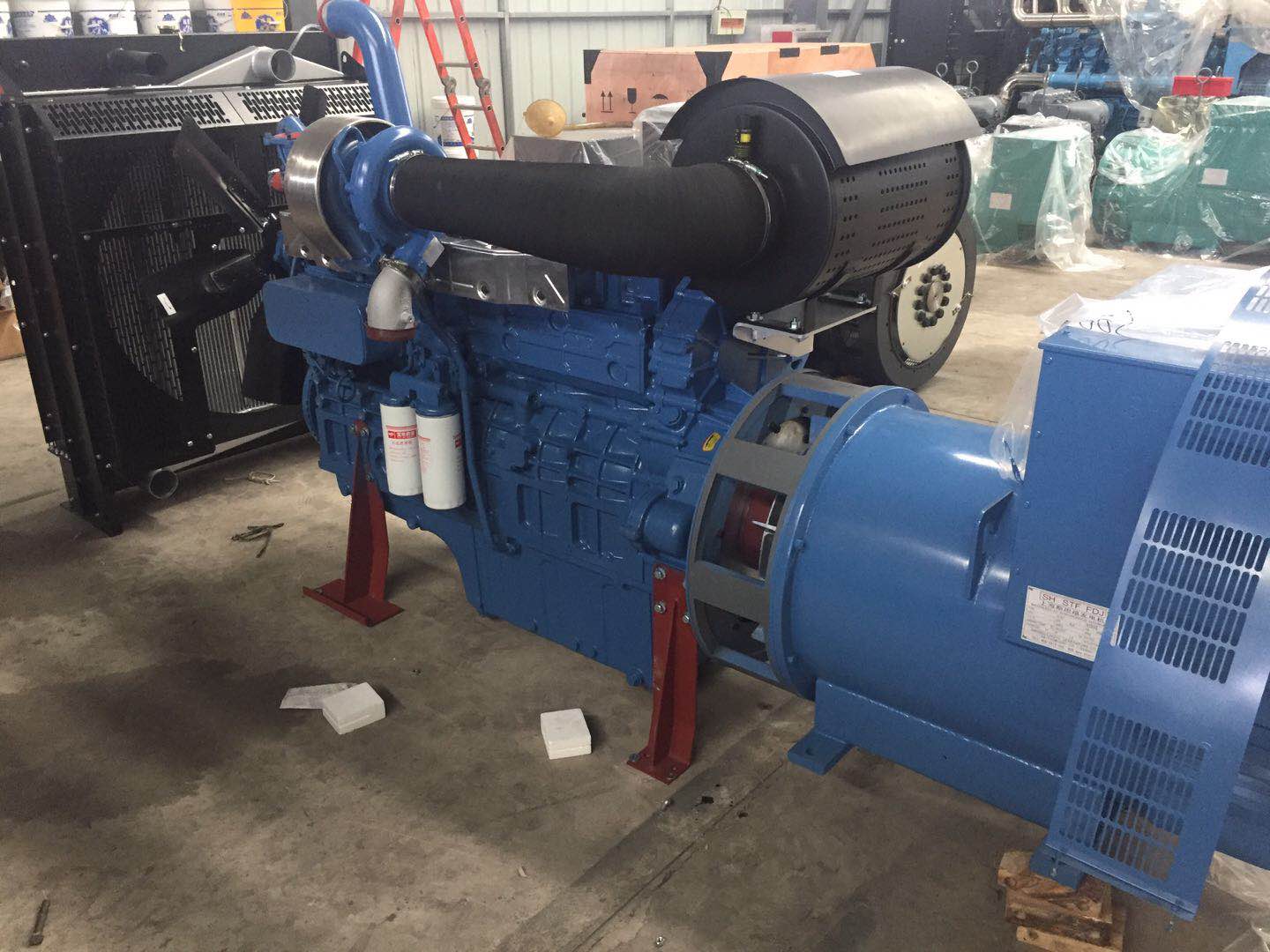

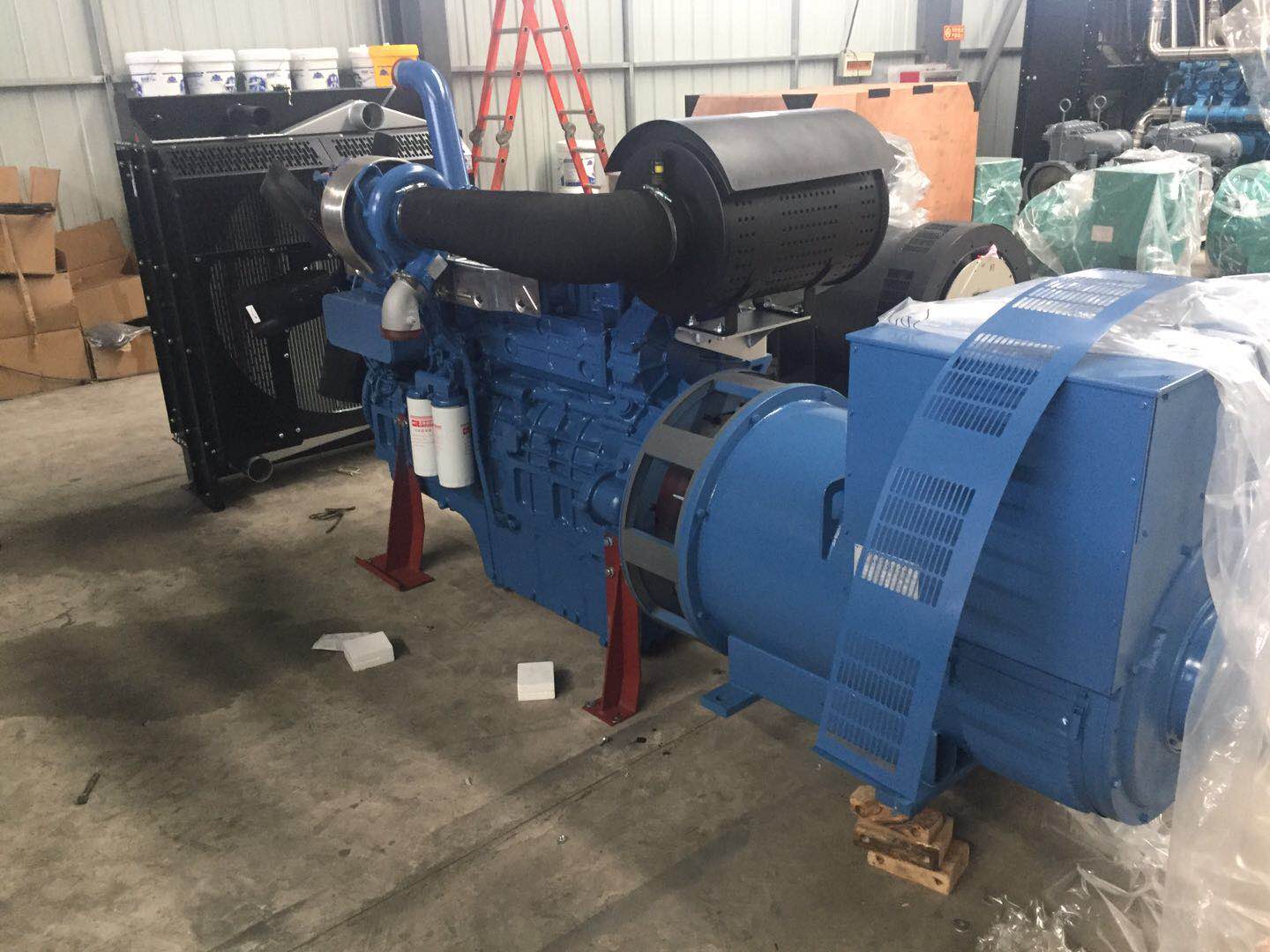

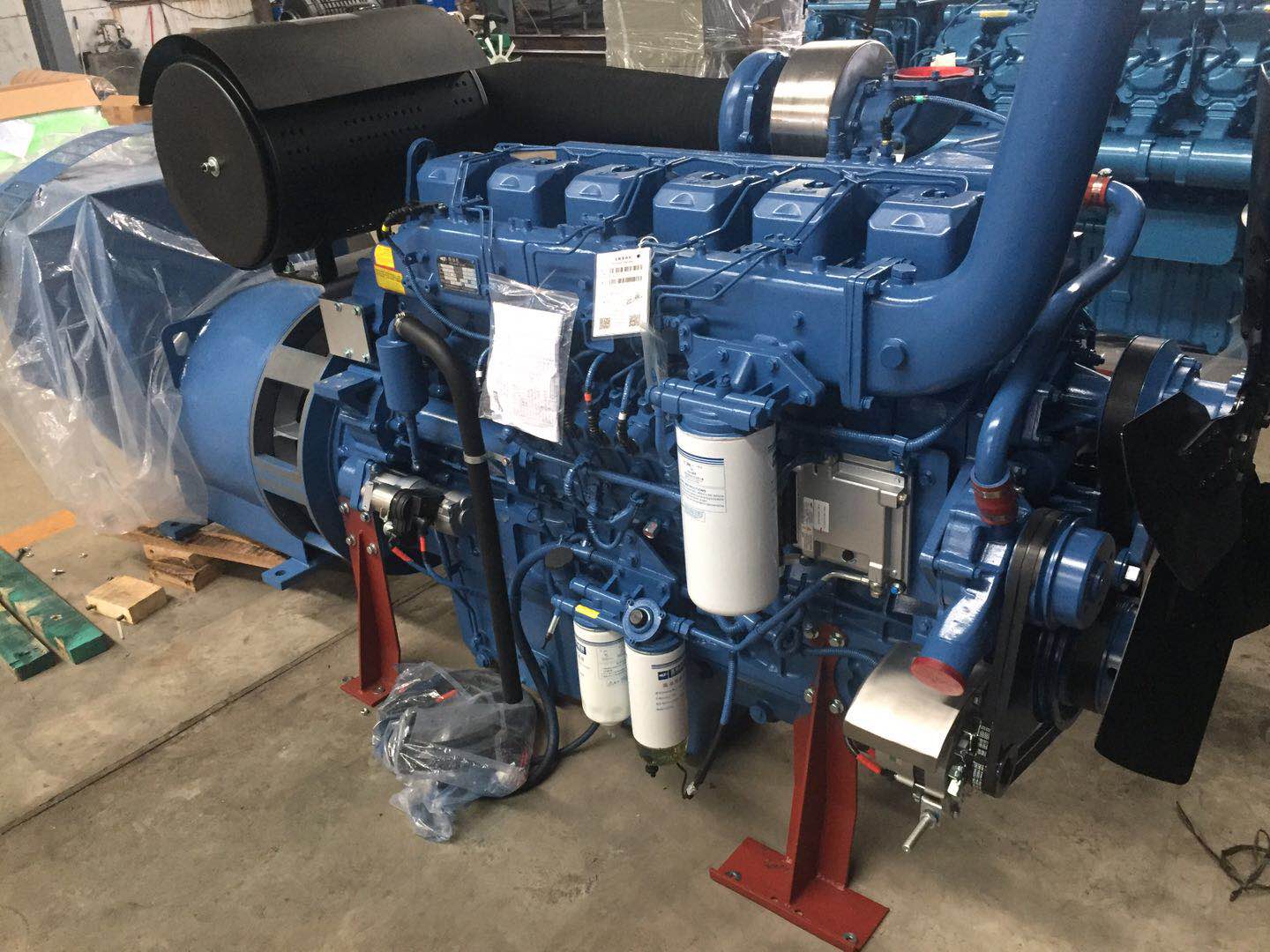

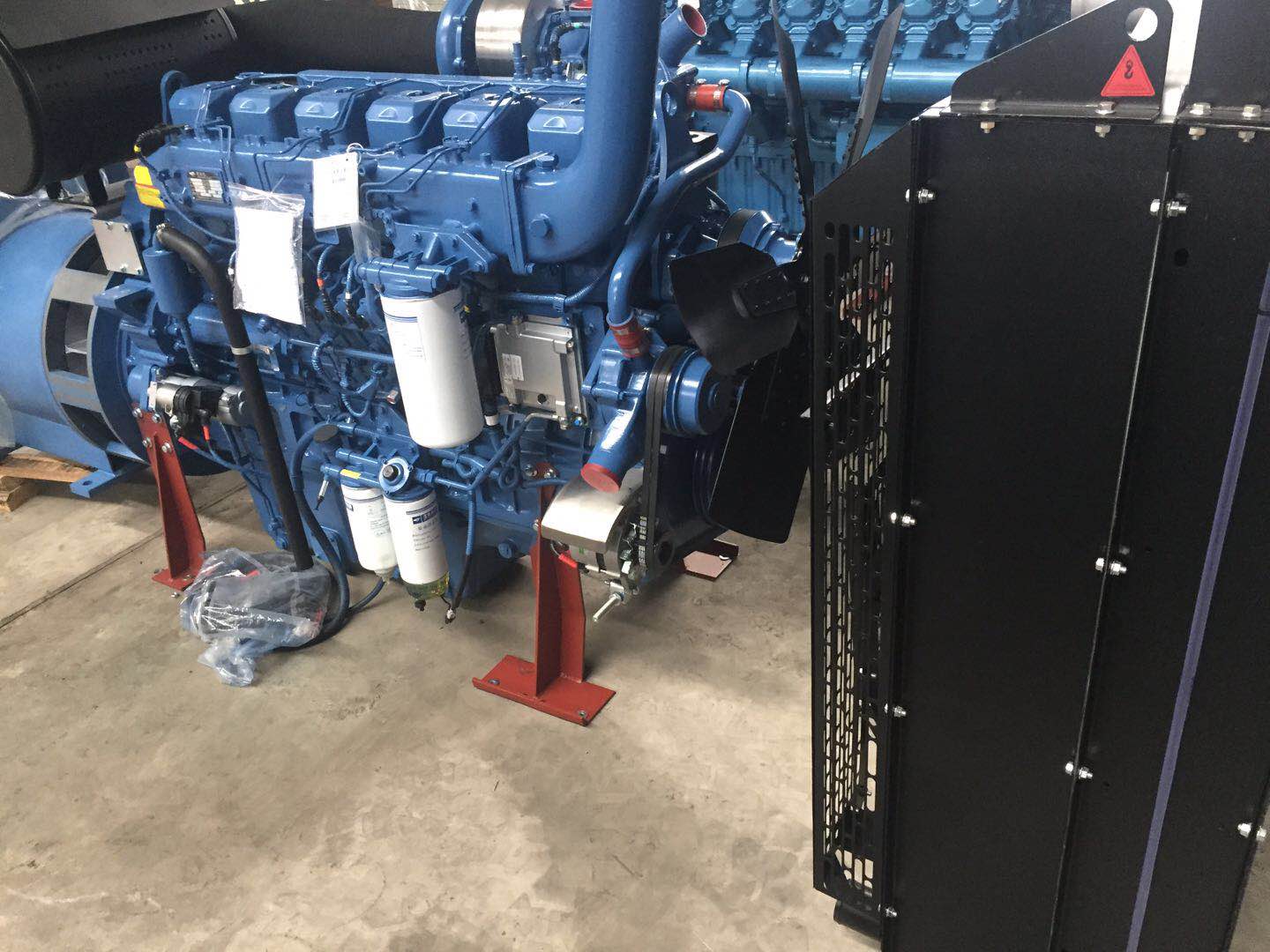

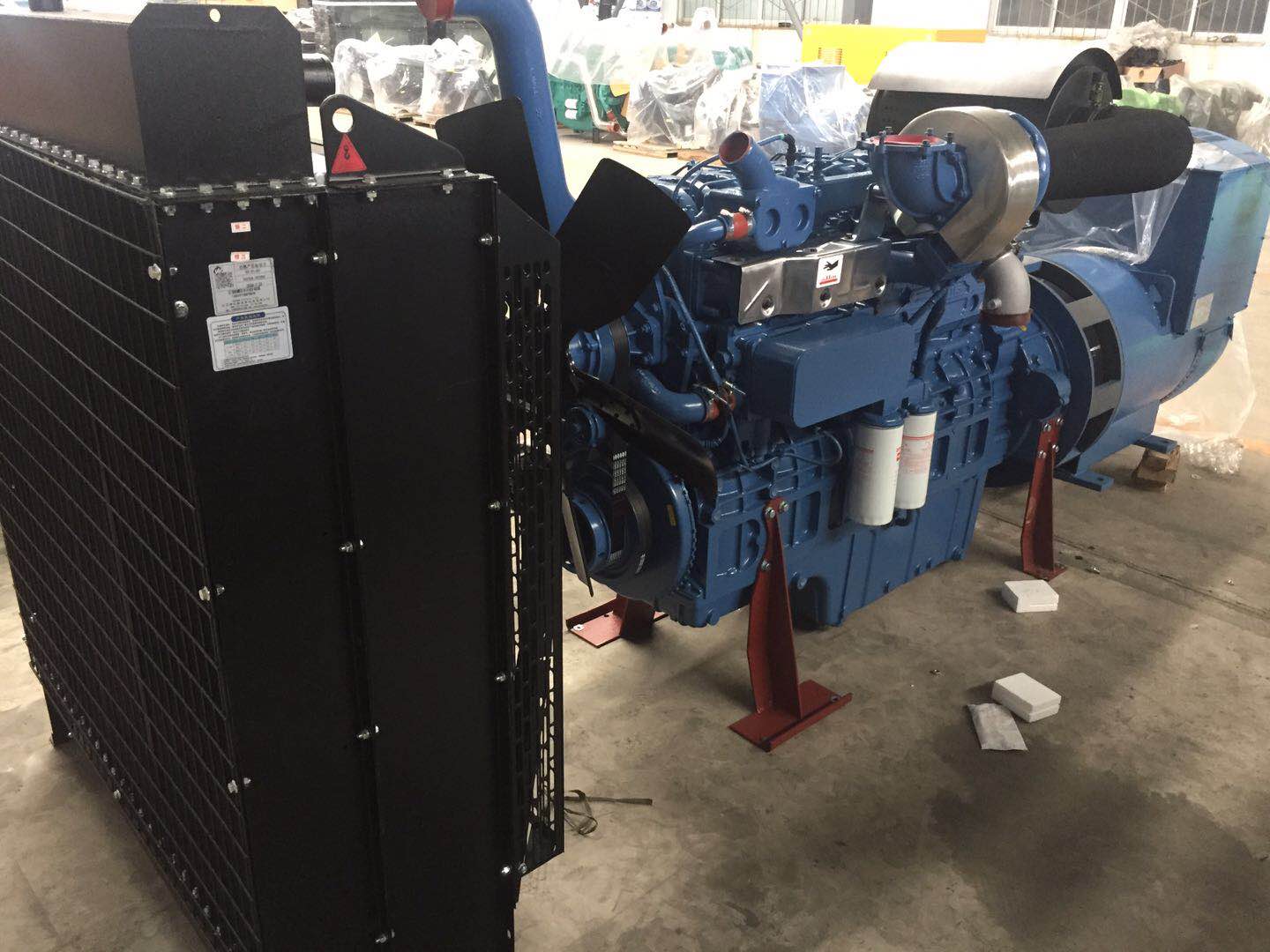

400KW diesel generator equipment pictures:
