400KW Weichai diesel generator set
400KW Weichai diesel generator set
00KW Weichai diesel generator set equipment parameters:
Diesel generator set data | |||
model | BM400 GF | ||
Rated output power (KVA/KW) | 500/400 | Rated output current(A) | 720 |
Wiring method | Three-phase four-wire | Power Factor | 0.8 (hysteresis) |
Startup method | 24V DC start | Frequency (Hz) | 50 |
Unit weight (kg) | 3800 | Unit size (length * width * height) | 3600 * 1100 * 2000 mm |
Diesel engine data | |||

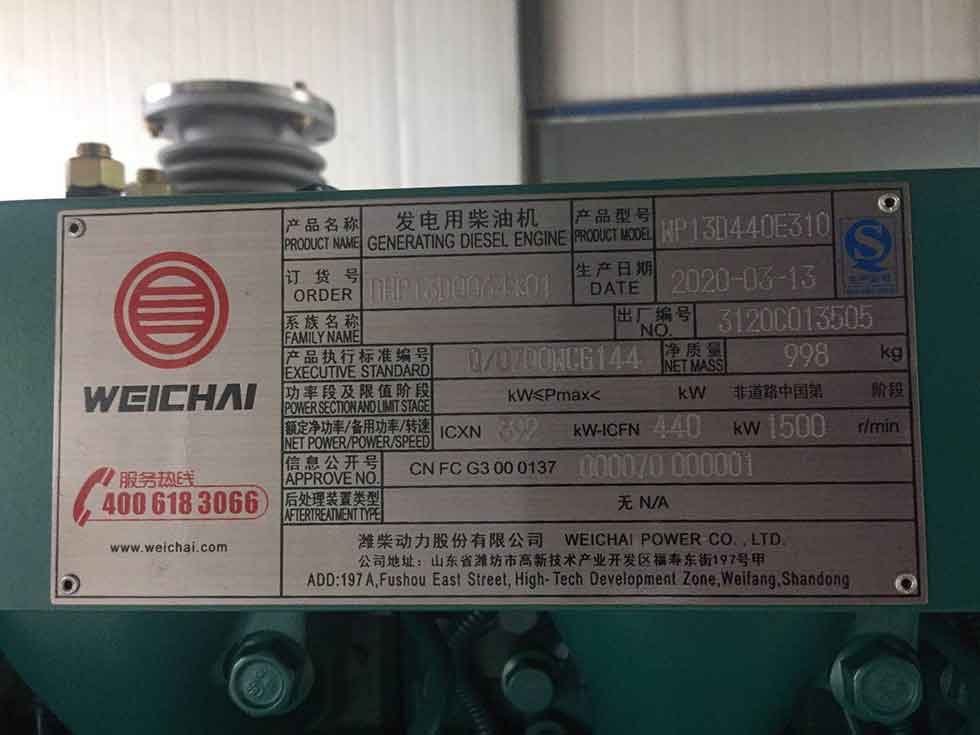

Manufacturer | Weichai Power Co., Ltd. | model | WP13D440E310 |
Rated speed(Rpm) | 1500 | Engine power ( kW ) | 440 |
Cylinder stroke | 127*165 | Compression ratio | 17:1 |
Number of cylinders | 6 | Fuel consumption rate ( g/kwh ) | ≤205 |
Speed regulation mode | Electronic Control | Engine oil fuel consumption ratio ( % ) | ≤ 0.2 |
Displacement ( L ) | 12.54 | Air intake method | Exhaust gas turbocharger |
Engine cooling method | Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard | ||
Generator data | |||
Manufacturer | Jiangsu Lingyu Motor Co., Ltd. | model | STF-400 |
Power(KVA/KW) | 500/400 | Protection level | IP22 |
Insulation class | H | Power Factor | 0.8 lag |
No-load voltage adjustment range | ≥±5% | Voltage control method | AVR |
