800KW Weichai Baudouin diesel generator set

Product Introduction

Generator set technical parameters:
Unit model: BM800GF	Steady-state voltage regulation (%): ≤±1
Output power: 800KW	Voltage fluctuation rate (%): ≤±0.5
Power factor: COSΦ=0.8 (lagging)	Transient voltage regulation rate (%): +20~-15
Output voltage: 400V/230V	Voltage stabilization time (s): ≤1
Output current: 1440A	Steady-state frequency adjustment rate (%): ≤±1
Rated frequency: 50Hz	Frequency fluctuation rate (%): ≤±0.5
Rated speed: 1500rpm	Transient frequency adjustment rate (%): +10~-7
Fuel brand: (standard) 0# light diesel (normal temperature)	Frequency stabilization time (S): ≤3
Dimensions: 4400×2000×2400 (L×W×H mm)	Fuel consumption (100% load): 209g/kW·h
Unit weight: 7440kg	Noise (LP7m): 95dB (A)
Diesel engine technical parameters:
Brand/Origin: Weichai Baudouin	Cooling method: closed water circulation cooling
Oil engine model: 12M26D902E200	Fuel supply method: direct injection
Cylinder number/engine structure: 12/V type	Speed regulation mode: electronic speed regulation
Cylinder stroke: 150×150 mm	Intake mode: turbocharged
Compression ratio: 15.0:1	Overload capacity: 110%
Starting method: DC24V electric start	Speed: 1500rpm
Generator technical parameters:
Brand/Origin: Weifang, Shandong	Protection level: IP23
Motor model: DX-800-4	Wiring method: three-phase four-wire, Y-type connection
Rated power: 800KW	Regulation method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V/230V	Output frequency: 50Hz
Insulation grade: H	Output factor: COSΦ=0.8 (hysteresis)

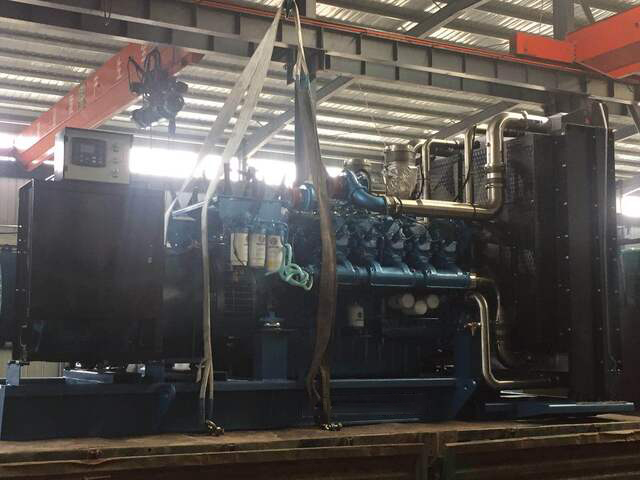

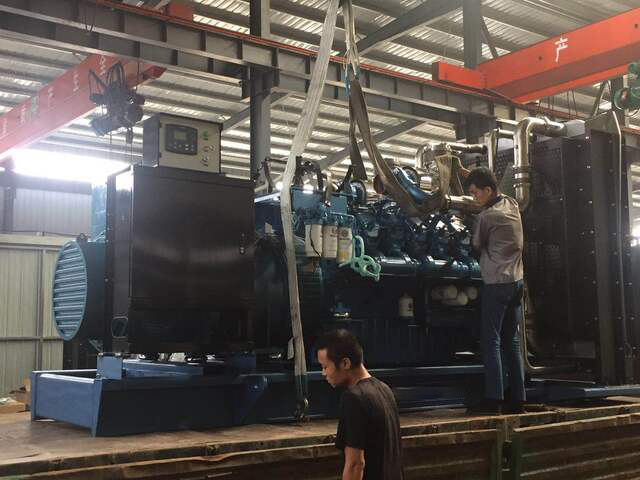

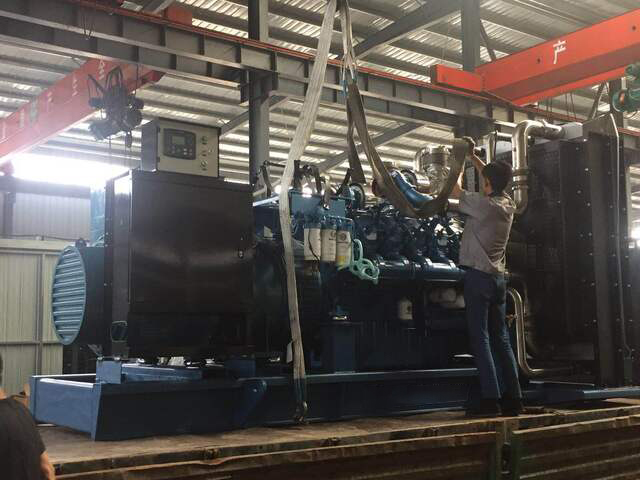

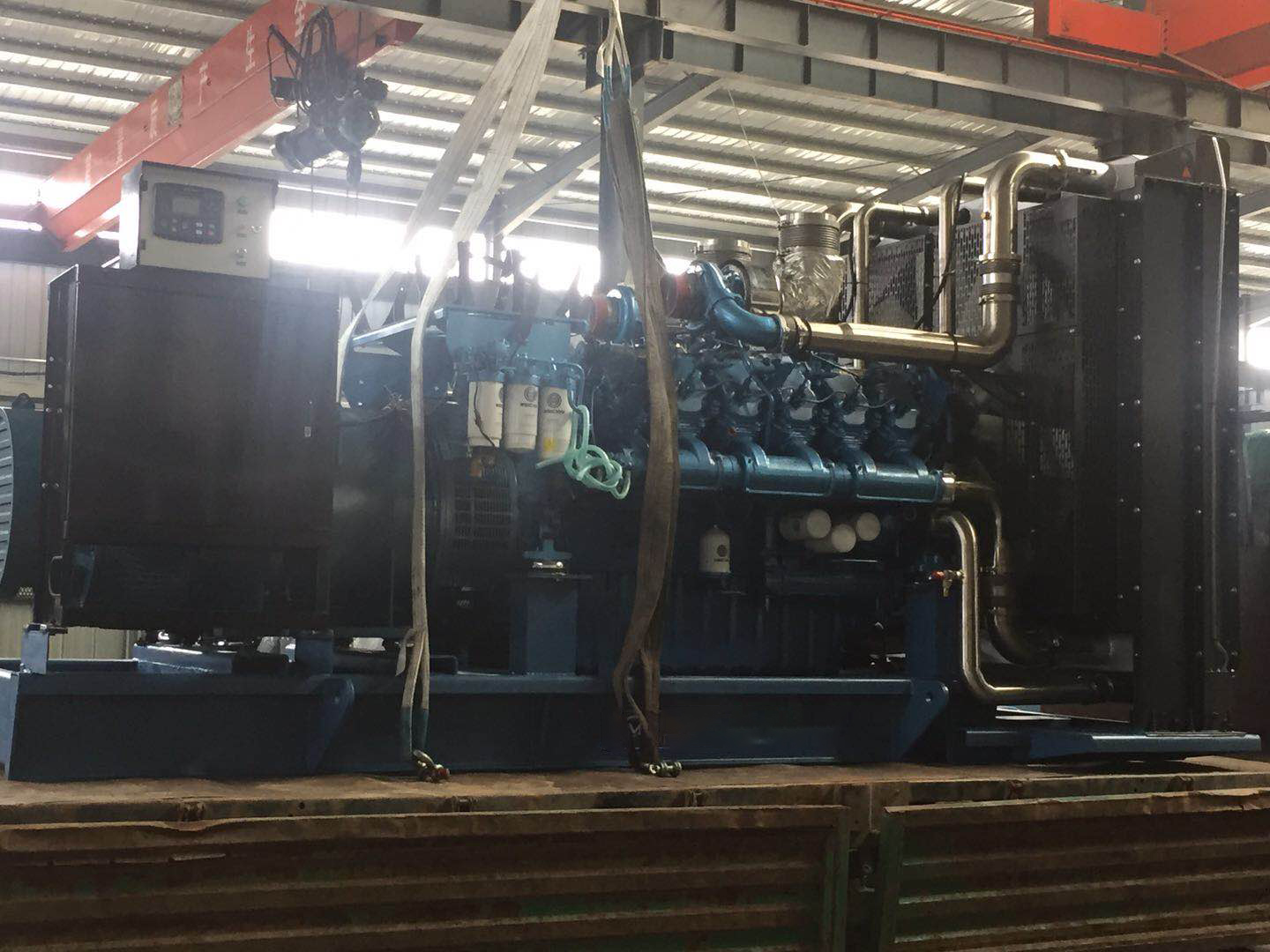

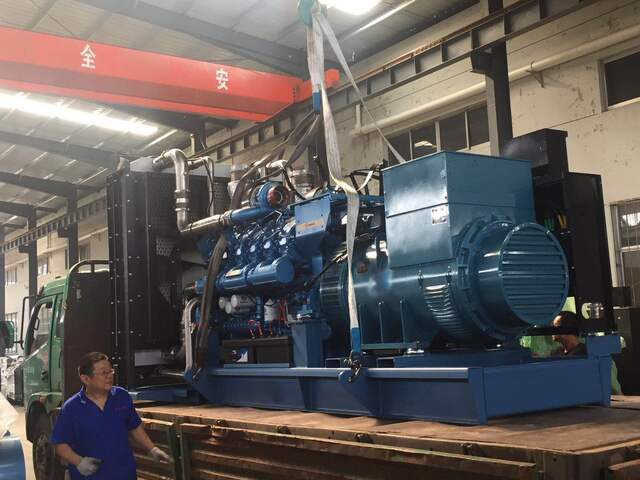

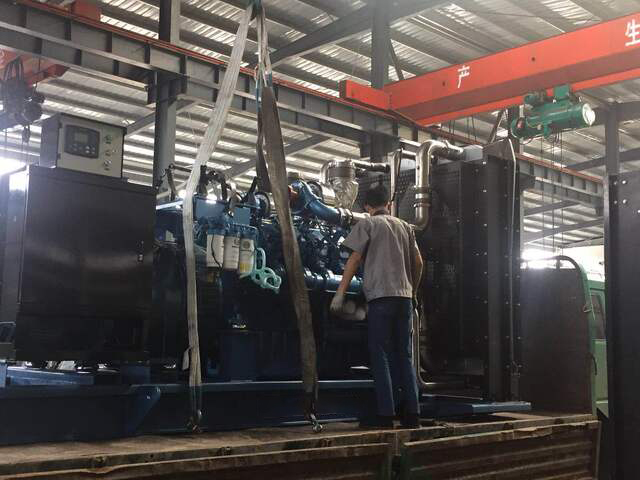

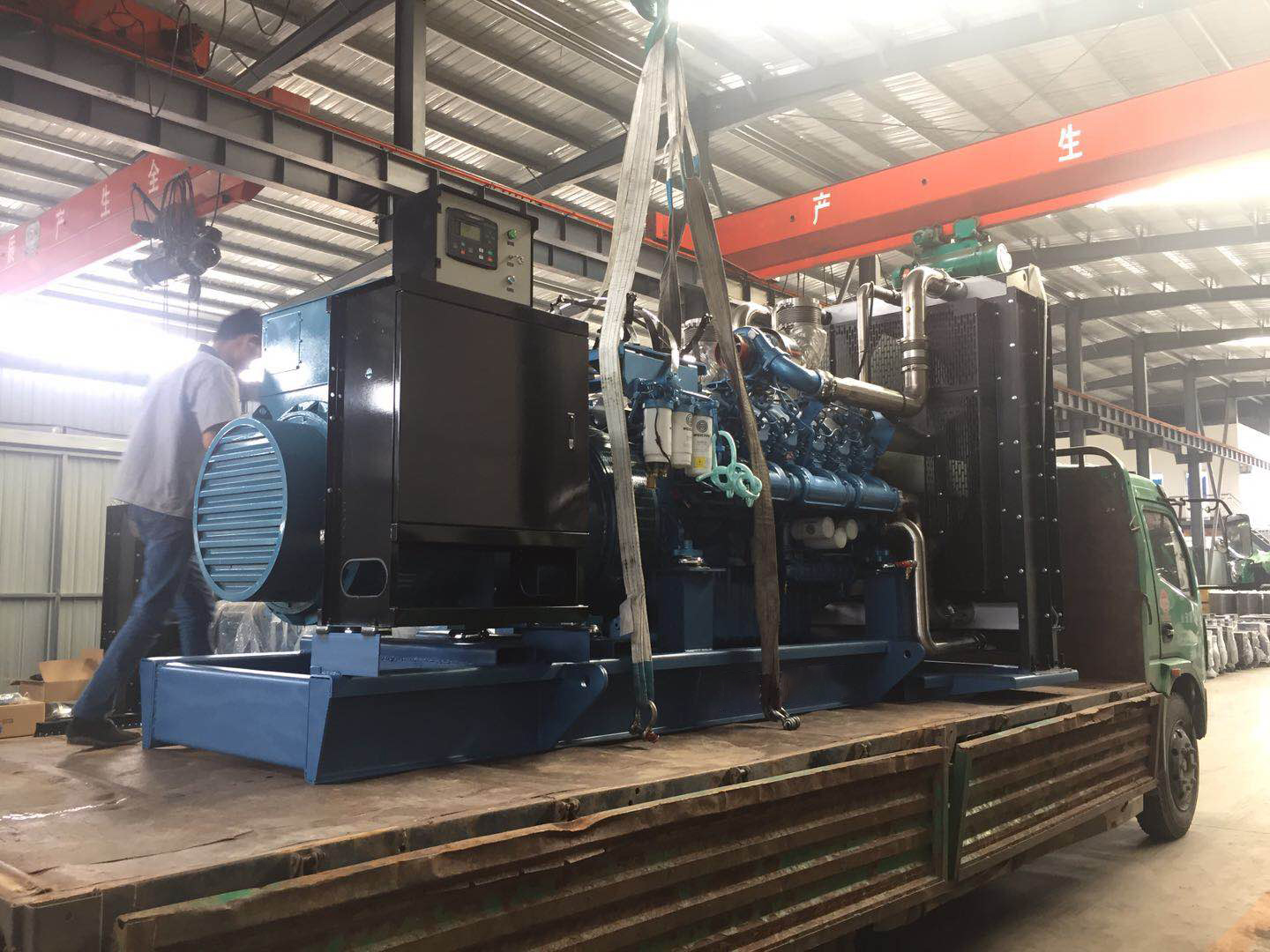

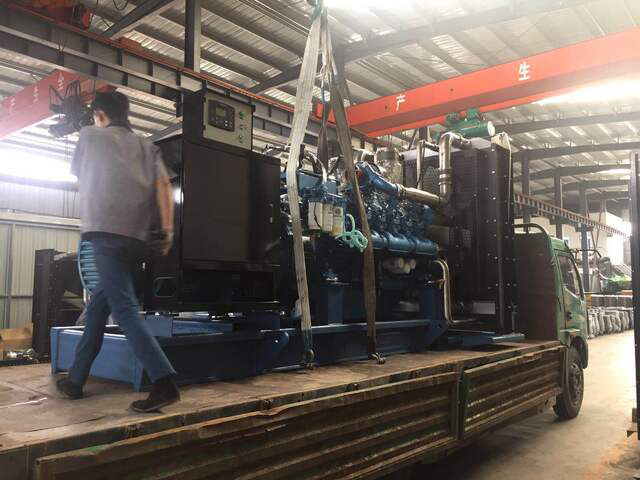

800KW Weichai Baudouin diesel generator set equipment pictures:
