The product has the characteristics of good starting performance, strong overload capacity, compact structure, easy maintenance, simple use and high degree of automation. It is an advanced fire-fighting equipment with reliable performance.

Running conditions:

1. Altitude: ≤2500 meters
2. Ambient temperature: -25～55℃
3. Relative humidity: 9-95%
4. Earthquake intensity: 7 degrees

Key Features:

1. Automatic start: After receiving fire alarm/pipeline pressure/power failure/or other start-up signals, the diesel water pump unit can automatically start and run at full load within 15 seconds;
2. Automatic charging: The battery can be automatically charged by the mains or diesel engine charging motor to ensure the smooth start of the unit;
3. Automatic alarm: Automatic alarm protection for low oil pressure, high water temperature and other faults of diesel engine, alarm and shutdown in case of overspeed;
4. Automatic preheating: puts the diesel engine in hot standby state to ensure emergency work;
5. Direct connection: The diesel engine and water pump used in diesel water pump units below 360kw are directly connected through elastic couplings, which reduces the failure points, greatly shortens the starting time of the unit, and increases the reliability and emergency performance of the unit;
6. Users can also request to set other alarm outputs (non-standard supply);
7. With telemetry, telesignaling and telecontrol functions (non-standard supply);

Standard scope of supply:

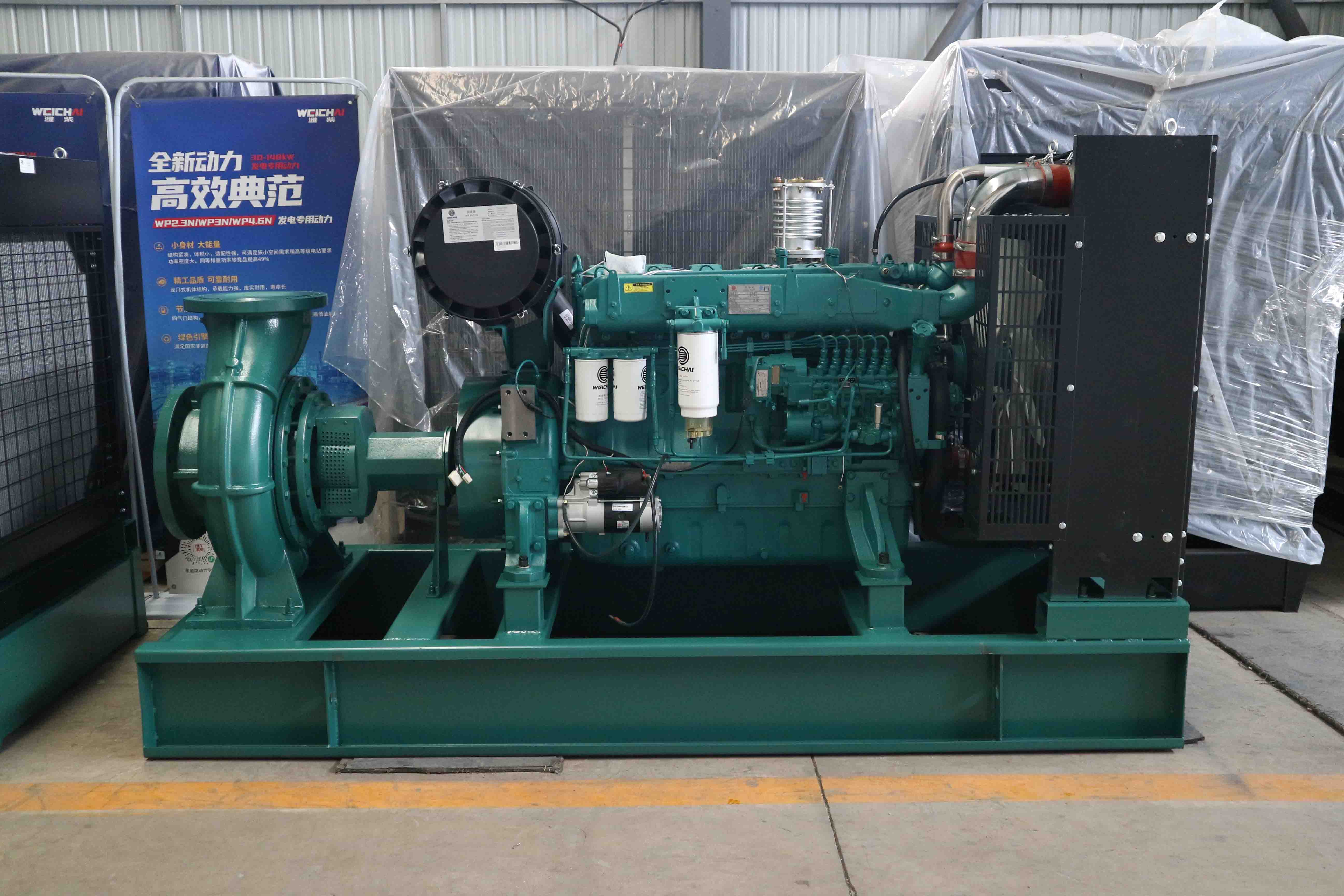

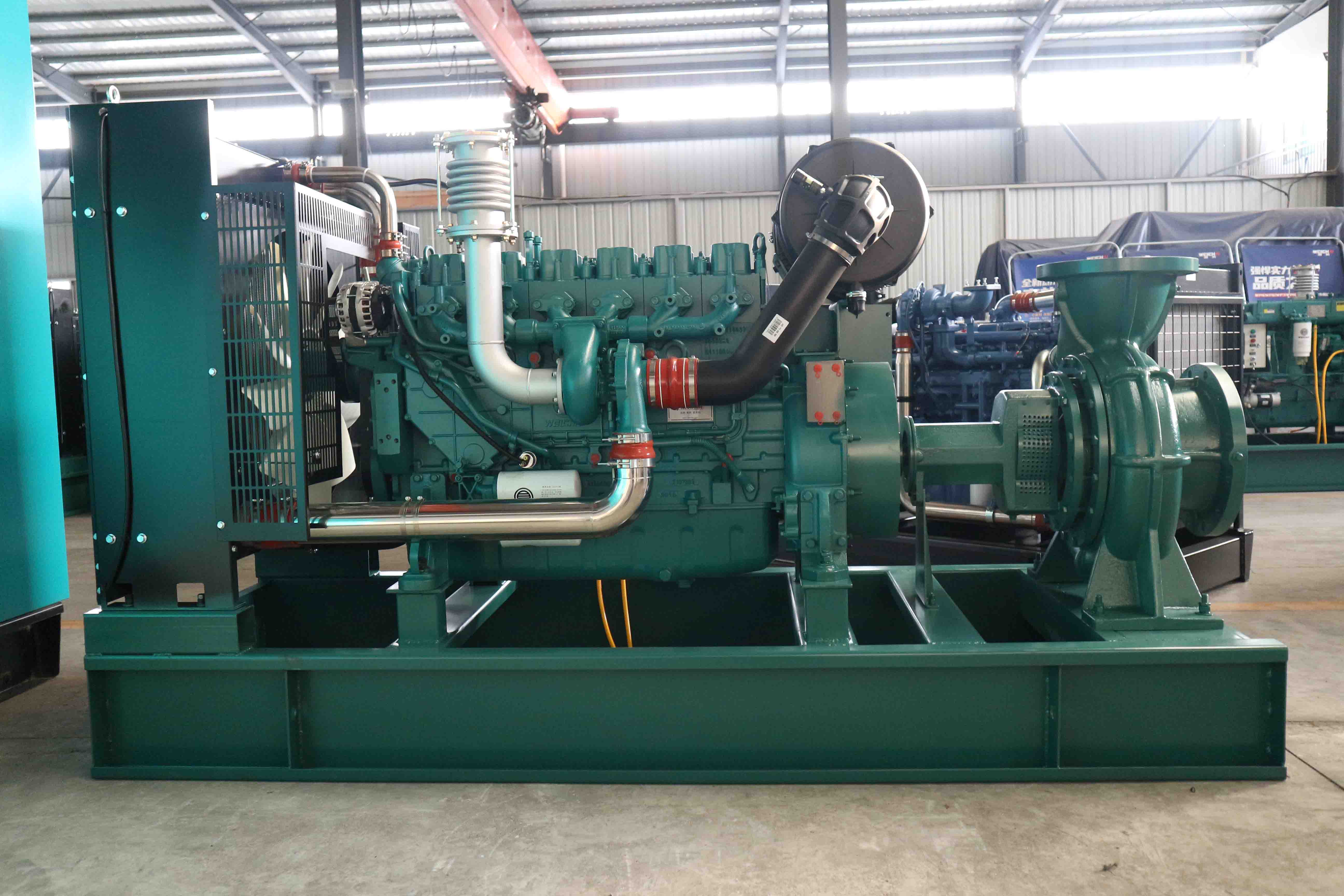

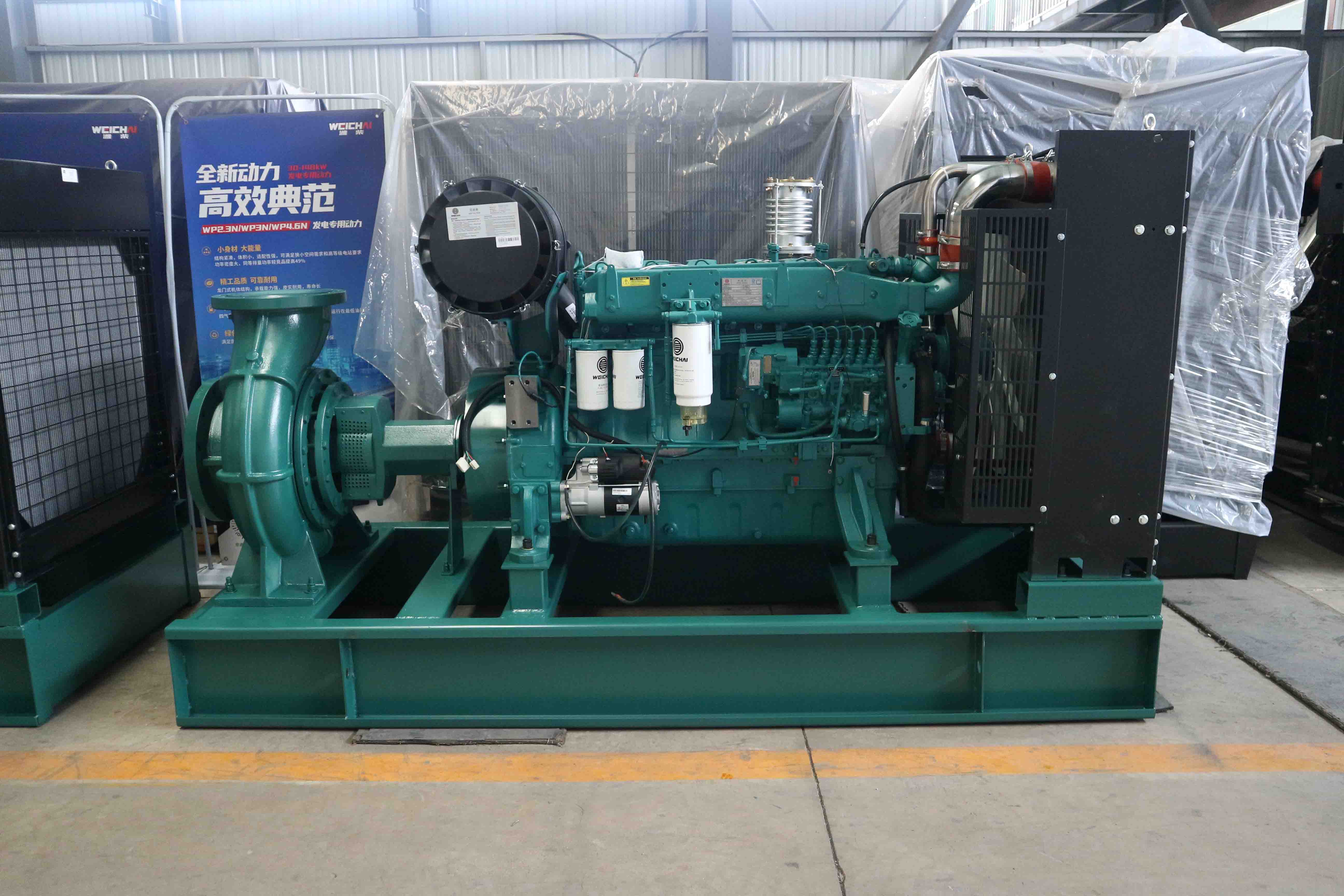

1. Fully automatic diesel water pump unit: diesel engine, water pump, cooling fan, radiator water tank, steel structure base, (water heater), battery and connecting wires, exhaust muffler, expansion joint, automatic control panel (using the original imported British DEEP SEA 520 fully automatic controller).
2. Provide the inspection report of type inspection or entrusted inspection issued by the National Fire Equipment Quality Supervision and Inspection Center according to customer requirements.
3. According to customer requirements, it is designed into a composite integrated model with pump group, bottom oil tank, automatic control panel and battery group.
4. According to customer requirements, it is designed into an outdoor type with a pump unit, bottom oil tank, automatic control panel, battery pack and rainproof box.

Select scope of supply:

1. 300L-1000L daily fuel tank or engine bottom fuel tank
2. Diesel water pump unit and electric water pump unit linkage control panel
3. Electric water pump units, pressure-stabilizing pump units, pressure-stabilizing tanks, etc.
