50KW Weichai diesel generator set equipment parameters:



Technical parameters of Yangchai 50KW diesel generator set
1. Unit model: GF-50
2. Unit power: 50KW
3. Generator model: SF-50-4
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): ≤235±3%
9. Output current (A): 90
10. Number of phases/wires: three-phase four-wire
11. Noise LP7m: 95db
12. Overall dimensions (mm): 1930*750*1400
13. Weight: 825Kg
2. Technical parameters of Yangchai WP4.1D66E200 diesel engine (50KW)
1. Diesel engine model: WP4.1D66E200
2. Standby power (KW): 66
3. Manufacturer: Weichai Power Yangzhou Diesel Engine Co., Ltd.
4. Cooling start: Closed water cooling
5. Starting method: 24V DC start
6. Number of cylinders: 4
7. Number of valves: 8
8. Total cylinder displacement L: 4.087
9. Compression ratio: 17.5:1
10. Intake method: Supercharged
11. Fuel supply method: Direct injection
12. Cylinder arrangement: Vertical
13. Intercooling method: Water intercooling
14. Fuel model: Domestic 0# light diesel
15. Speed regulation method: Mechanical speed regulation
16. Oil pan capacity: 13L
17. Engine oil fuel consumption: ≤0.1%
18. Engine oil model: WD/40
19. Bore/stroke: 105/118mm
20. Weight: 400±30Kg

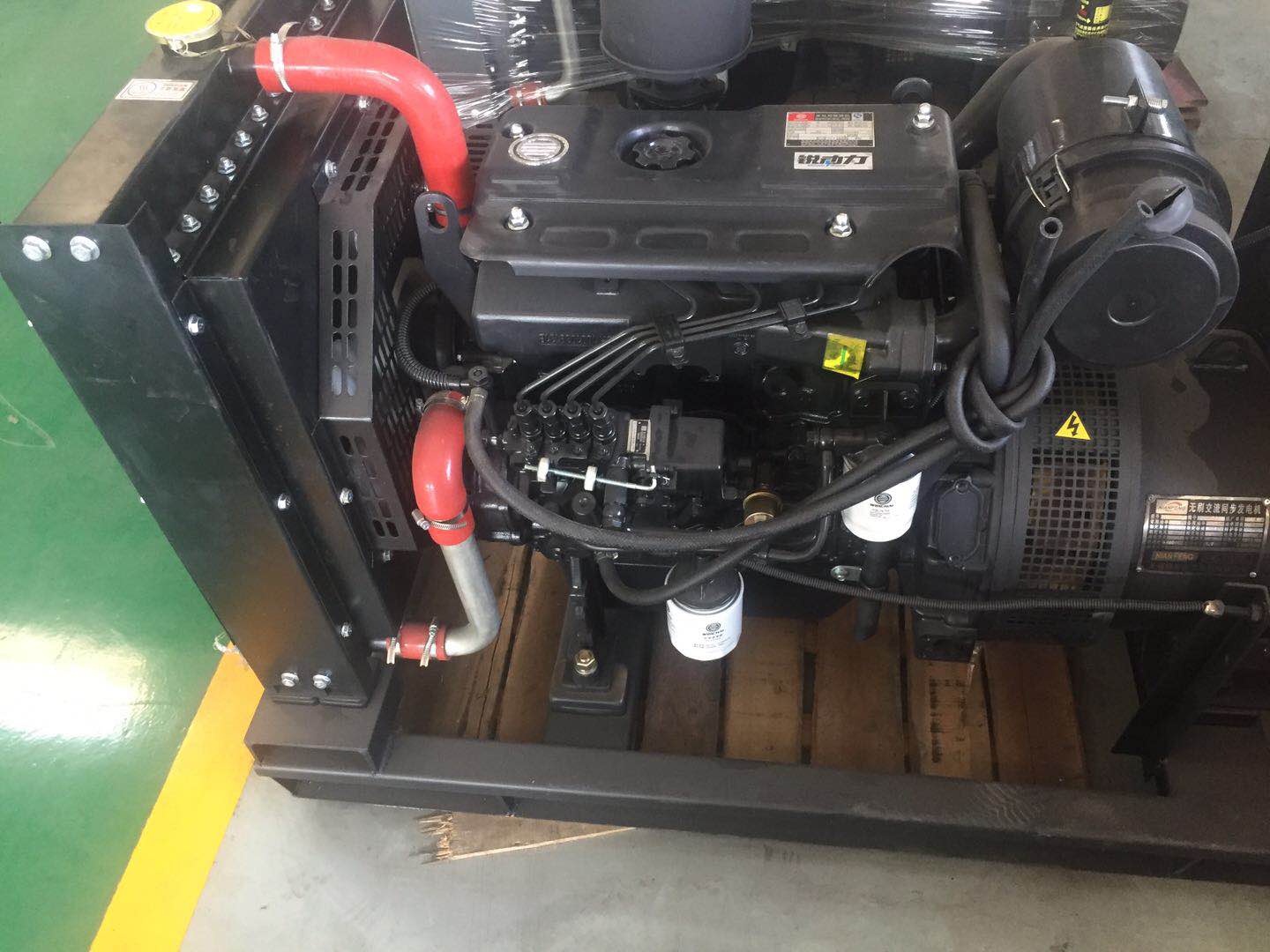

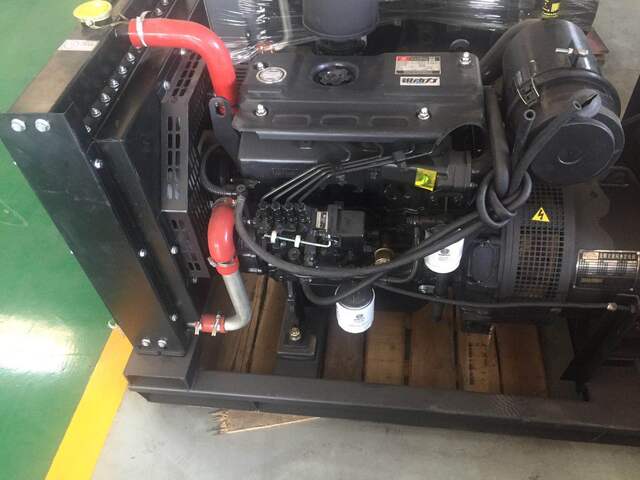

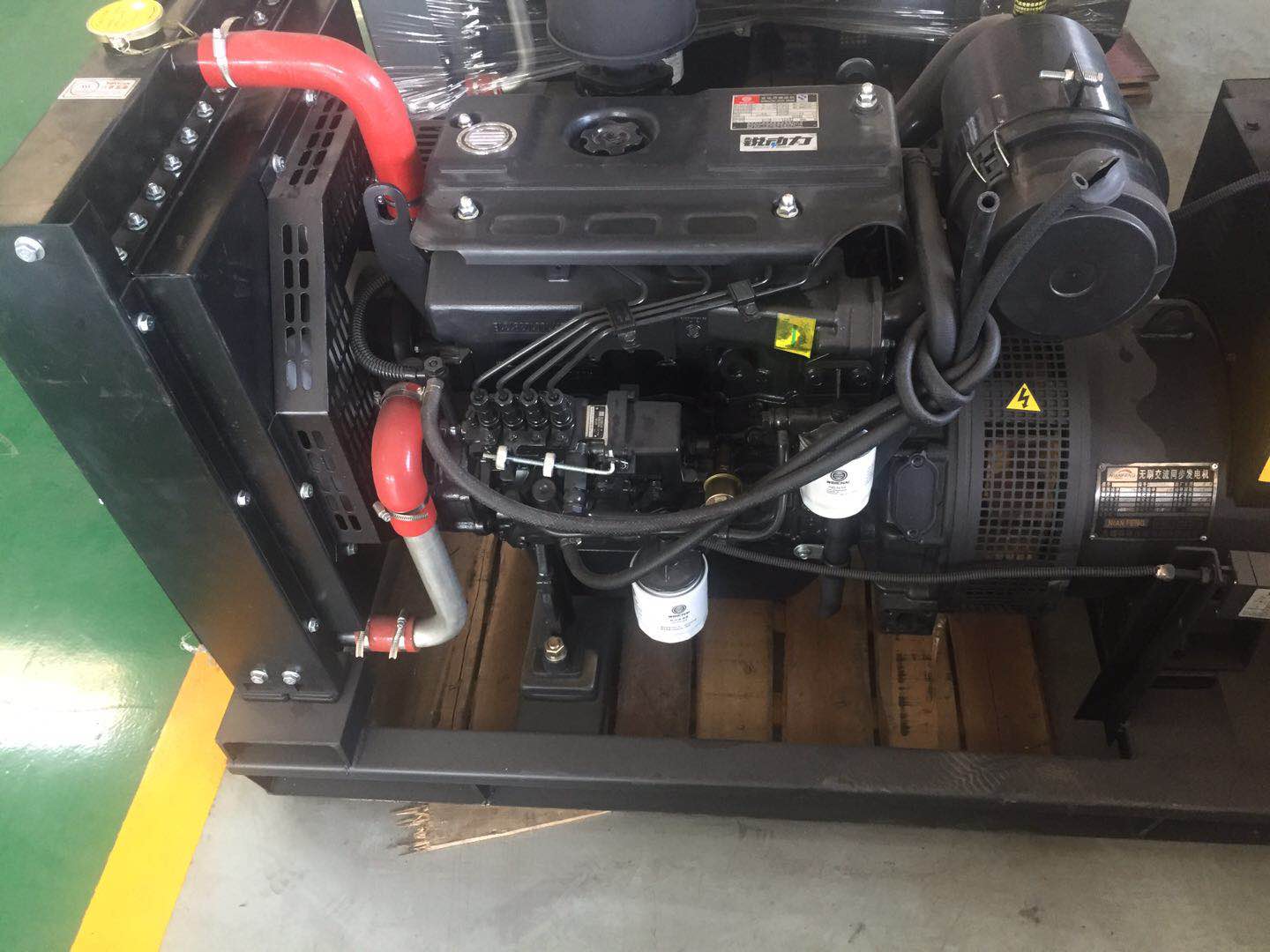

50KW diesel generator set Weichai Equipment Pictures:
