200KW Weichai Mobile Trailer Diesel Generator Set



Mobile trailer diesel generator set Weichai diesel engine with Shanghai Stanford motor, low price and complete qualifications, welcome new and old customers to consult and place orders for production

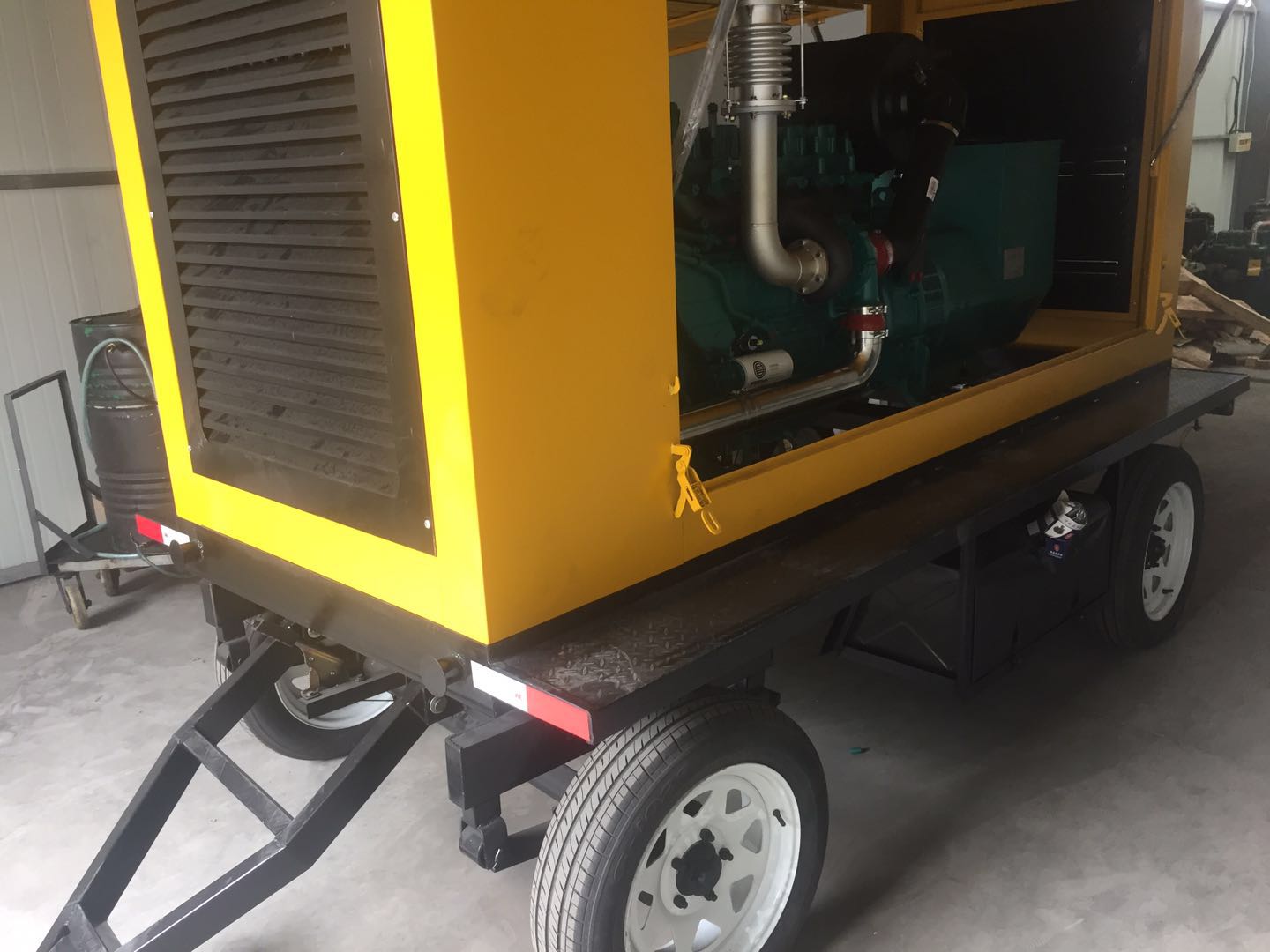

The trailer frame is welded with channel beams to form a frame structure, with reasonable node selection, high strength and good rigidity; it is also equipped with a leaf spring suspension structure;
the trailer adopts a height-adjustable pin-type traction frame, which is suitable for tractors of various heights; it adopts a round steel pipe welded straight-through axle, which is compact, safe and reliable;
mechanical support devices are installed at the four corners of the frame, equipped with inertia driving brakes, parking brakes and disengagement emergency brakes to ensure the safety of the unit under various conditions;
the front end of the frame is equipped with support wheels, which have the function of bearing the vertical load of the unit and also have a guiding function; the whole vehicle is equipped with turn and brake indicator lights, and a standard plug for the taillight, etc.



200KW Weichai diesel generator set equipment parameters:

Diesel generator set data
model	BM200 GF
Rated output power (KVA/KW)	250/200	Rated output current(A)	360
Wiring method	Three-phase four-wire	Power Factor	0.8 (hysteresis)
Startup method	24V DC start	Frequency (Hz)	50
Unit weight (kg)	2000	Unit size (length * width * height) ( mm )	2800*990*1600
Diesel engine data

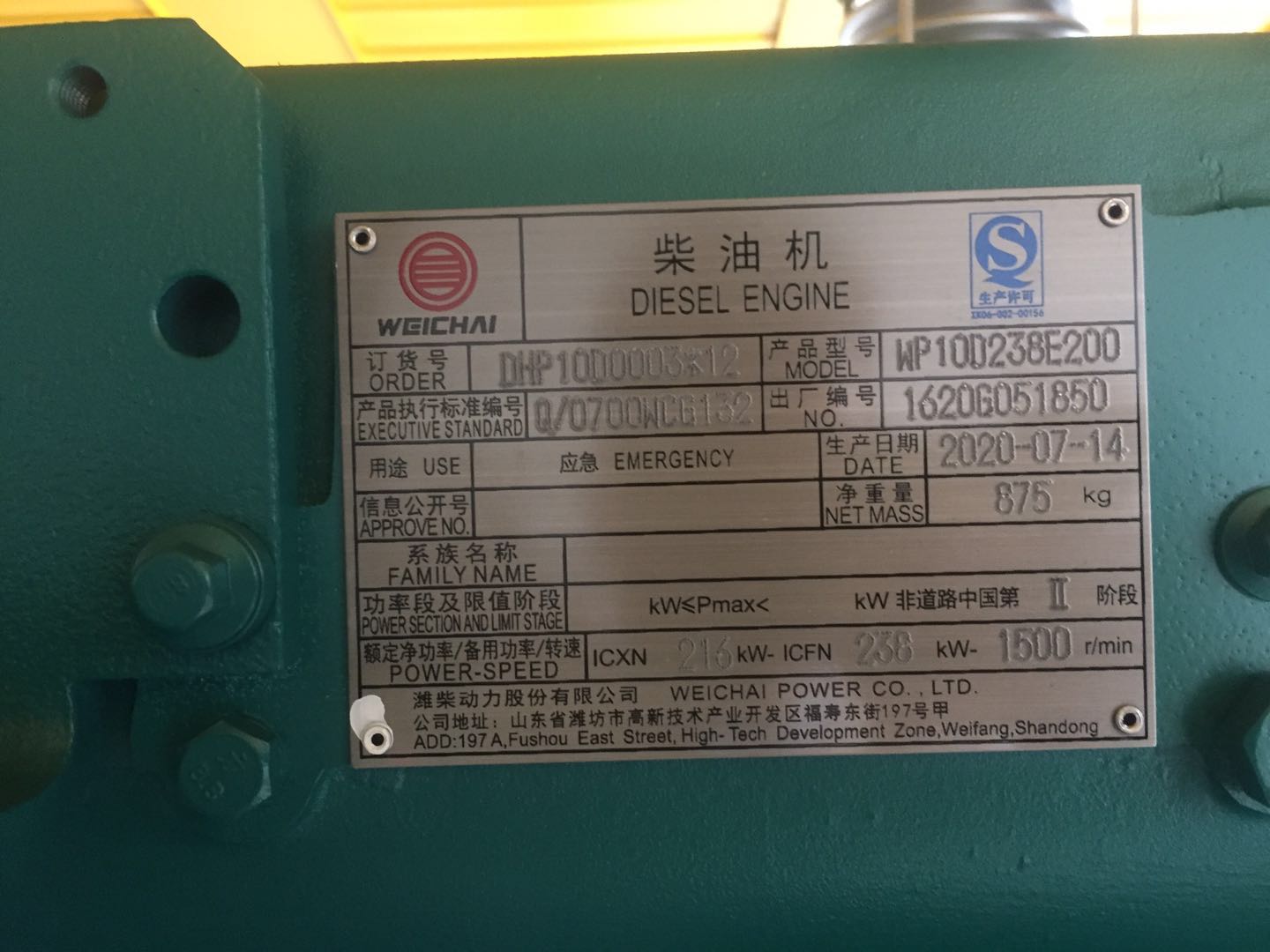

Manufacturer	Weichai Power Co., Ltd.	model	WP10D238E200
Rated speed(Rpm)	1500	Engine power ( kW )	238
Cylinder stroke	126*130	Compression ratio	17:1
Number of cylinders	6	Fuel consumption rate ( g/kwh )	≤215
Speed regulation mode	ESC	Oil fuel consumption ratio ( % )	≤ 0.2
Displacement ( L )	9.726	Air intake method	Exhaust gas turbocharger
Engine cooling method	Radiator to meet ambient temperature of 40℃, belt driven cooling fan, with fan guard
Generator data
Manufacturer	Jiangsu Lingyu Motor Co., Ltd.	model	STF-200
Power(KVA/KW)	250/200	Protection level	IP22
Insulation class	H	Power Factor	0.8 lag
No-load voltage adjustment range	≥±5%	Voltage control method	AVR
efficiency(%)	88.4	Wiring method	Three-phase four-wire

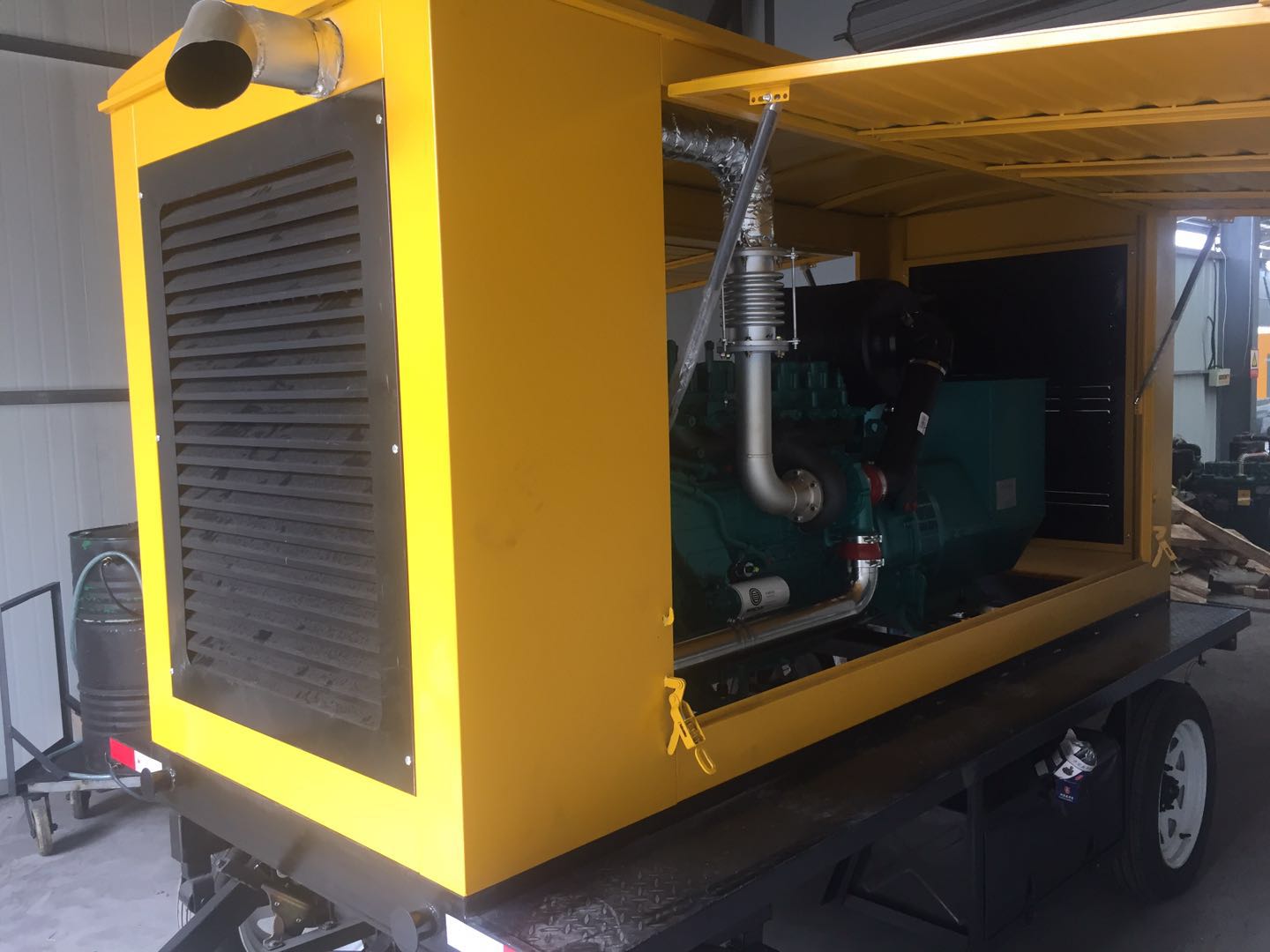

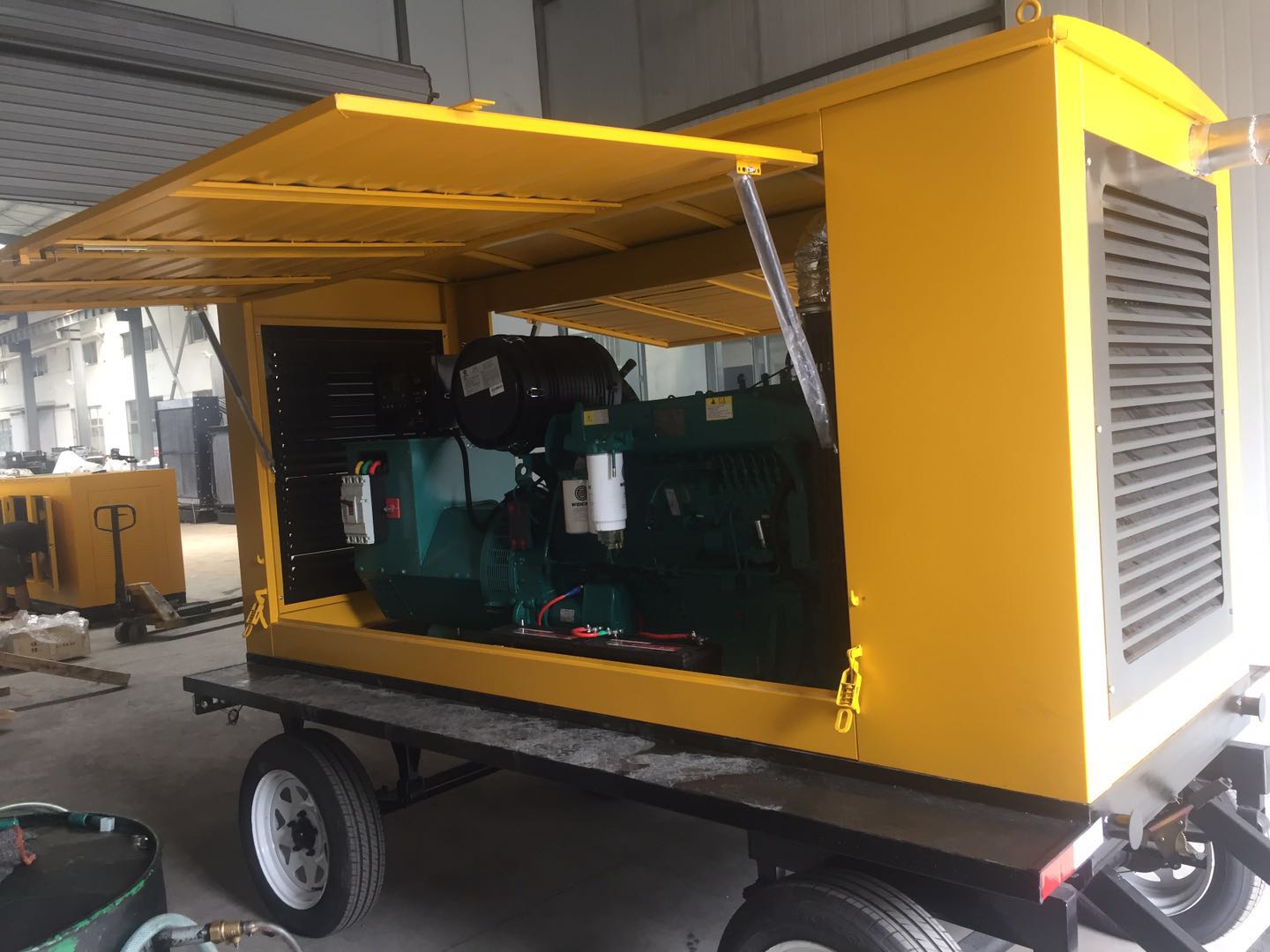

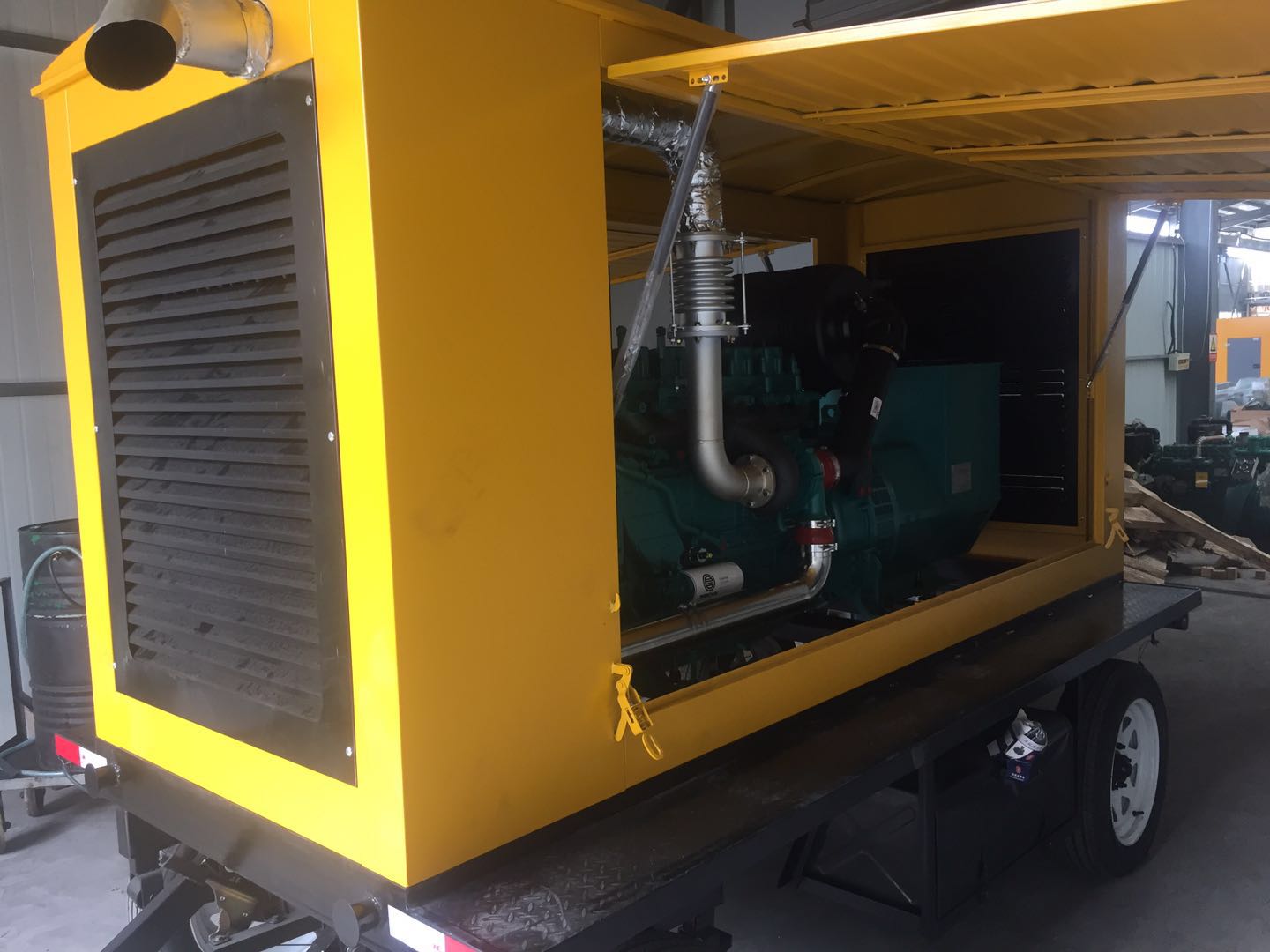

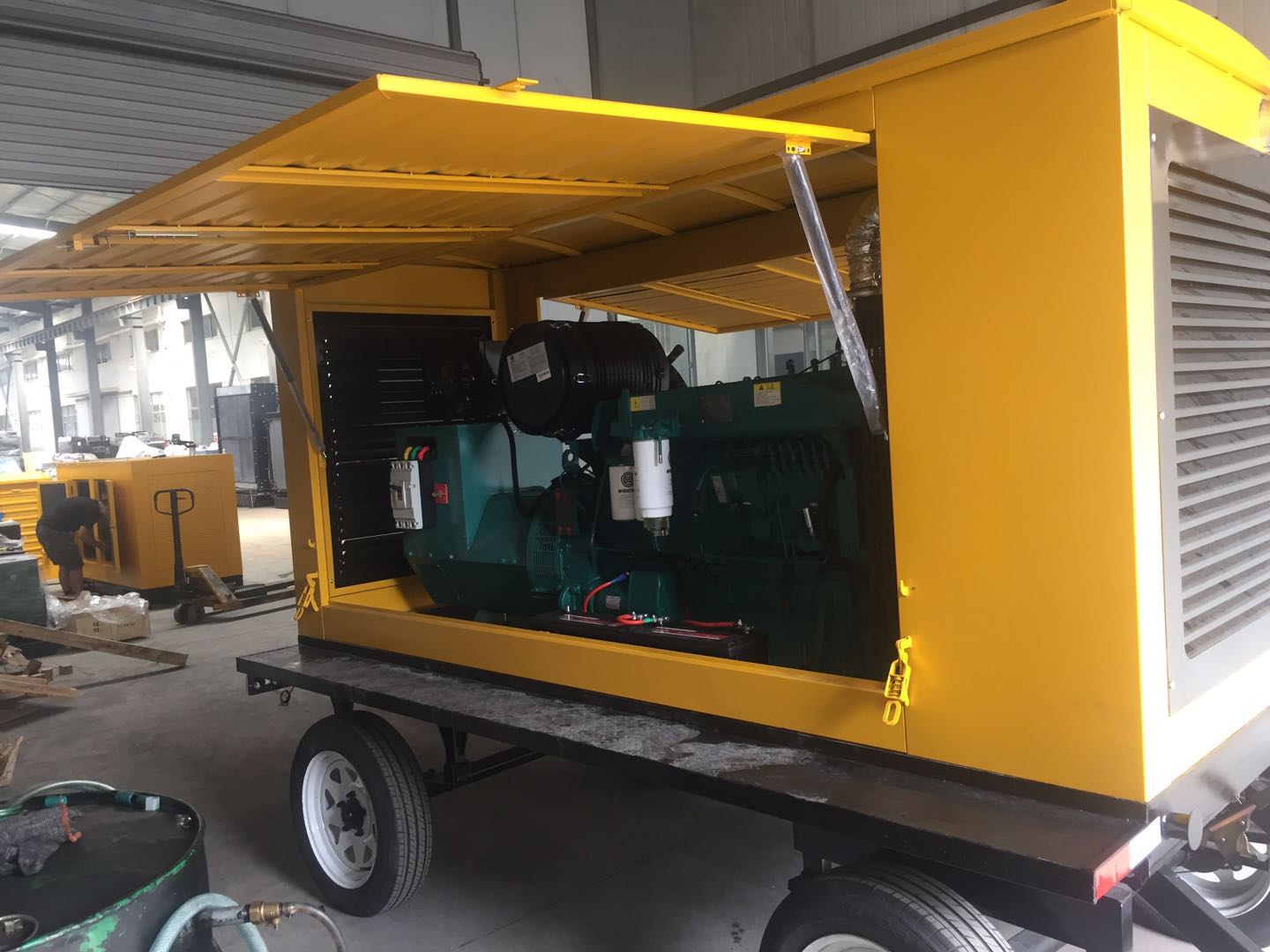

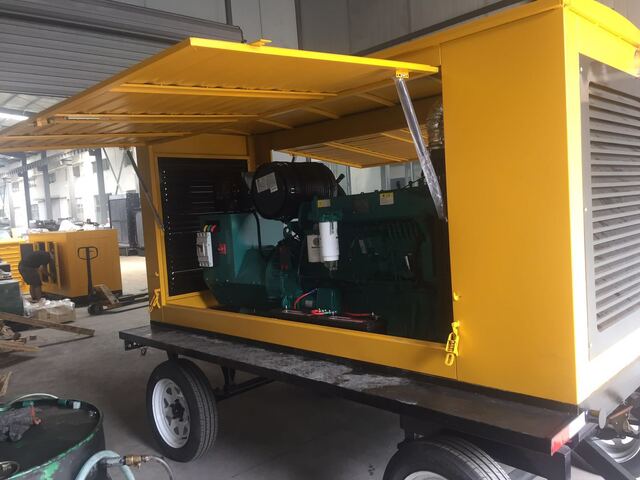

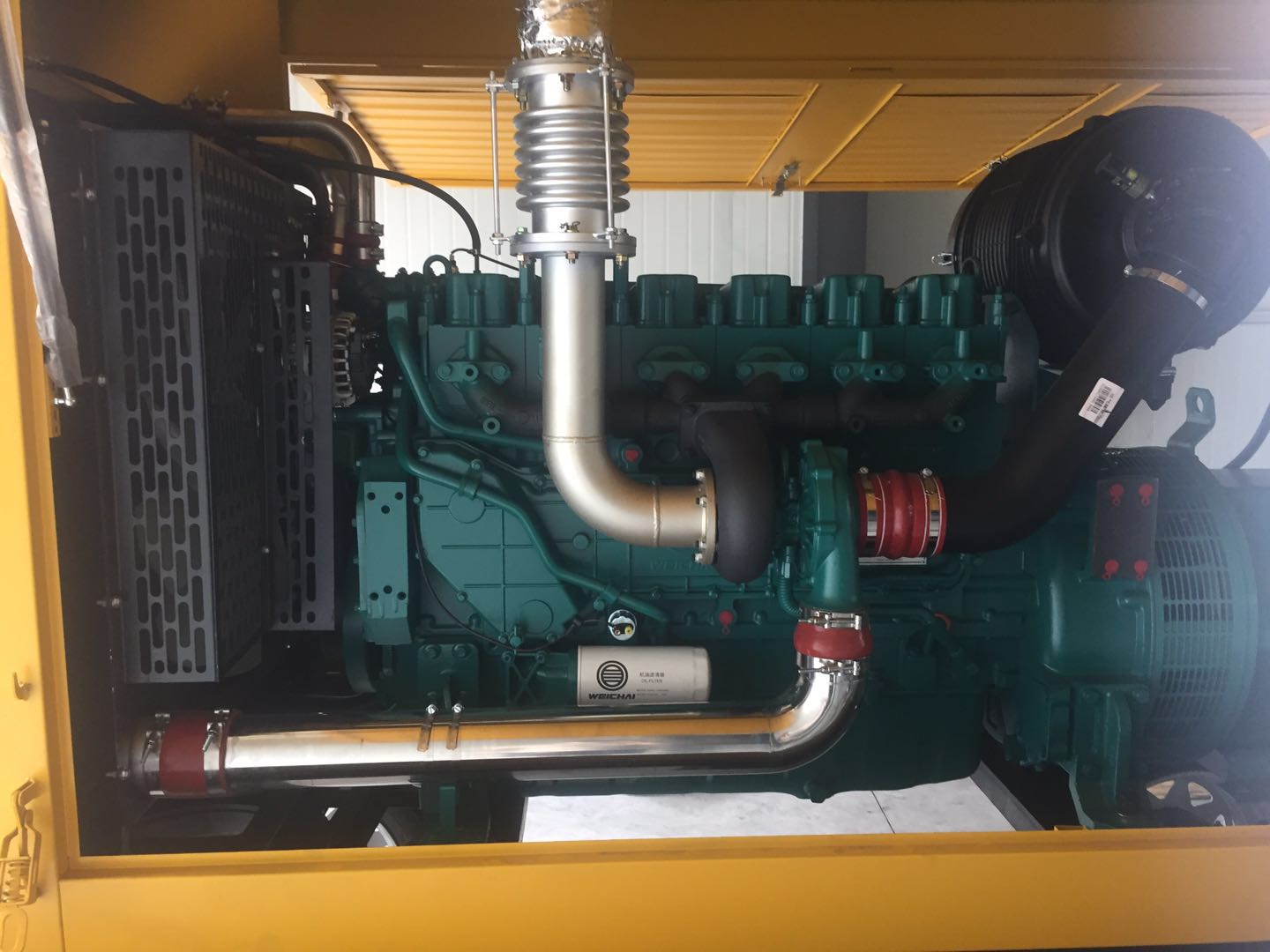

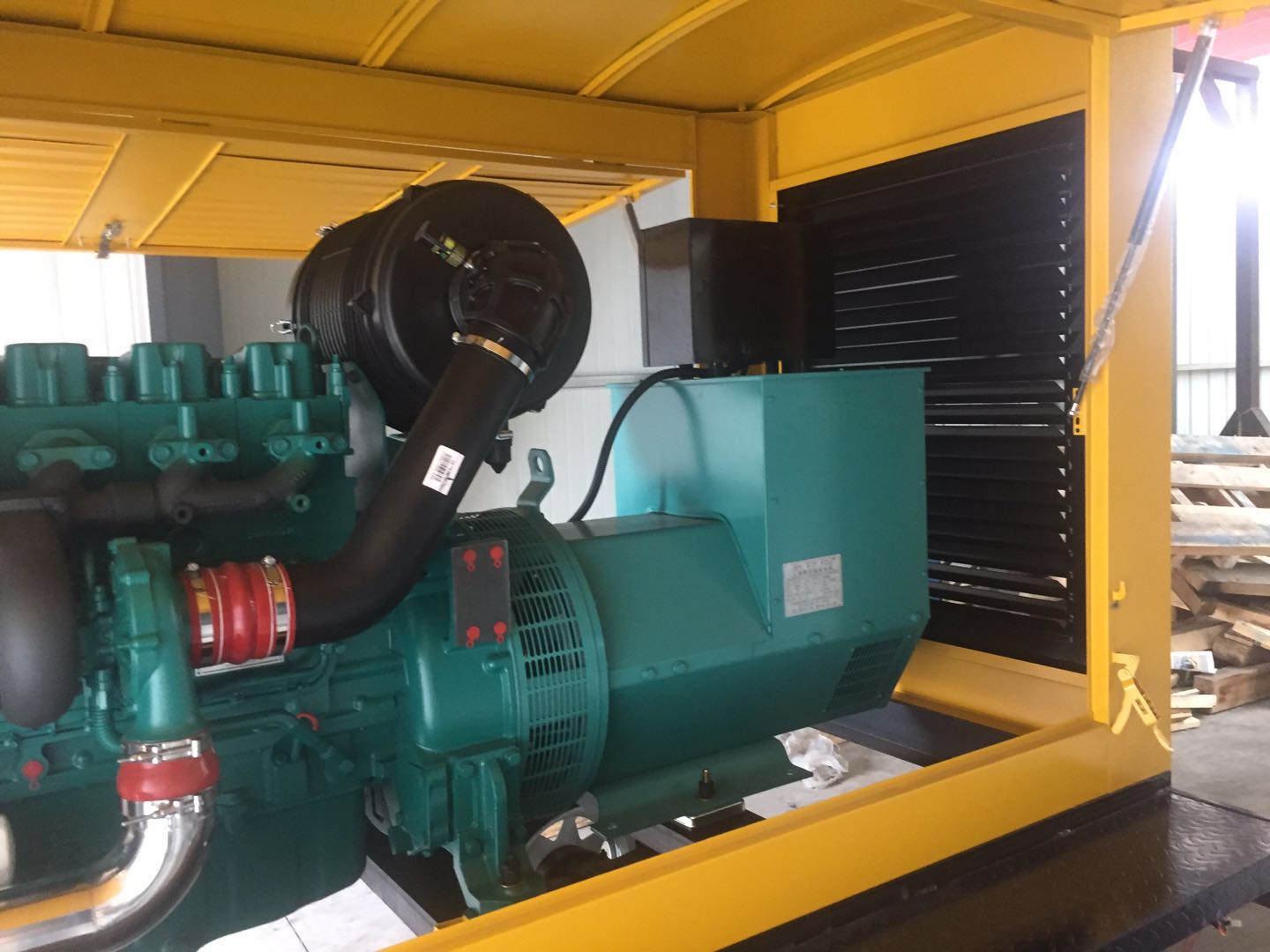

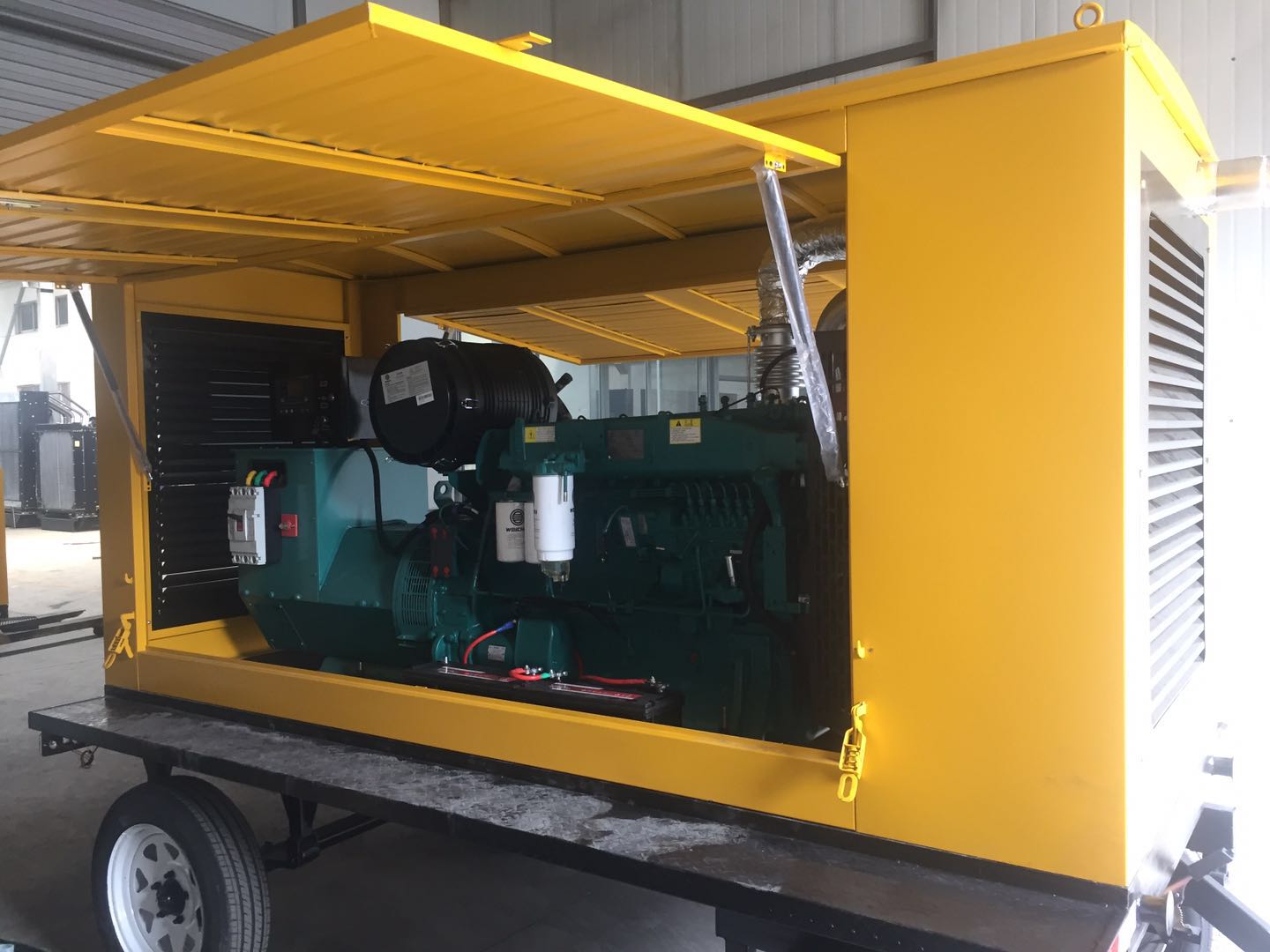

200KW Weichai diesel generator equipment pictures:
