1000KW Weichai diesel generator set equipment parameters:

1000KW Baudouin diesel generator set parameters

1. Technical Specifications

(1) Model: 1000GF

Common power (KW): 1000

Reserve power (KW): 1108

Frequency: 50Hz

Output voltage: 400/230V

Speed: 1500rpm

Power factor: COSΦ=0.8 (lagging)

Fuel consumption (g/Kw*h): 210 (No. 0 diesel is recommended)

Maximum output current (A): 1800

Phase/wire number: three-phase four-wire

Noise LP7m: 108db

Overall dimensions (mm): 4300*1800*2135 (Appearance dimensions are subject to the actual product)

Weight: 7800Kg (weight is subject to the actual product)

(2) Diesel engine:

Brand: Baudouin

Place of Origin: Baudouin (Weifang) Power Co., Ltd.

Model: 12M33D1108E200
Cooling start: Closed water cooling
Starting method: 24V DC start
Number of cylinders: 12
Cylinder arrangement: V type Displacement
: 39.2L
Compression ratio: 15:1
Diesel engine bore/stroke mm: 150/185
Diesel engine coolant capacity: 75.94L
Diesel engine oil pan capacity: 146L
Fuel supply method: Direct
injection Intake method: Supercharged intercooler
Intercooling method: Water intercooler
Fuel model: Domestic 0# light diesel
Speed control method: Electronic speed control
Oil model: WD/40
Diesel engine net weight (Kg): 3390
Overall dimensions (mm): 2524*1311*1731

(3) Generator:

Brand: Marathon Stanford

Origin: Jiangsu

Model: ZD-1000-4

Material: Pure copper

Insulation class: H

Voltage control method: AVR

Voltage: ≤4%

Rated voltage (V): 400/230

Protection level: IP23

Frequency: 50Hz

Phase number/wiring: three-phase four-wire/Y-type winding

Frequency adjustment rate (%): ≤±0.5 (steady state) +10～-7 (transient state)

Voltage regulation rate (%): ≤±0.5 (steady state) +20～-15 (transient)

Frequency fluctuation rate (%): ≤±0.5

Voltage fluctuation rate (%): ≤±0.5

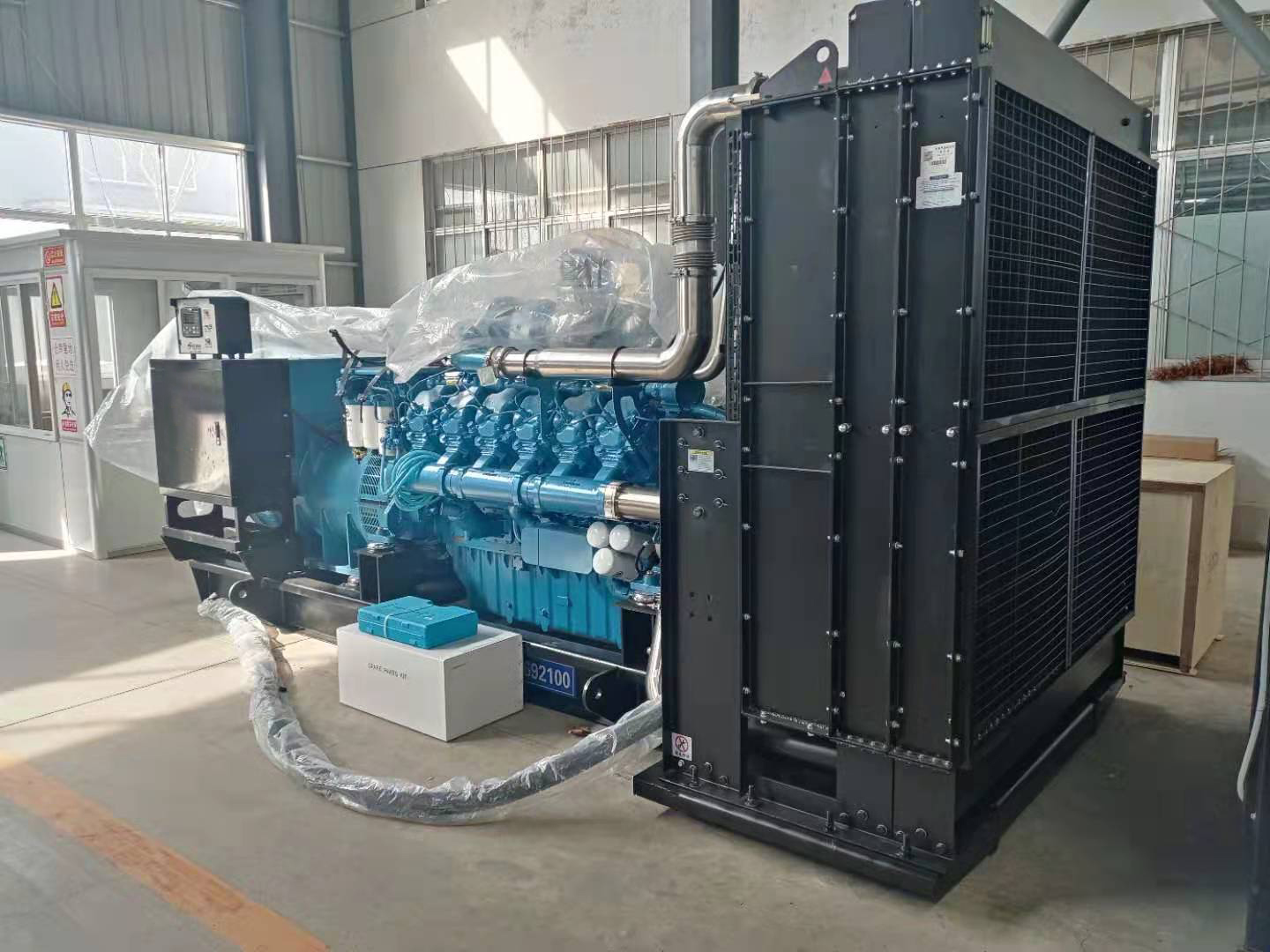

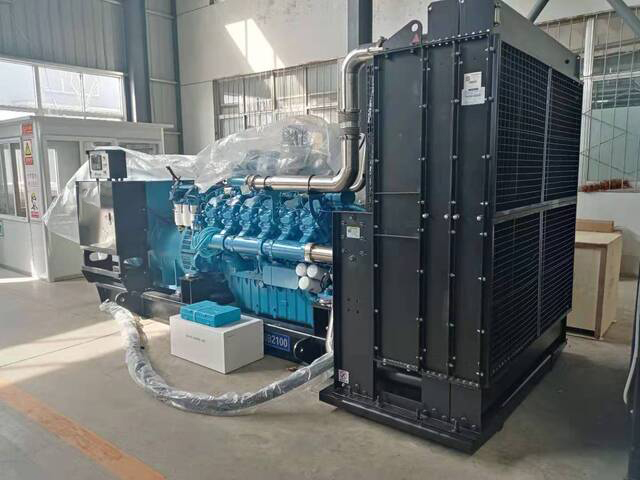

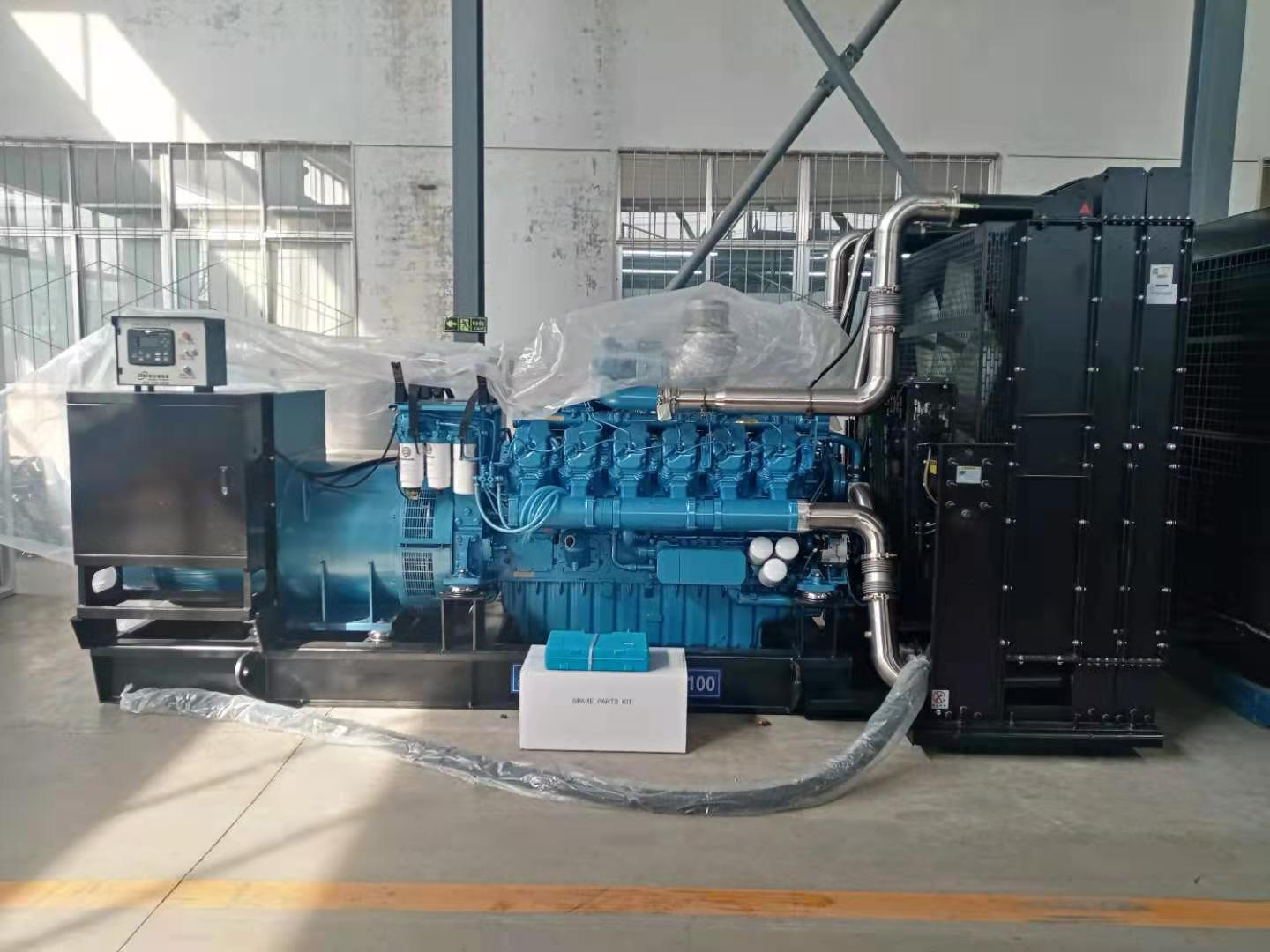

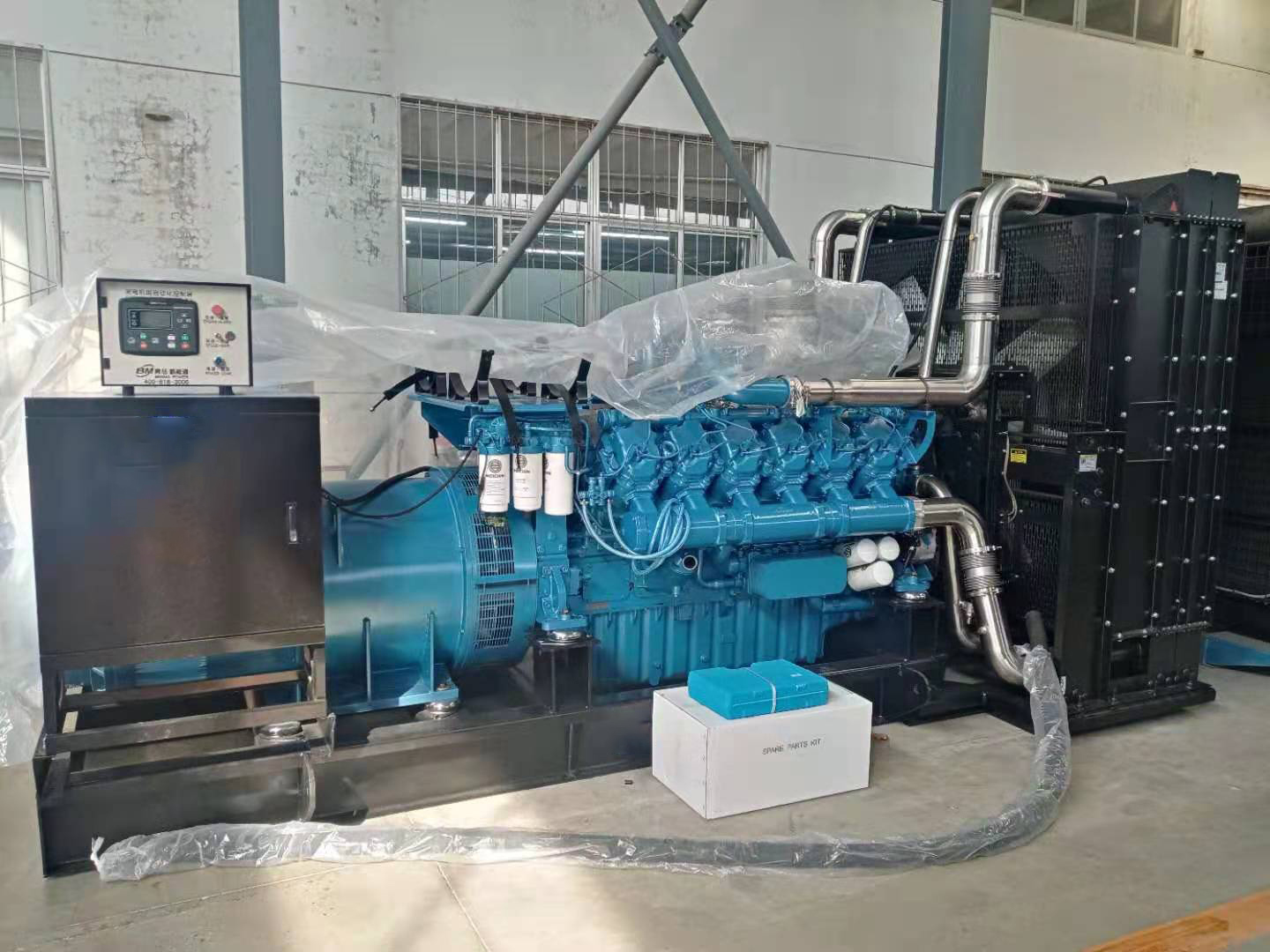

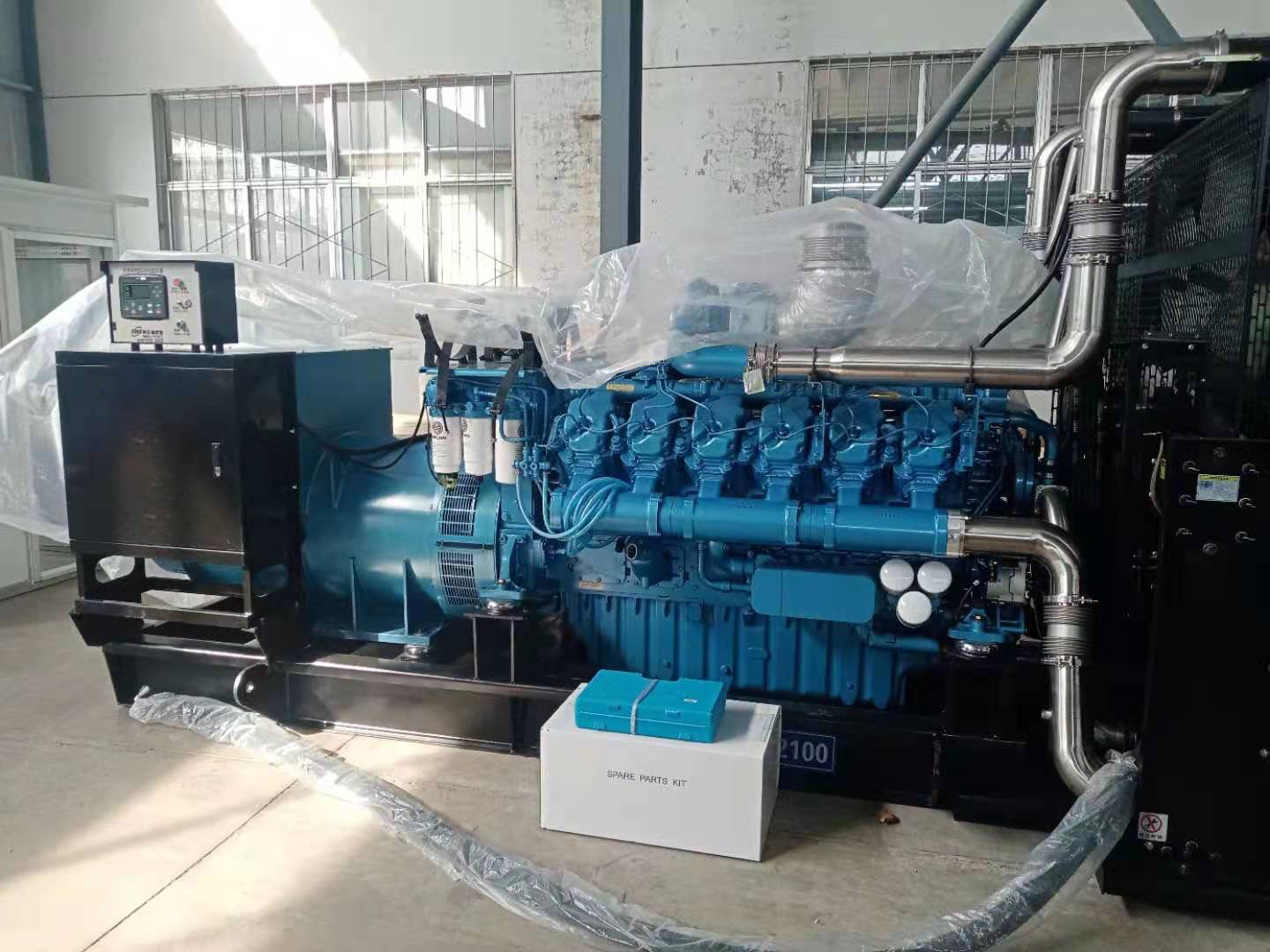

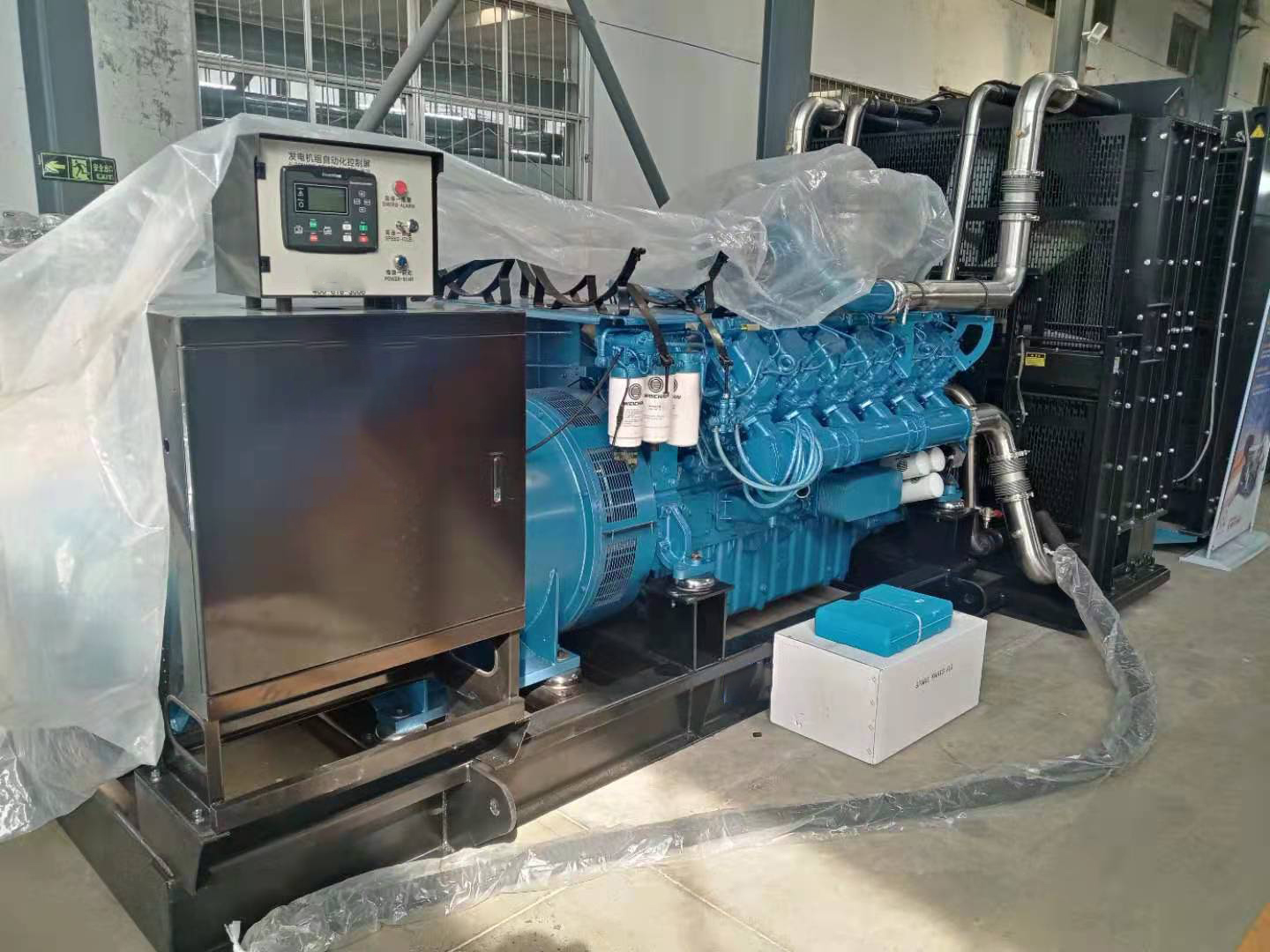

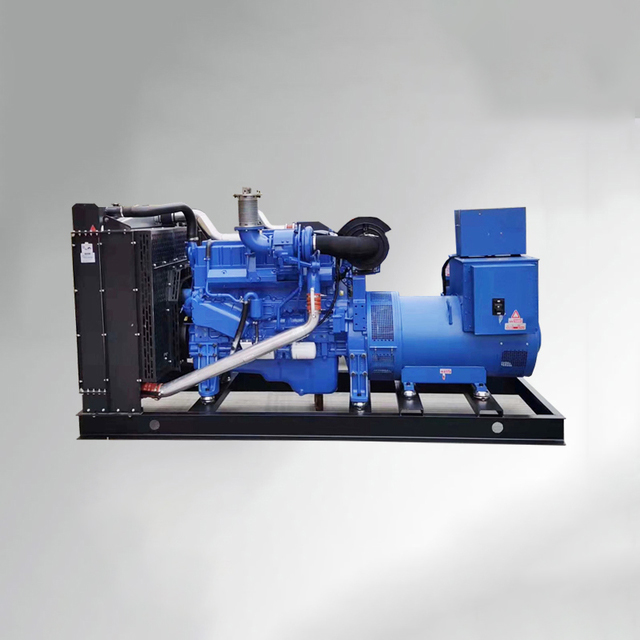

1000KW Weichai diesel generator set pictures:
