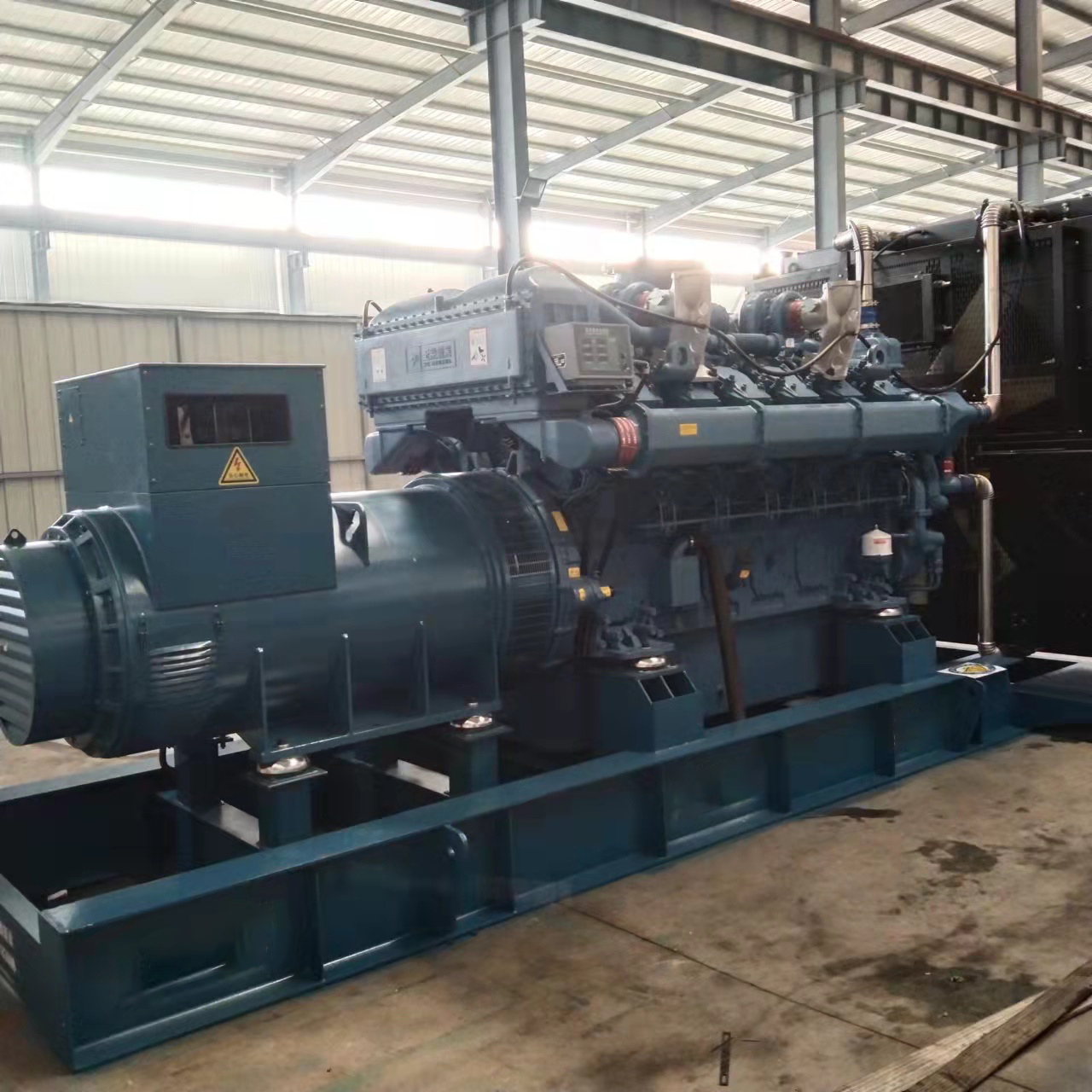

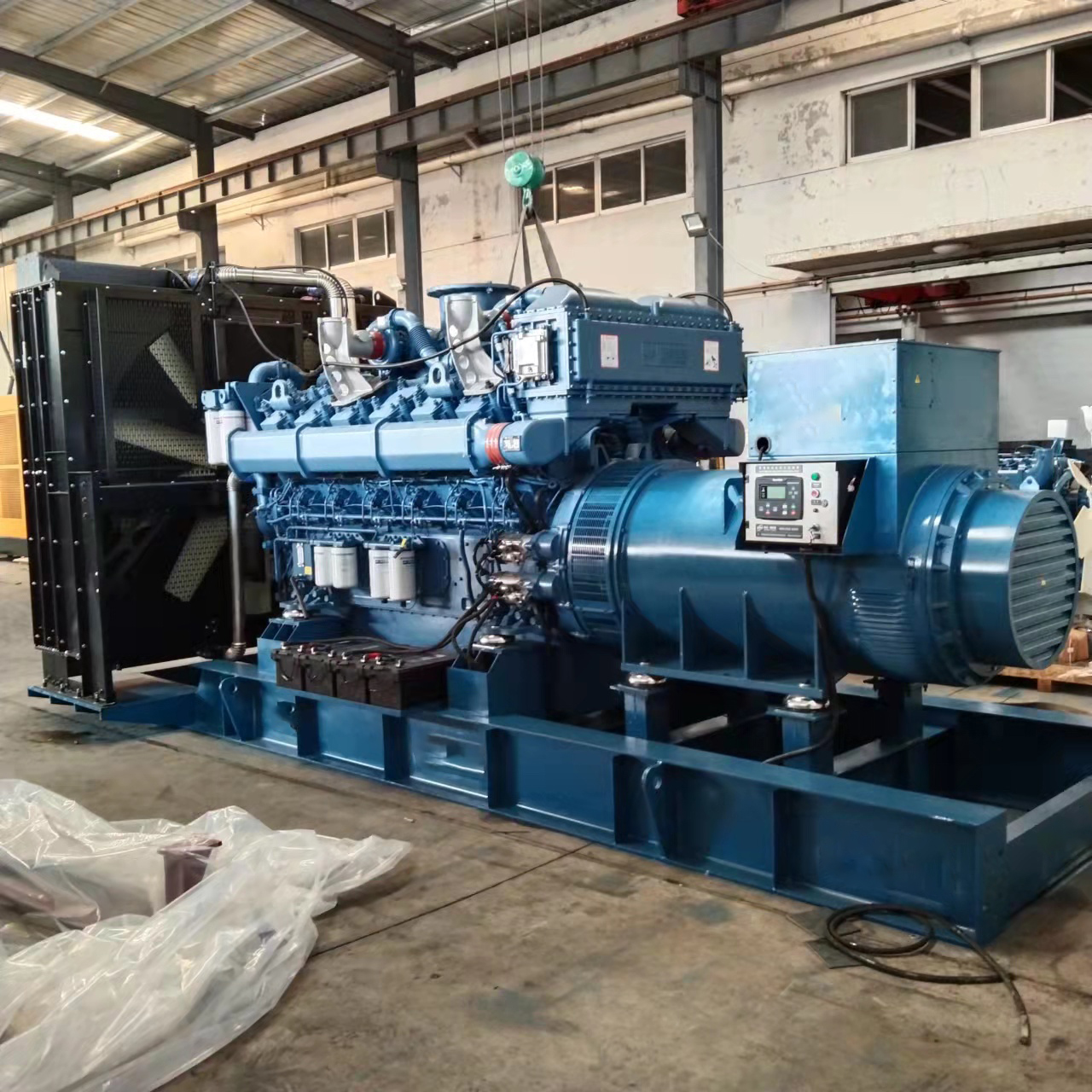

1600KW Guangxi Yuchai diesel generator set
1600KW Guangxi Yuchai diesel generator set
Guangxi Yuchai Machinery Co., Ltd. is the core subsidiary of Guangxi Yuchai Machinery Group. The company is headquartered in Yulin City, Guangxi, and has 7 subsidiaries. The company's products include 10 platforms and 30 series of micro, light, medium and large diesel engines and gas engines, with power ranging from 20 to 2700kW. It is a domestic engine manufacturer with richer product varieties and more complete model spectrum. The company has total assets of more than 16 billion yuan, more than 9,000 employees, and an annual engine production capacity of 700,000 units. In 2014, the company achieved sales revenue of 22.2 billion yuan and engine sales of 484,000 units, continuing to rank first in the industry.
Guangxi Yuchai has established a 24-hour service station. After the customer reports the repair, the dispatch work will be completed within 1 hour, and the arrangement will be promptly fed back to the customer; 3 hours in the city, 6 hours within 200 kilometers, and 12 hours outside 200 kilometers (except remote areas). Overtime compensation is 30 yuan/hour for customers (calculated as 24 hours per day).
1 600KW Yuchai diesel generator set technical specifications | |
Generator set technical parameters: | |
Unit model: BM-1600GF | Steady-state voltage regulation: ≤±0.5% |
Rated power: 1600KW | Transient voltage regulation: ≤-10%/ +15% |
Rated power factor: COSΦ=0.8 (lagging) | Voltage fluctuation rate (%): ≤±0.5 |
Rated output voltage: 400V/230V | Voltage stabilization time: ≤1.5sec |
Rated current: 2880A | Voltage waveform distortion: ≤8% |
Rated frequency: 50Hz | Steady-state frequency regulation rate: ≤3% |
Rated speed: 1500rpm | Transient frequency regulation rate: ≤±5% |
Start control mode: electric start | Frequency stabilization time: 3sec |
Full load fuel consumption: 210g/kw.h | Steady-state frequency adjustment rate (%): ≤±1 |
Fuel brand: (standard) 0# light diesel (normal temperature) | Frequency fluctuation rate (%): ≤±0.5 |
Lubricating oil grade: (standard) SAE15W/40 | Noise (LP1m): 98dB (A) |
Dimensions (mm): 5450*2350*2780 | Weight: 15000KG |
Diesel engine technical parameters: | |
Brand: Yuchai | Lubricating oil capacity: 280L |
Model: YC12VC2510-D31 | Type: Four-stroke, exhaust gas turbocharged, direct injection compression ignition |
Power: 1850KW | Cooling method: built-in fan water tank forced closed circulation water cooling |
Number of cylinders: 12/V type | Speed regulation mode: electronic speed regulation |
Displacement: 79.17L | Cylinder diameter*stroke: 200mm*210mm |
Starting method: DC24V electric start | Speed: 1500rpm |
Generator technical parameters: | |
Brand: New Energy | Protection level: IP22 |
Model: BMQW-1600 | Wiring method: three-phase four-wire, Y-type connection |
Rated power: 1600KW | Regulation method: AVR (Automatic Voltage Regulator) |
Rated voltage: 400V/230V | Output frequency: 50Hz |
Insulation grade: H | Excitation mode: brushless self-excitation |
The standard configuration of the generator set is as follows: | |
Ø Direct injection internal combustion engine (diesel); | |
ØAC synchronous generator (single bearing); | |
ØSuitable for 40℃－50℃ radiator tank, belt-driven cooling fan, fan guard; | |
ØGenerator output air switch and standard control panel; | |
ØCommon steel base of the unit (including vibration-damping rubber pad of the unit); | |
ØDry air filter, fuel filter, lubricating oil filter, starter motor, and self-charging generator; | |
ØStarting battery and battery starting connection cable; | |
ØIndustrial 9dB and connection standard parts | |
Ø Random information: original technical documents of diesel engine and generator, generator set manual, test report, etc. | |
Optional accessories (extra charge): | |
Ø Engine oil, diesel, water jacket, anti-condensation heater | ØSplit daily fuel tank, integrated base fuel tank |
ØBattery float charger | ØRainproof unit (cabinet) |
Ø Self-protection and self-starting unit control panel | ØSilent unit (cabinet) |
ØUnit control panel with “three remote” functions | ØMobile trailer power station (cabinet trailer) |
ØATS automatic load switching screen | ØSilent mobile power station (cabinet trailer) |
Warranty period: | |
(Domestic) 12 months after the unit is commissioned and accepted or after 1,000 cumulative operating hours, whichever comes first. | |
Free repair or replacement for product quality issues, lifetime paid service! | |
(Consumable parts, commonly used parts, man-made damage, negligent maintenance, etc. are not covered by the warranty) | |
If it is adjusted by the original factory, the original factory warranty regulations will apply! | |
Implementation standards: | |
Quality Management System ISO9001 | |
Industry implementation standard GB/T2820.1997 | |
Delivery method: | |
Door-to-door pick-up, special vehicle delivery, car loading, etc. | |
Five major advantages of Benma New Energy Yuchai generator set :
1. Warranty period: (domestic) The warranty period of the unit is 12 months or 1500 hours of cumulative operation; whichever expires first. Free repair or replacement of parts due to product quality problems, lifelong paid service! (Vulnerable parts, commonly used parts, man-made damage, negligent maintenance, etc. are not covered by the warranty) If it is adjusted by the original factory, it will be implemented according to the original factory warranty regulations!
2. Implementation standards: Standard certification ISO9001:2008 Industry implementation standard GB/T2820.1997
3. Applicable to complex environmental conditions: Benma New Energy Yuchai generator set can work reliably and output continuous power under the following conditions: Altitude: ≤1500m, please reduce the power for other altitudes; Ambient temperature: 40℃ Relative humidity: 85%.
4. Lightweight structure of the unit: Benma New Energy Yuchai generator set consists of engine, generator, common chassis and control panel, etc. The diesel engine and generator are connected by elastic coupling and installed on the common chassis through shock absorber. The control panel of the unit is installed on the common chassis at the generator end through shock absorber, which can realize the functions of unit electrical parameter monitoring, diesel parameter measurement, unit control, parameter adjustment and alarm protection.
5. Complete materials included: diesel engine operation and maintenance manual, main parts manual, diesel engine parts atlas, control panel manual, diesel generator set operation and maintenance manual, generator manual, diesel generator set qualification certificate, diesel engine certificate, motor certificate, test report, etc.
