120KW Weichai diesel generator set equipment parameters:



Technical parameters of Weichai Deutz 120KW diesel generator set
1. Unit model: GF-120
2. Unit power: 120KW

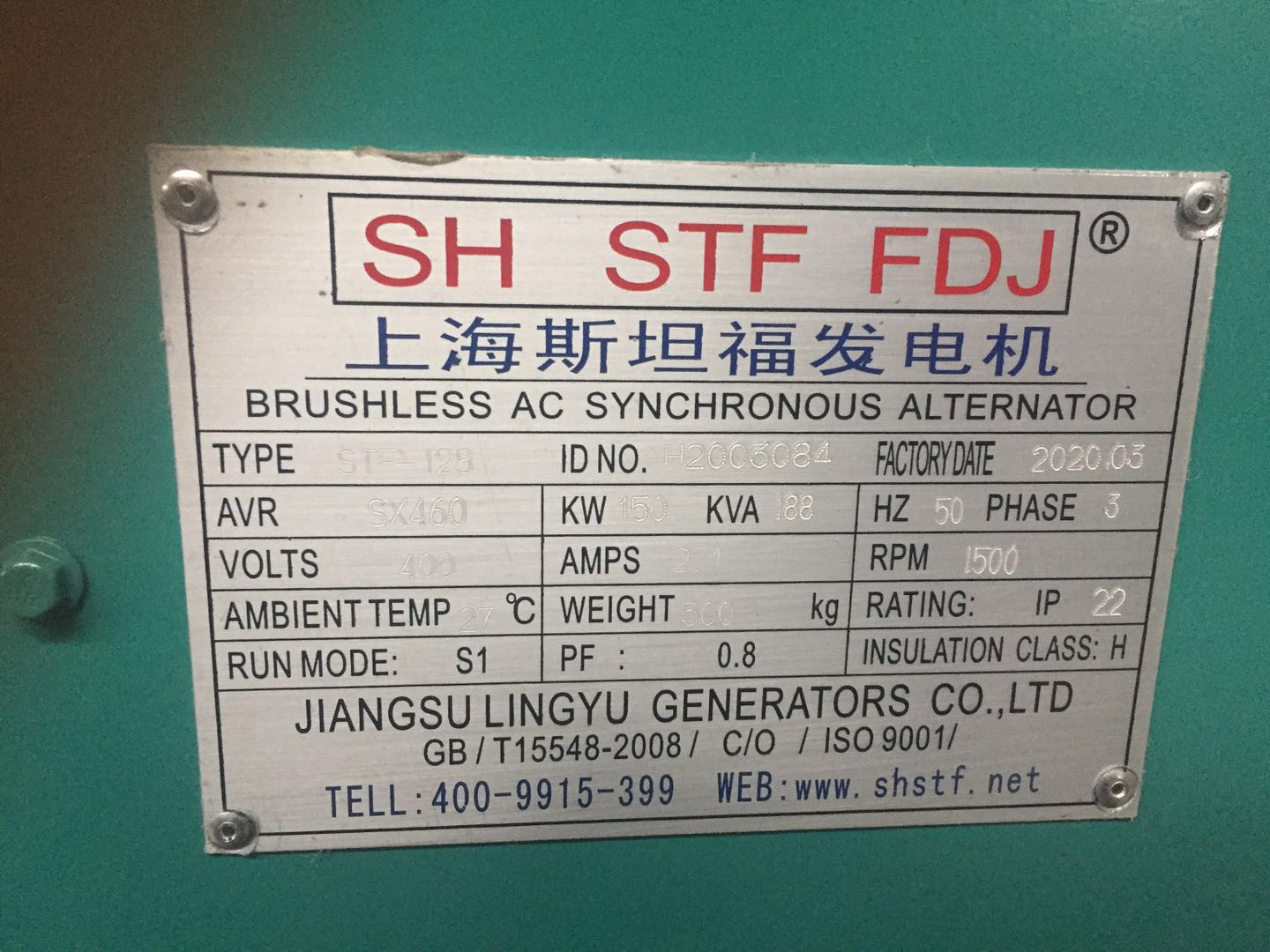

3. Generator model: SF-120-4
4. Frequency: 50Hz
5. Output voltage: 400/230V
6. Speed: 1500rpm
7. Power factor: COSΦ=0.8 (lagging)
8. Unit fuel consumption (g/Kw*h): 30
9. Output current (A): 216
10. Number of phases/wires: three-phase four-wire
11. Noise LP7m: 105db
12. Overall size (mm): 2470*930*1450
13. Weight: 1620Kg

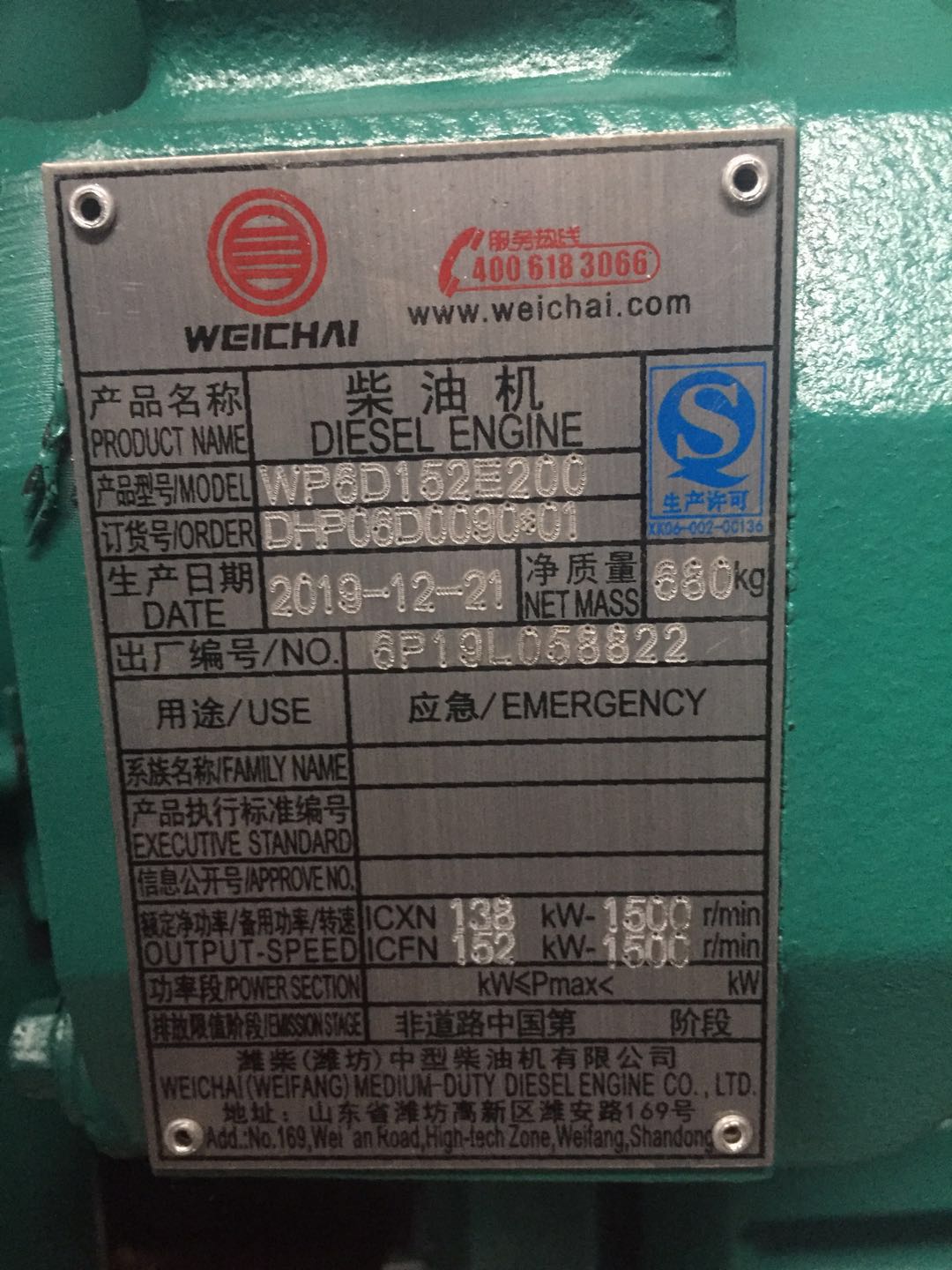

2. Technical parameters of Weichai Deutz WP6D152E200 diesel engine (120KW)
1. Diesel engine model: WP6D152E200
2. Standby power: 152KW
3. Manufacturer: Weichai Power Co., Ltd.
4. Cooling start: Closed water cooling
5. Starting method: 24V DC start
6. Number of cylinders: 6
7. Cylinder diameter/stroke: 105/130mm
8. Oil capacity: 18L
9. Coolant capacity: 8L
10. Fuel supply method: direct injection
11. Intake method: supercharging
12. Cylinder arrangement: in-line
13. Intercooling method: water intercooling
14. Fuel model: domestic 0# light diesel
15. Speed regulation method: mechanical/electronic speed regulation
16. Oil model: WD/40

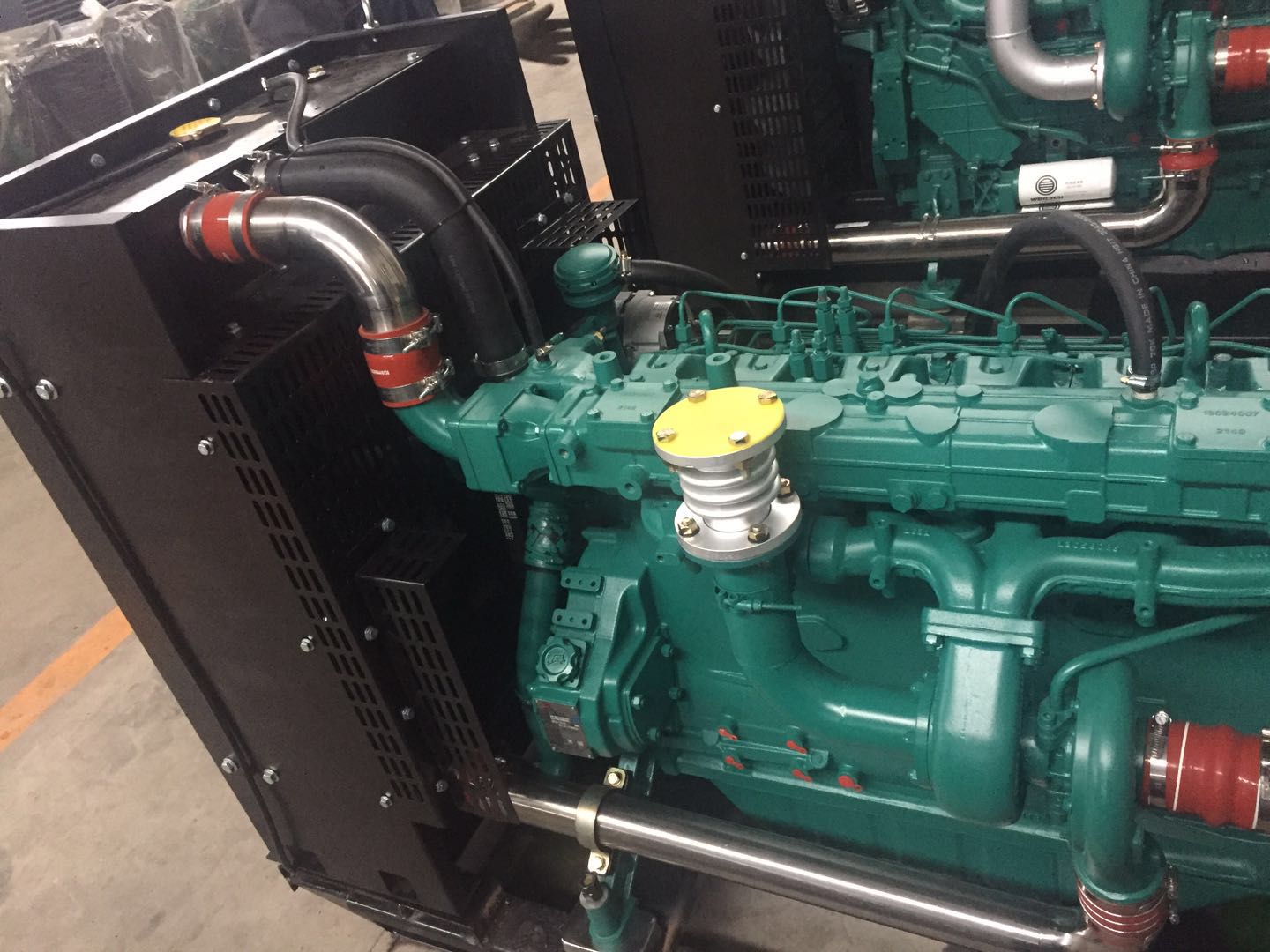

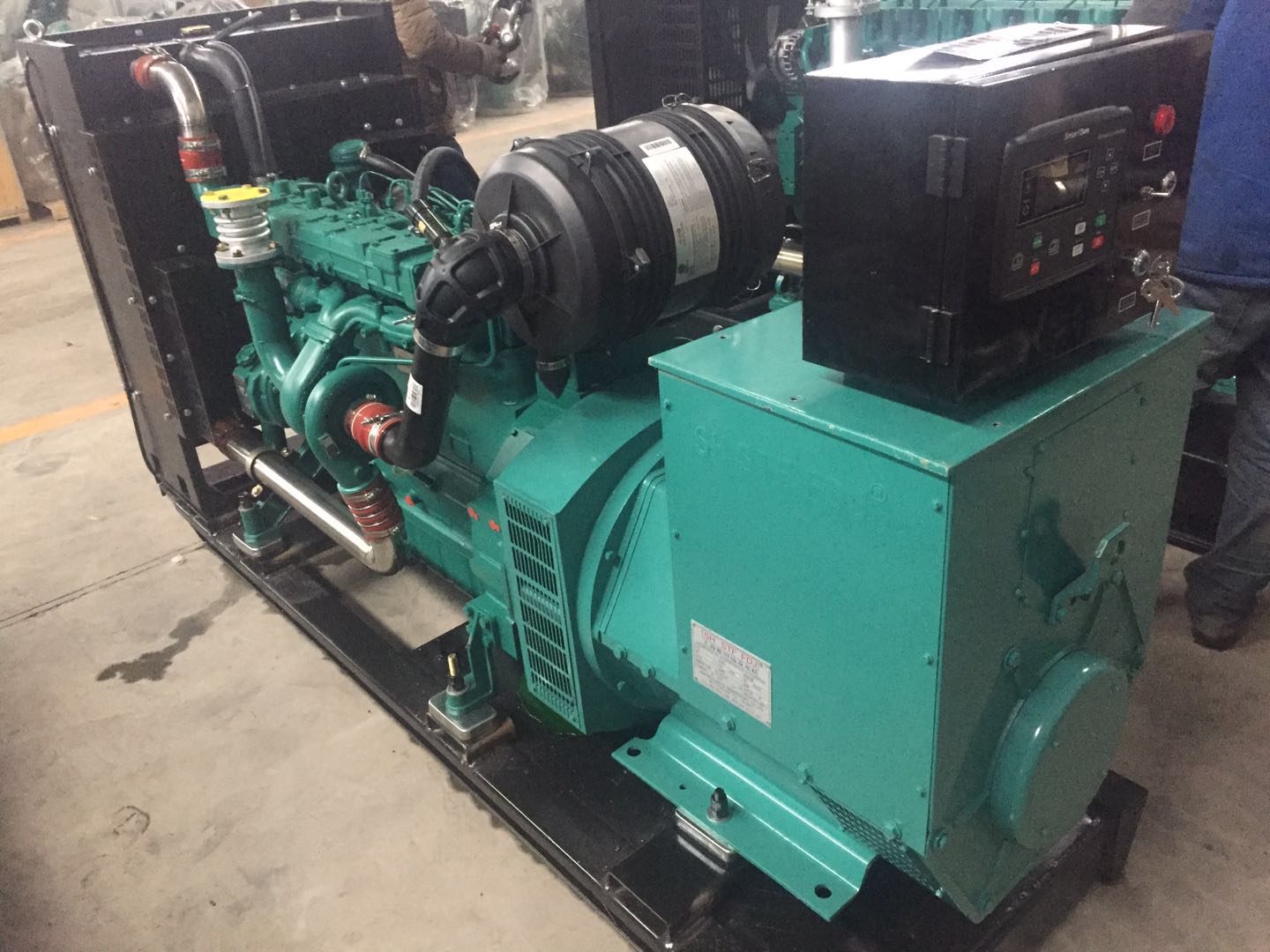

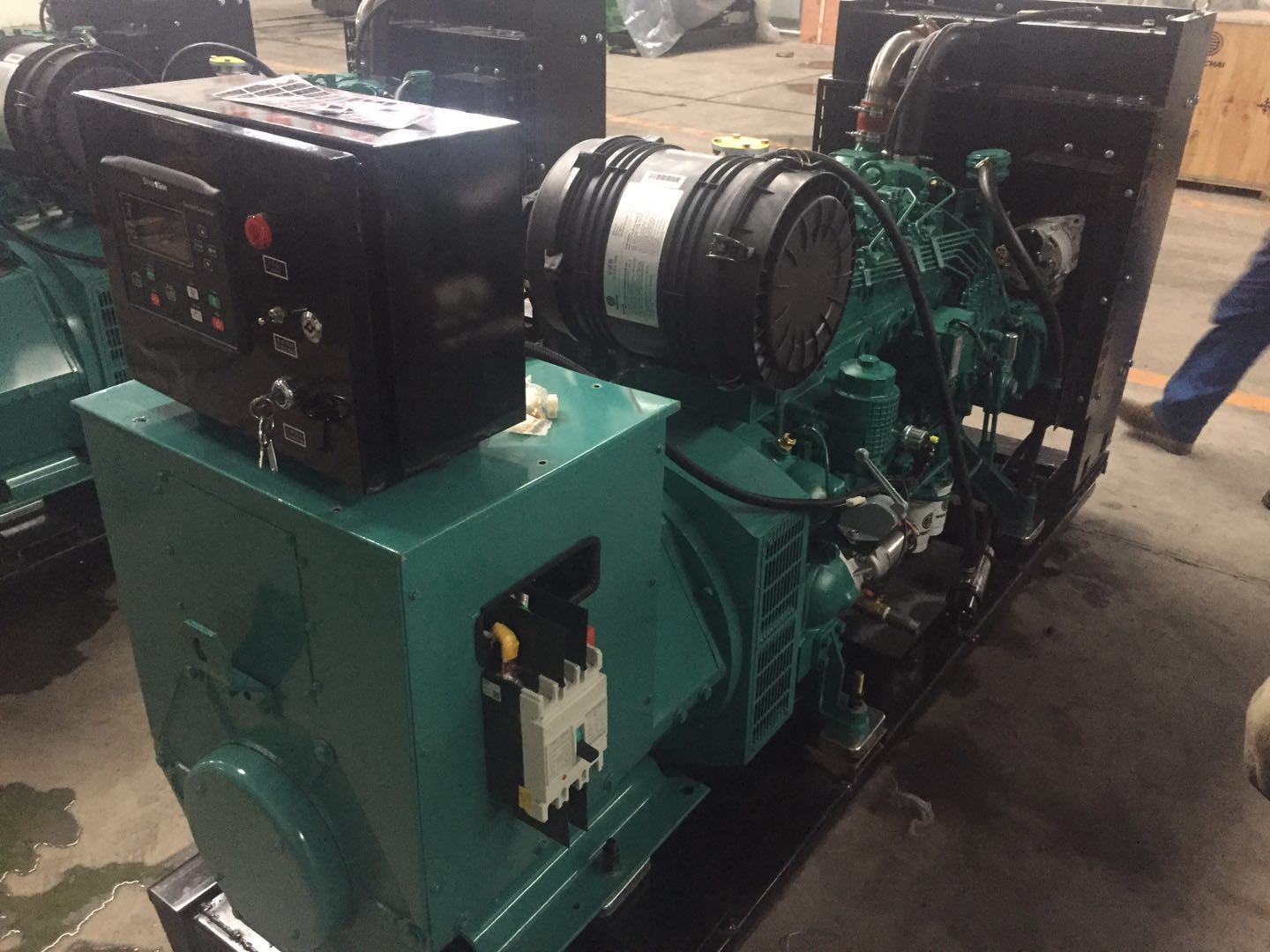

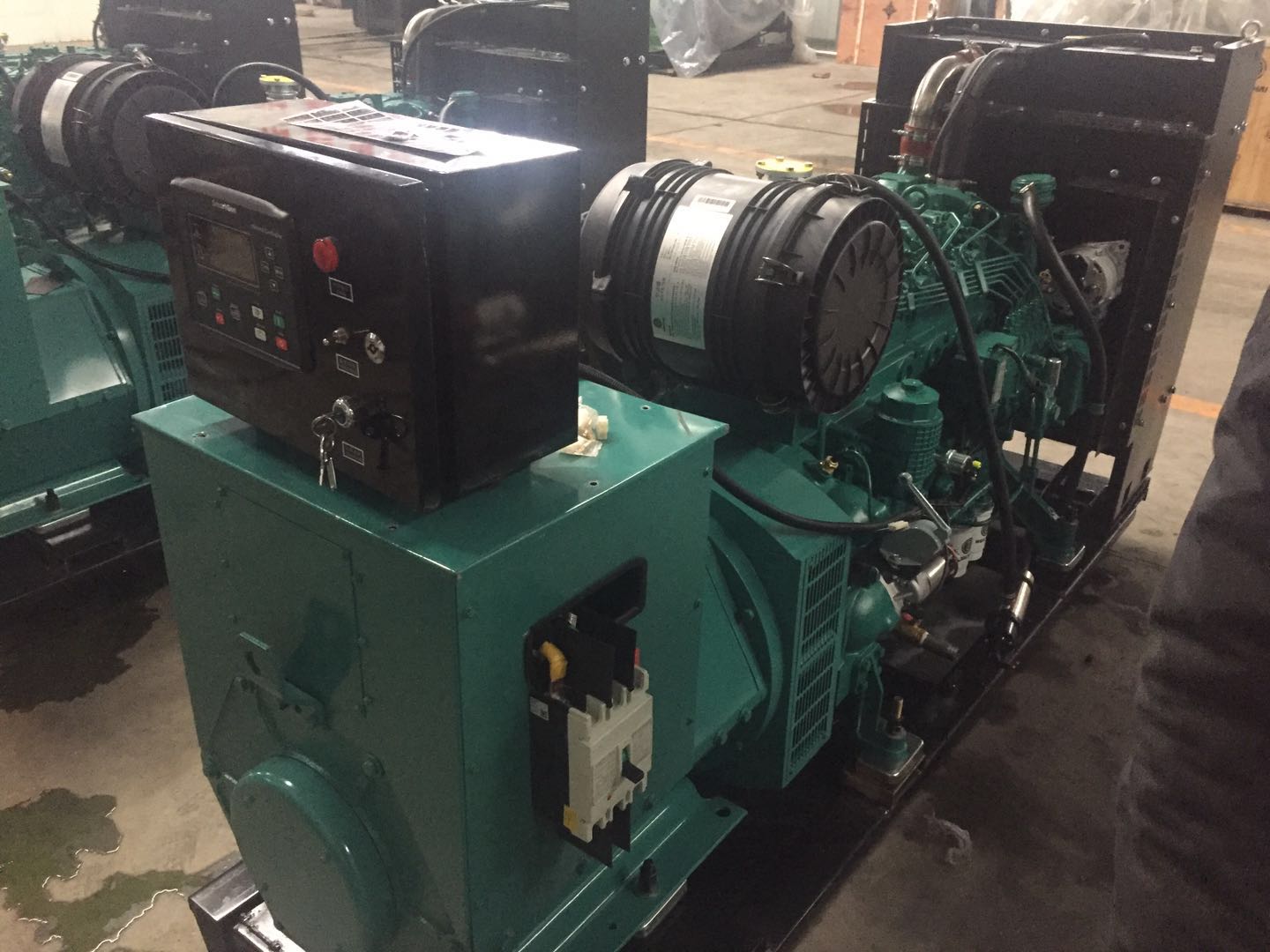

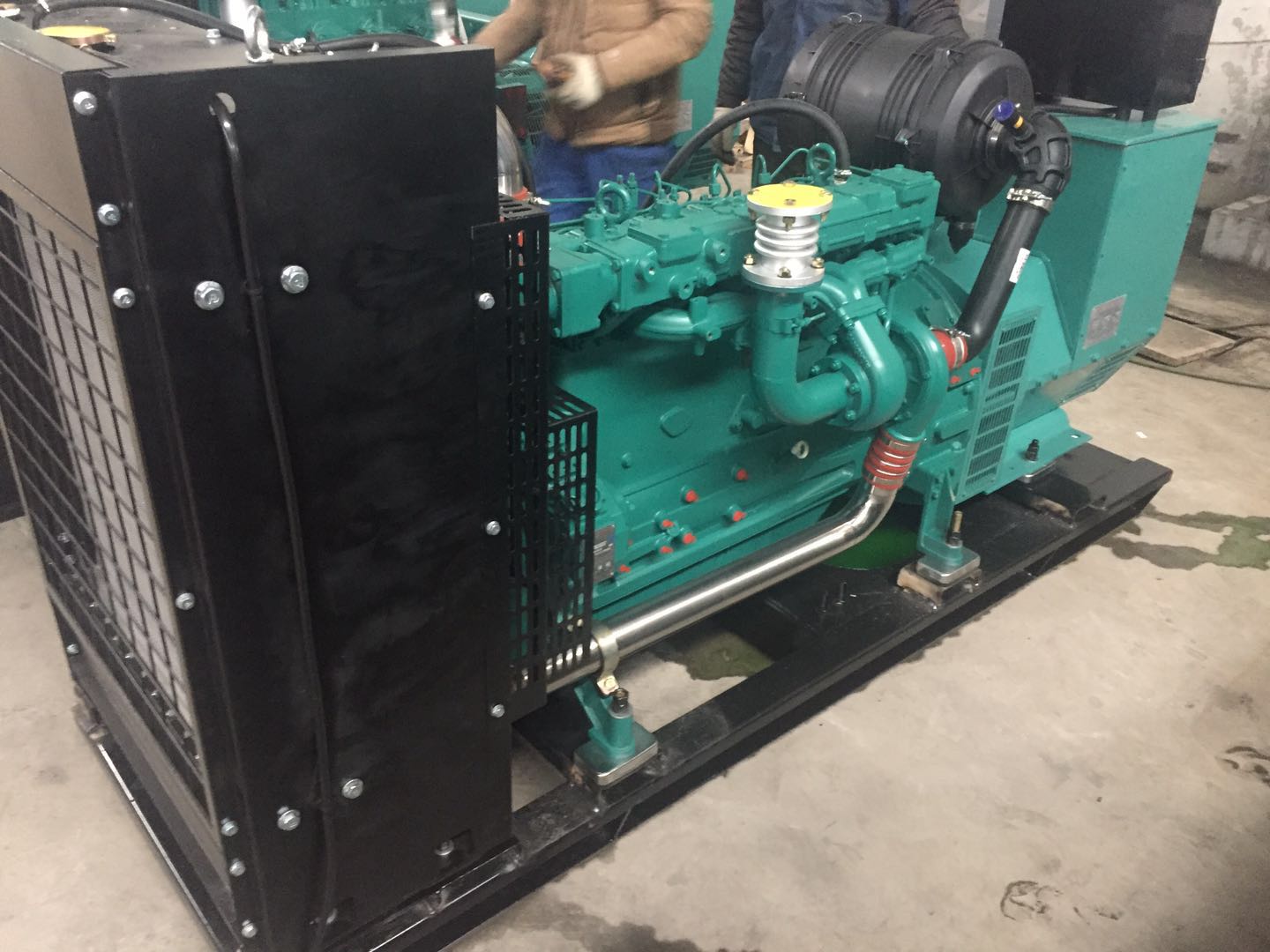

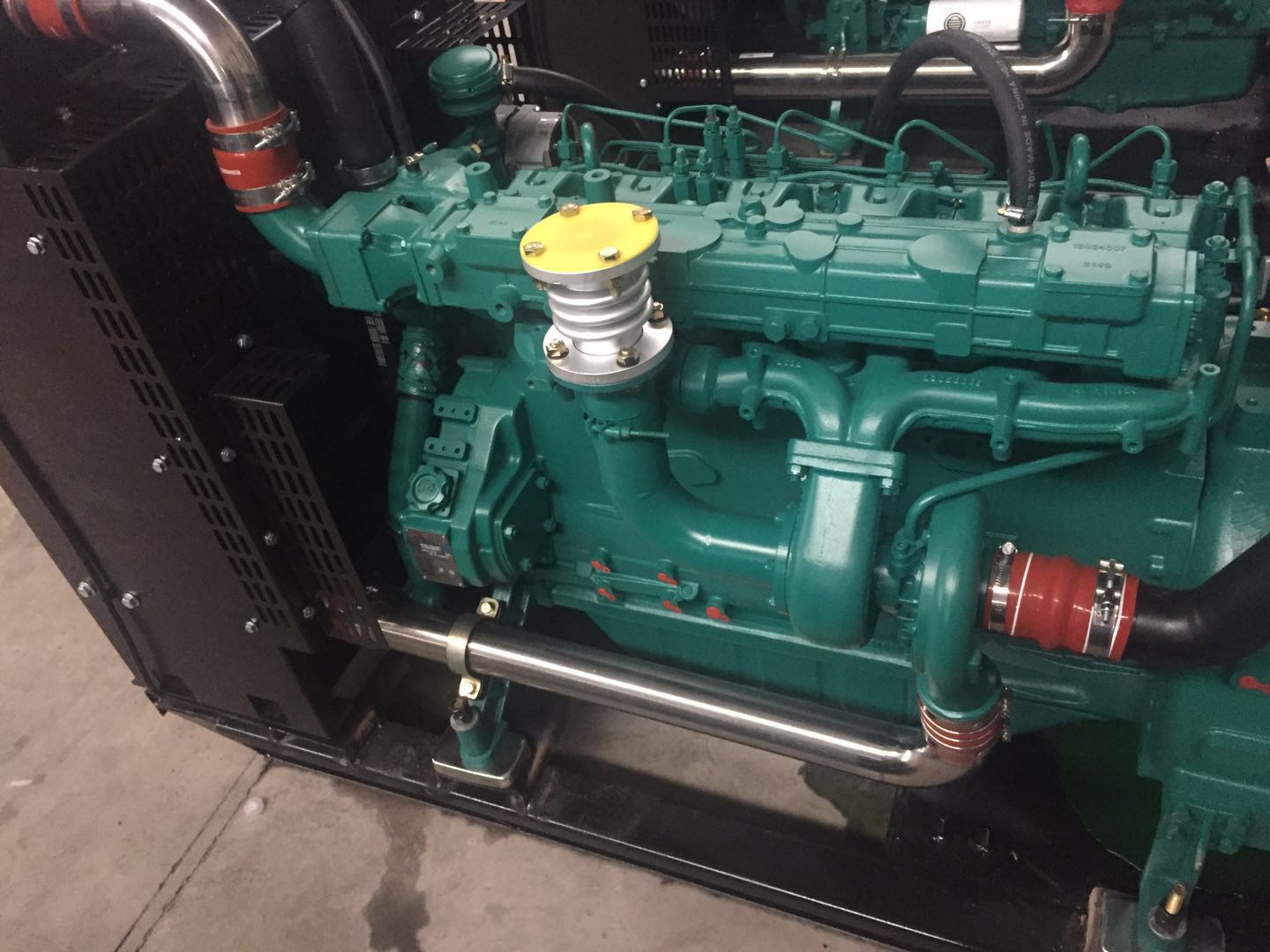

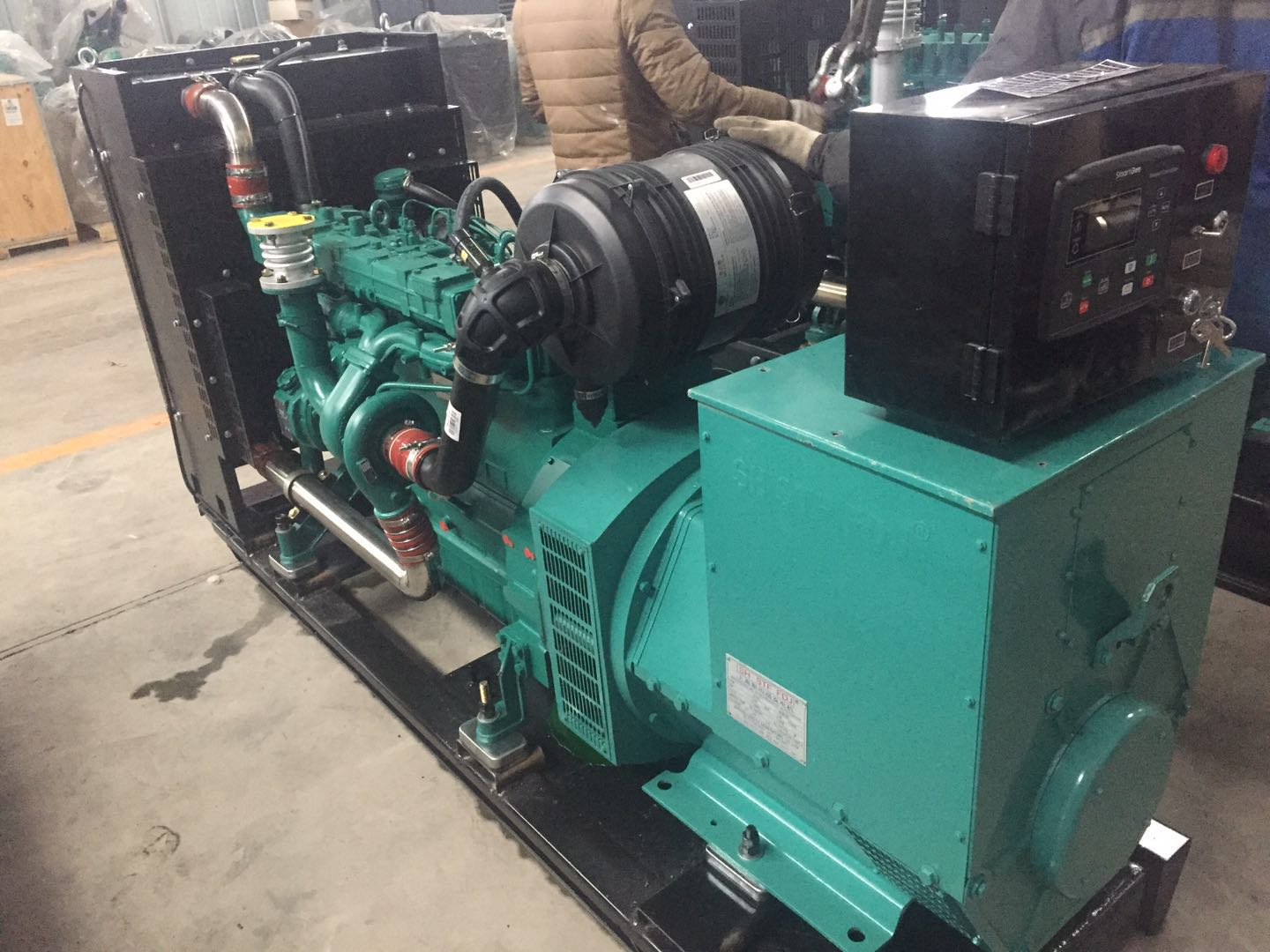

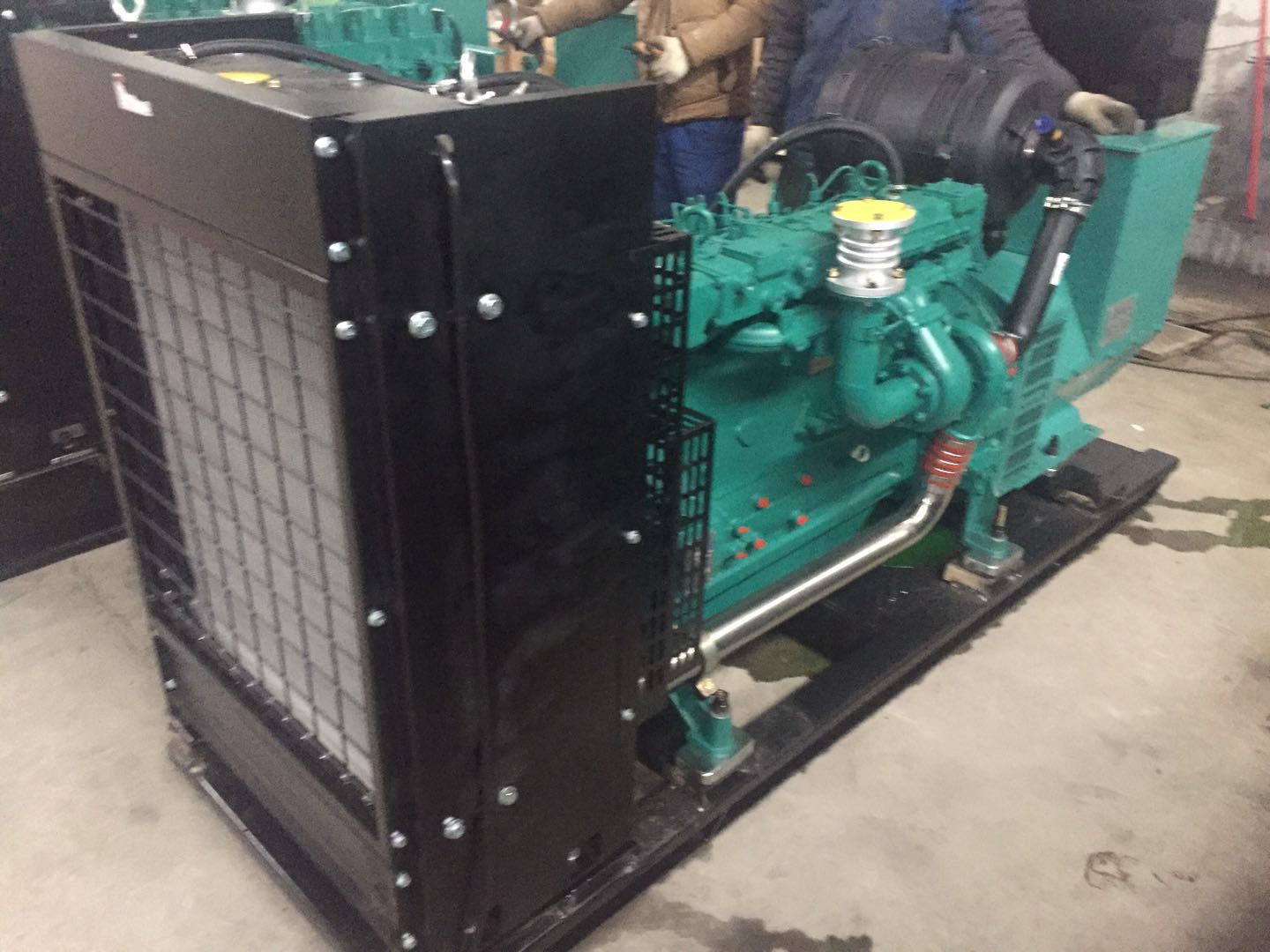

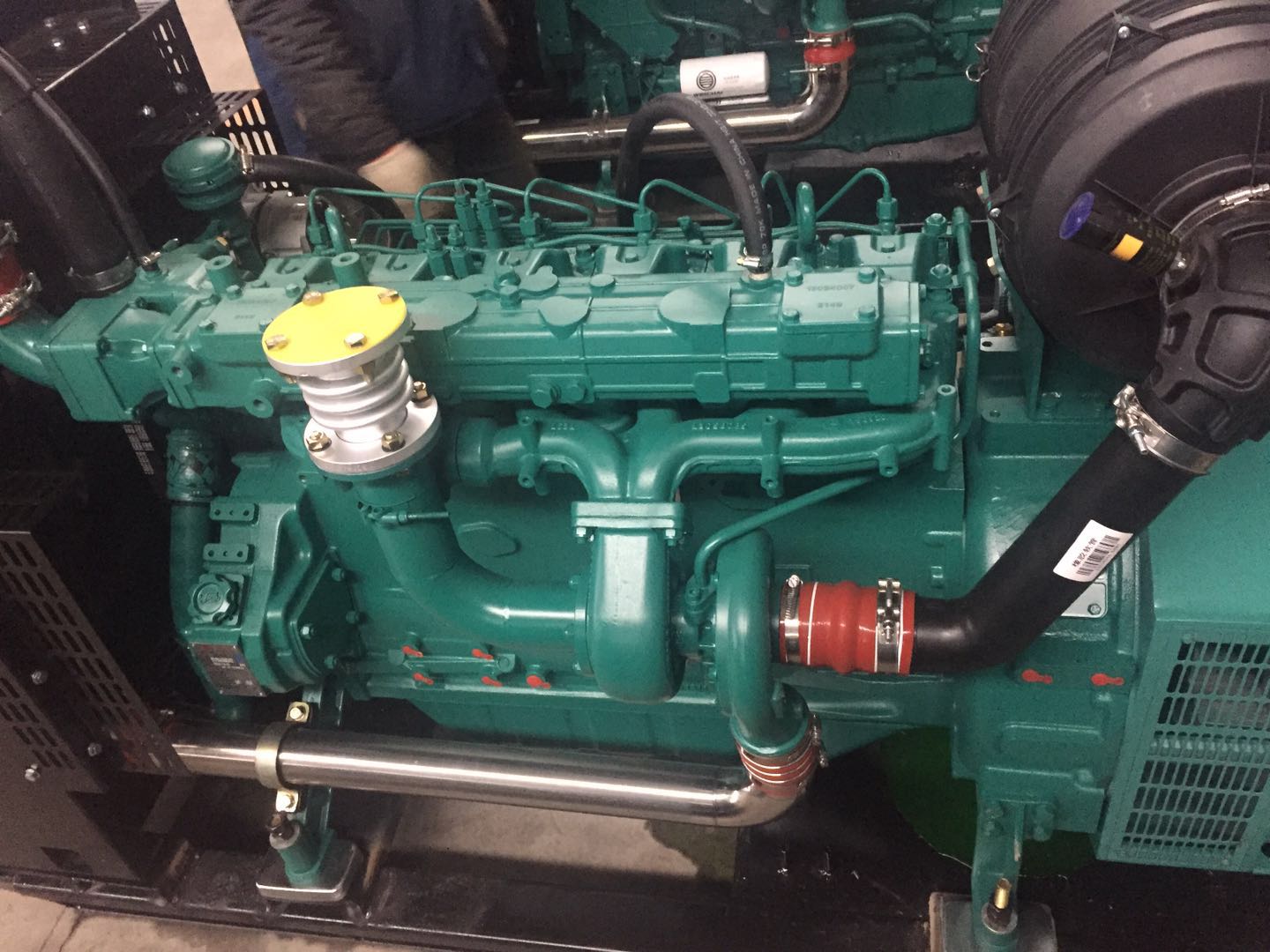

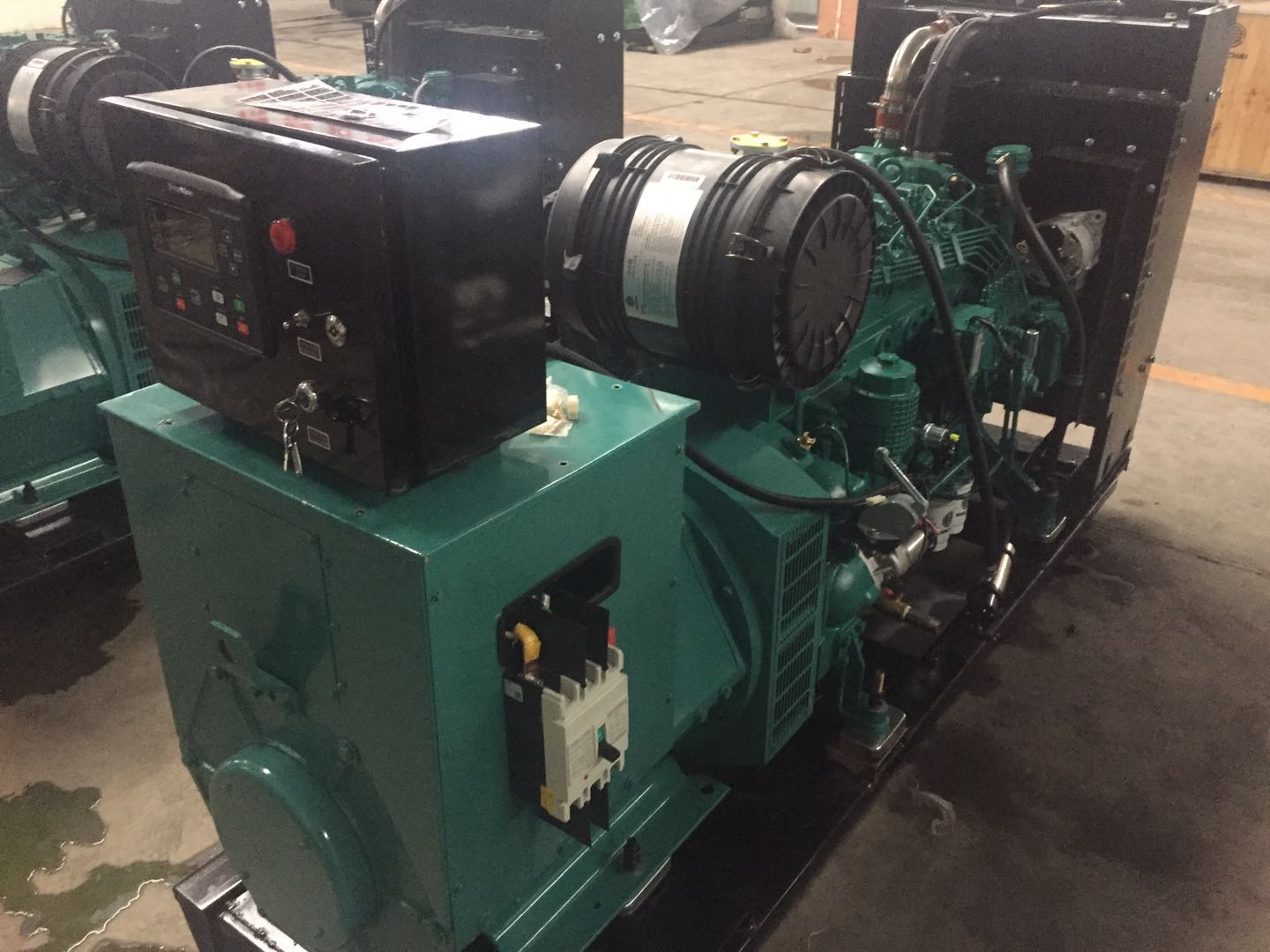

120KW Weichai diesel generator set equipment pictures:
